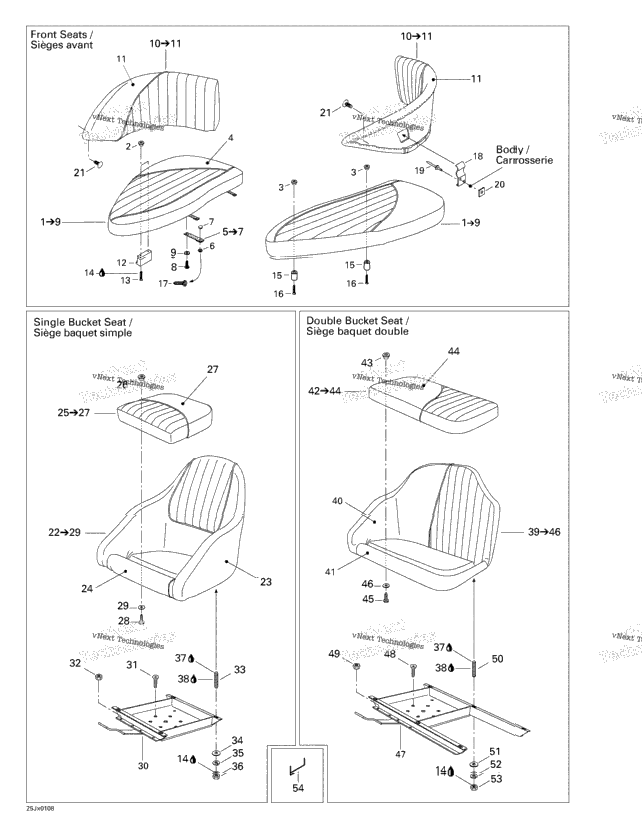

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 204611322 | Front Seat Cushion Ass'y (Port Side) Includes 1 - 9. | ||
| 204611323 | Front Seat Cushion Ass'y (Starboard) | ||
| 4 | 204100021 | TEE-NUT 1/4?- 20 | 4 |
| 4 | 204100044 | TEE-NUT #10-32 | 4 |
| 204611424 | Front Seat Cushion Cover (Port Side) | ||
| 204611428 | Front Seat Cushion Cover (Starboard) | ||
| 204611416 | Retaining Strap (185) Includes 5 - 7. | ||
| 4 | 204000083 | SNAP BASE | 4 |
| 4 | 204611609 | SNAP COVER | 4 |
| 4 | 204100054 | SCREW 8 X 3/4? | 4 |
| 4 | 211200019 | FLAT WASHER | 4 |
| 204611324 | Front Seat Backrest Ass'y (Port Side) (1 Includes 10 - 11. | ||
| 204611325 | Front Seat Backrest Ass'y (Starboard) (1 | ||
| 204611434 | Front Seat Backrest Cover (Port Side) | ||
| 204611440 | Front Seat Backrest Cover (Starboard) | ||
| 204611598 | Seat Base Catch | ||
| 4 | 204100039 | SCREW 1/4?-20 X 2? | 4 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 204560039 | Rubber Bumper | ||
| 204100075 | Screw 10-32 X 1-1/4” | ||
| 204100046 | Threaded Stud 5/8” | ||
| 6 | 204610288 | Seat Support | 6 |
| 12 | 293150043 | Pop Rivet 3/16" | 12 |
| XXXX | Not Available As Spare Part - Insert | ||
| 2 | 293730014 | Black Dart | 2 |
| 204611452 | Single Bucket Seat Ass'y (185) Includes 22 - 29. | ||
| 204611588 | Seat Shell Cover | ||
| 204611589 | Seat Shell Front Cover | ||
| 204611590 | Single Bucket Seat Cushion (185) Includes 25 - 27. | ||
| 204611624 | Single Bucket Seat Cushion Cover | ||
| 4 | 204100014 | HEX. SCREW 1/4-20 X 2-1/2 | 4 |
| 4 | 234082600 | Flat Washer 8 mm, Stainless | 4 |
| 204611603 | Single Seat Swivel Base | ||
| 12 | 208463560 | PHILLIPS SCREW M6 X 35 | 12 |
| 8 | 212000005 | NUT-STOP ELASTIC MS-17830 | 8 |
| 8 | 204100077 | THREADED STUD 1/4-20 X 1-1/4 | 8 |
| 8 | 234061600 | Stainless Flat Washer M6 | 8 |
| 8 | 234161601 | Lock Washer Helical M6 | 8 |
| 211100026 | HEX. NUT 1/4 | ||
| 1 | 219704458 | Was 293800041 Loctite Primer 7649 | 1 |
| 1 | 293800005 | Loctite 271, 10 ml | 1 |
| 204611626 | Double Bucket Seat Ass'y (Port Side) Includes 39 - 46. | ||
| 204611627 | Double Bucket Seat Ass'y (Starboard) | ||
| 204611398 | Double Bucket Seat Shell Cover (Port Sid | ||
| 204611406 | Double Bucket Seat Shell Cover (Starboar | ||
| 204611399 | Seat shell Inside Cover | ||
| 204611332 | Double Bucket Seat Cushion (Port Side) Includes 42 - 44. | ||
| 204611331 | Double Bucket Seat Cushion (Starboard) | ||
| 204611404 | Double Bucket Seat Cushion Cover (Port S | ||
| 204611408 | Double Bucket Seat Cushion Cover (Starbo | ||
| 204611601 | Double Bucket Seat Swivel Base (Port Sid | ||
| 204611602 | Double Bucket Seat Swivel Base (Starboar | ||
| 12 | 212000005 | NUT-STOP ELASTIC MS-17830 | 12 |
| 12 | 204100077 | THREADED STUD 1/4-20 X 1-1/4 | 12 |
| 12 | 211200019 | FLAT WASHER | 12 |
| 12 | 234161601 | Lock Washer Helical M6 | 12 |
| 293730025 | Staple 1/4" |
