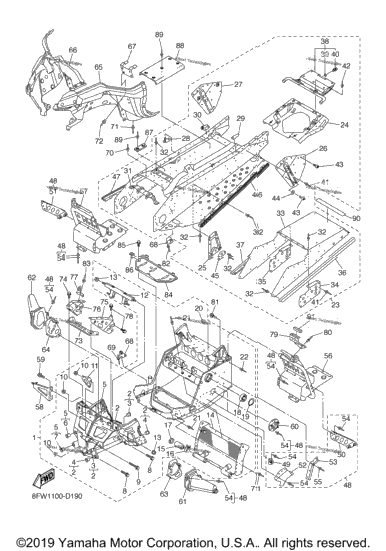

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 8EP-21940-01-00 | Front Frame Comp | 1 |
| 1 | 8FA-W2197-00-00 | . .Bulkhead | 1 |
| 2 | 90381-15001-00 | . . ..Bush, Solid | 2 |
| 2 | 90381-16001-00 | . . Bush, Solid | 2 |
| 1 | 8FA-W2198-00-00 | . .Bulkhead 2 | 1 |
| 3 | 95827-08060-00 | . .Bolt, Flange | 3 |
| 1 | 95827-08065-00 | . .Bolt, Flange | 1 |
| 4 | 95607-08200-00 | . Nut, Self-Locking | 4 |
| 1 | 8FA-2128A-00-00 | . Bracket, Regulator | 1 |
| 1 | 8FG-21947-00-00 | . .Bracket, Steering 1 | 1 |
| 4 | 95607-10200-00 | . Nut, U Flange | 4 |
| 8EP-12440-00-00 | . Heat Exchanger Assy | ||
| 1 | 8FA-12551-00-00 | . .Hose 7 | 1 |
| 1 | 90467-28046-00 | . Clip | 1 |
| 1 | 90450-35001-00 | . .Hose Clamp Assy | 1 |
| 1 | 93306-20650-00 | . Bearing | 1 |
| 1 | 99009-62500-00 | . Circlip | 1 |
| 1 | 95607-08200-00 | . Nut, Self-Locking | 1 |
| 61 | 90267-47195-00 | . Rivet, Blind(4.7X16.4 Yellow) | 61 |
| 6 | 90267-48016-00 | . Rivet, Blind (4.8X16.4 Yellow | 6 |
| 8FW-21950-00-00 | Rear Frame Comp | ||
| 1 | 8FA-W2199-01-00 | . .Reineforcement, Frame Rear 1 | 1 |
| 2 | 8FK-21943-00-00 | . .Bracket, Main Track 1 | 2 |
| 1 | 8FK-21944-00-00 | . . Bracket, Rr. Track Suspensi | 1 |
| 1 | 8FK-21954-00-00 | . . Bracket, Rr. Track Suspensi | 1 |
| 2 | 8CR-2194N-00-00 | . .Bracket, Fuel Tank 1 | 2 |
| 1 | 8FA-2194X-00-00 | . .Bracket 1 | 1 |
| 1 | 8FA-2195X-00-00 | . .Bracket 2 | 1 |
| 1 | 8FA-2194H-01-00 | . Protector, Muffler | 1 |
| 1 | 90267-47195-00 | . . Rivet, Blind(4.7X16.4 Yello QTY: 130 | 1 |
| 1 | 8FW-21916-00-00 | . .Panel, Sub Frame 5 | 1 |
| 1 | 8EP-21963-00-00 | . .Patch 3 | 1 |
| 1 | 8EP-21964-00-00 | . .Patch 4 | 1 |
| 1 | 8FK-2111J-00-00 | . .Member, Side 1 | 1 |
| 1 | 8FK-2111K-00-00 | . .Member, Side 2 | 1 |
| 8FW-1241A-00-00 | . .Heat Exchanger Assy 4 | ||
| 1 | 90210-06006-00 | . . Washer, Seal | 1 |
| 1 | 95817-06012-00 | . . Bolt, Flange | 1 |
| 12 | 90267-47197-00 | . .Rivet, Blind(4.7X19.5 Silver | 12 |
| 2 | 90267-48095-00 | . Rivet,Blind (4.8X12.6 Silver) | 2 |
| 4 | 92017-10020-00 | . Bolt, Button Head | 4 |
| 2 | 90201-104A7-00 | . Washer, Plate | 2 |
| 2 | 8FK-21953-00-00 | . ..Bracket, Main Track 2 | 2 |
| 1 | 8FU-21926-00-00 | . Reinforcement, Footrest 1 | 1 |
| 1 | 8FU-21936-00-00 | . Reinforcement, Footrest 2 | 1 |
| 8FK-W2195-00-00 | Frame Connection Kit | ||
| 2 | 8CR-21939-01-00 | . .Bracket, Chain Housing | 2 |
| 1 | 8FU-2196M-00-00 | . .Bracket, 5 | 1 |
| 1 | 8FU-2197M-00-00 | . .Bracket, 6 | 1 |
| 1 | 8FU-2198G-00-00 | . .Cover 2 | 1 |
| 1 | 8FA-21999-00-00 | . . .Clamp, Wire Harness | 1 |
| 64 | 90267-47195-00 | . Rivet, Blind(4.7X16.4 Yellow) | 64 |
| 4 | 90267-48018-00 | . Rivet, Blind (4.8X18.6 Black) | 4 |
| 1 | 8FU-21960-00-00 | Footrest Comp. 1 | 1 |
| 1 | 8FU-21970-00-00 | Footrest Comp. 2 | 1 |
| 1 | 8FA-2193E-00-00 | Bracket, Oil Tank 1 | 1 |
| 2 | 95827-08014-00 | Bolt, Flange | 2 |
| 1 | 8EK-21920-01-00 | Housing, Reinf Sub-Assy(L.H) | 1 |
| 1 | 8FU-2198F-00-00 | Cover 1 | 1 |
| 1 | 8FU-2198J-00-00 | Cover 3 | 1 |
| 1 | 8FU-2195E-00-00 | Plate, Strg Bracket 1 | 1 |
| 1 | 8FU-2195F-00-00 | Plate, Strg Bracket 2 | 1 |
| 8EP-2196A-00-00 | Frame Under 1 RX10MK | ||
| 1 | 8EP-2196A-20-00 | Frame Under 1 RX10MSK | 1 |
| 8EP-2196E-00-00 | Frame, Under 2 RX10MK | ||
| 1 | 8EP-2196E-20-00 | Frame, Under 2 RX10MSK | 1 |
| 1 | 8FA-21972-00-00 | Bracket, Guard Fitting | 1 |
| 6 | 8FA-2196F-00-00 | Bracket 3 | 6 |
| 8 | 90267-48083-00 | Rivet,Blind (4.8X15.2 Silver) | 8 |
| 12 | 90267-48169-00 | .Rivet, Blind (4.8X14.1 Black) | 12 |
| 14 | 90267-48018-00 | Rivet, Blind (4.8X18.6 Black) | 14 |
| 4 | 90267-47200-00 | Rivet, Blind (4.7X19.5 Black) RX10MK | 4 |
| 4 | 90267-48193-00 | .Rivet,Blind (4.7X19.5 Silver) RX10MSK | 4 |
| 1 | 8FA-77512-00-00 | Bumper, Front 2 | 1 |
| 4 | 95827-06012-00 | Bolt, Flange | 4 |
| 1 | 8FU-21949-00-00 | Bracket, Front | 1 |
| 1 | 8FU-21959-00-00 | Bracket, Front Bumper | 1 |
| 2 | 8FA-77125-00-00 | Stay 1 | 2 |
| 6 | 95827-08016-00 | Bolt, Flange | 6 |
| 1 | 8FA-21973-00-00 | Hook | 1 |
| 3 | 90267-47195-00 | Rivet, Blind(4.7X16.4 Yellow) | 3 |
| 2 | 95827-08020-00 | Bolt, Flange | 2 |
| 4 | 90267-48095-00 | Rivet,Blind (4.8X12.6 Silver) | 4 |
| 4 | 90267-47195-00 | Rivet, Blind(4.7X16.4 Yellow) | 4 |
| 8FA-2197E-01-00 | Protector, Frame Fr | ||
| 5 | 90109-065F3-00 | Bolt | 5 |
| 5 | 90183-06053-00 | Nut, Spring | 5 |
| 4 | 8FA-21998-00-00 | Spacer | 4 |
| 1 | 8FG-23892-00-00 | Shield, Heat | 1 |
| 13 | 90267-48059-00 | .Rivet, Blind (4.8X12.3) | 13 |
| 1 | 88X-77762-10-00 | Label, Warning 2 | 1 |
| 1 | 8CR-77319-00-00 | Damper 1 | 1 |
