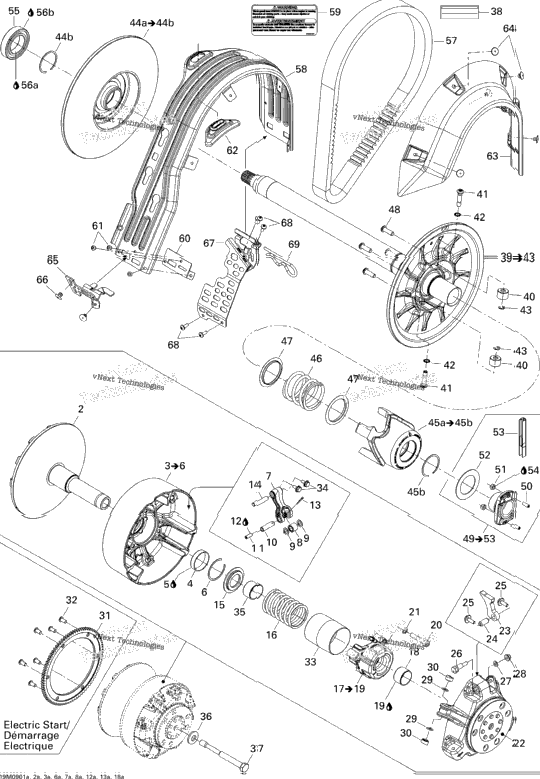

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 417222937 | Fixed Flange Ass'y | 1 |
| 1 | 417222181 | Sliding Flange Ass'y Includes 3 to 6 | 1 |
| 1 | 417222758 | Bushing | 1 |
| 293800118 | ADHESIVE LOCTITE 680 | ||
| 1 | 293370037 | Circlip | 1 |
| 3 | 417222671 | Lever | 3 |
| 3 | 417222947 | Roller | 3 |
| 6 | 417004302 | Stopper Washer | 6 |
| 3 | 417004308 | Pin | 3 |
| XXX | Not Available As Spare Parts | ||
| 3 | 732958001 | Cotter Pin | 3 |
| 3 | 417009202 | Lever Axle | 3 |
| 1 | 417222312 | Spring Seat | 1 |
| 1 | 414689400 | Spring (Blue/Blue) | 1 |
| 1 | 417007500 | Spring Cover Ass'y Includes 17 to 19 | 1 |
| 1 | 417009204 | Bushing | 1 |
| 1 | 413703100 | Loctite 609, 10 ml | 1 |
| 3 | 205084044 | Socket Head Screw M8 X 1.25 X 40 | 3 |
| 3 | 250200009 | Lock Washer 8 mm | 3 |
| 417222213 | Governor Cup | ||
| 3 | 417222515 | Ramp 412 | 3 |
| 3 | 250400009 | Rolled Pin 10 X 22 | 3 |
| 6 | 250000059 | Hex. Flange Screw M6 X 18 | 6 |
| 3 | 417222955 | CALIBRATION SCREW | 3 |
| 3 | 417005600 | Washer | 3 |
| 3 | 233061414 | Hex. Flange Nut M6 | 3 |
| 6 | 732401030 | O-Ring | 6 |
| 6 | 417222992 | Slider Shoe | 6 |
| 1 | 417223042 | Ring Gear | 1 |
| 6 | 250000243 | Torx Screw M8 X 16, Scotch Grip | 6 |
| 1 | 417009205 | Guard | 1 |
| 6 | 250000362 | Hex. Flange Screw M6 X 12 | 6 |
| 1 | 250200006 | Spring Washer 14 mm | 1 |
| 1 | 417120000 | Drive Pulley Bolt | 1 |
| 1 | 516003708 | DECAL, NOTICE, DRIVE PULLEY BOLT | 1 |
| 417127075 | Fixe Flange Ass'y Includes 39 to 43 | ||
| 2 | 417127016 | Pulley Roller | 2 |
| 2 | 417127078 | Stud | 2 |
| 2 | 250200009 | Lock Washer 8 mm | 2 |
| 2 | 414753500 | Circlip | 2 |
| 1 | 417126955 | Sliding Flange Ass'y Includes 44a to 44b | 1 |
| 1 | 293370049 | Circlip | 1 |
| 1 | 417127083 | Cam Ass'y Includes 45a to 44b | 1 |
| 1 | 417127137 | Green, Spring | 1 |
| 1 | 417127116 | Swivel Abutment | 1 |
| 4 | 250000283 | Torx Screw M8 X 25, Scotch Grip | 4 |
| 415129409 | ADJUSTMENT KIT Includes 49 to 53 | ||
| 2 | 206261690 | Socket Set Screw M6 X 16 | 2 |
| 2 | 232061414 | Hex. Nut M6 | 2 |
| 1 | 417127155 | Washer | 1 |
| 1 | 529035501 | Spacing Tool | 1 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 1 | 504152574 | Ball Bearing | 1 |
| 219704461 | LUBRICANT LOCTITE LB 8150 236ML | ||
| 1 | 417300383 | Drive Belt | 1 |
| 1 | 417300357 | Belt Guard | 1 |
| 1 | 516002670 | WARNING DECAL, SECURITY BELT GUARD | 1 |
| 1 | 417300380 | Reinforcement | 1 |
| 3 | 390909200 | Avex Rivet | 3 |
| 1 | 417300381 | Guide | 1 |
| 1 | 417300356 | Side Protector | 1 |
| 5 | 293150103 | Pop Rivet 3/16" | 5 |
| 1 | 417300360 | FRONT BELT GUARD BRACKET | 1 |
| 2 | 293150104 | Pop Rivet 3/16" | 2 |
| 1 | 417300375 | Belt Guard Bracket | 1 |
| 4 | 250000145 | Torx Screw M5 X 14 | 4 |
| 1 | 114045200 | Hair Pin | 1 |
