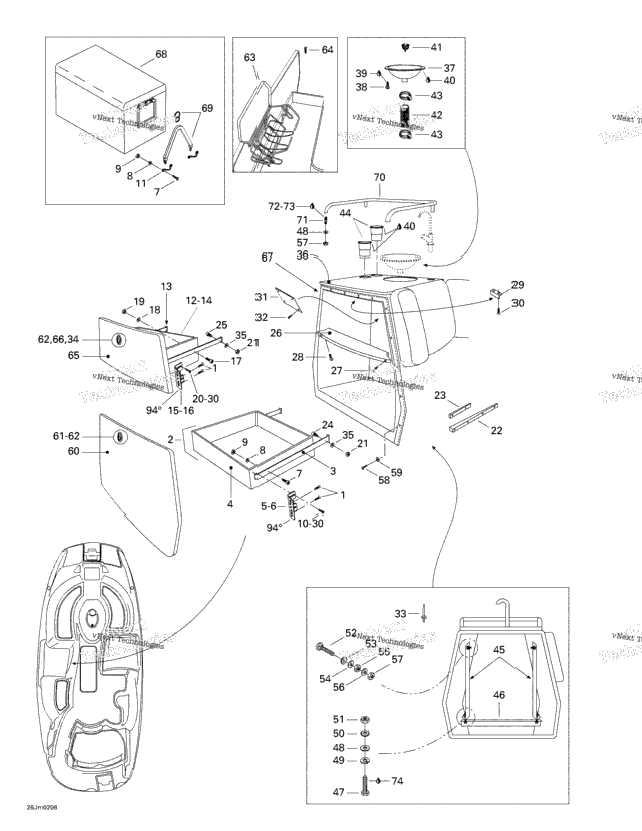

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 204100030 | Phillips Screw #8 X 1/2” | ||
| 204070611 | Ice Chest Drawer Ass'y Includes 2 - 11. | ||
| 204070612 | Drawer Slides, Long | ||
| 204070964 | Drawer, Bottom | ||
| 1 | 204070725 | RH DRAWER BRACKET, 94DEG | 1 |
| 1 | 204070726 | LH DRAWER BRACKET, 80DEG | 1 |
| 16 | 205441660 | Socket Head Screw M4 X 16 | 16 |
| 16 | 234042600 | Flat Washer 4 mm, Stainless | 16 |
| 16 | 232541600 | Elastic Stop Nut M4 | 16 |
| 209641360 | TAPPING PHILLIPS SCREW M4.2 X 13 | ||
| 204070234 | Strap Tie | ||
| 204070618 | Upper Drawer Ass'y, Galley Includes 12 - 20. | ||
| 2 | 204070613 | DRAWER SLIDES, SHORT | 2 |
| 1 | 204070619 | DRAWER, BOTTOM | 1 |
| 4 | 205441660 | Socket Head Screw M4 X 16 | 4 |
| 4 | 234042600 | Flat Washer 4 mm, Stainless | 4 |
| 4 | 232541600 | Elastic Stop Nut M4 | 4 |
| 18 | 232541600 | Elastic Stop Nut M4 | 18 |
| 2 | 204070727 | SLIDE SHIM, LONG | 2 |
| 2 | 204070728 | SLIDE SHIM, SHORT | 2 |
| 205443560 | SOCKET HEAD SCREW M4 X 35 | ||
| 8 | 205442560 | Socket Screw M4 X 25 | 8 |
| 1 | 204070965 | LATCH SUPPORT | 1 |
| 2 | 208443060 | PHILLIPS SCREW M4 X 30 | 2 |
| 208444060 | Screw M4 x 40 | ||
| 1 | 204070060 | KEEPER | 1 |
| 1 | 204070916 | ACCESS COVER | 1 |
| 4 | 208642560 | PHILLIPS SCREW M4 X 25 | 4 |
| 293150065 | RIVET | ||
| 204070120 | LATCH, WHITE | ||
| 21 | 234042600 | Flat Washer 4 mm, Stainless | 21 |
| 204070624 | Counter Top | ||
| 204070625 | Sink | ||
| 3 | 241140060 | Screw K40 X 10 | 3 |
| 219704463 | ADHESIVE LOCTITE 414 28ML | ||
| 1 | 296000309 | Silicone Sealant 51388, 300 ml Loctite 29647, 300 ml | 1 |
| 204070626 | SINK STRAINER ASS?Y includes fitting | ||
| 204940033 | Bilgeflex Hose 5/8”, Meter | ||
| 2 | 293650016 | Tridon Clamp | 2 |
| 2 | 291000619 | CUP HOLDER | 2 |
| 2 | 204070971 | STRAP 565 MM | 2 |
| 204070972 | Angle 813 mm | ||
| 2 | 207185560 | HEX. SCREW M8 X 55 | 2 |
| 6 | 234082600 | Flat Washer 8 mm, Stainless | 6 |
| 2 | 234181601 | Lock Washer 8 mm, Stainless | 2 |
| 234381608 | TOOTHED LOCK WASHER | ||
| 2 | 232081600 | Hex. Nut M8 | 2 |
| 204000130 | Elevator Bolt | ||
| 2 | 211200054 | EXTERNAL TOOTH LOCK WASHER 10 MM | 2 |
| 2 | 204100006 | Washer | 2 |
| 211100026 | HEX. NUT 1/4 | ||
| 4 | 234062600 | Flat Washer M6, Stainless | 4 |
| 6 | 212000005 | NUT-STOP ELASTIC MS-17830 | 6 |
| 19 | 204100049 | PHILLIPS TAPPING SCREW #8 X 1 | 19 |
| 204100057 | FINITION WASHER | ||
| 204071154 | Front Drawer, Ice Chest | ||
| 1 | 204070951 | DOOR LATCH | 1 |
| 4 | 208651660 | SCREW M5 X 16 | 4 |
| 204070616 | Wastebasket | ||
| 3 | 209630960 | PHILLIPS SCREW M3.9 X 9.5 | 3 |
| 204071156 | Front Drawer, Galley | ||
| 204071152 | Cabinet, Galley | ||
| 204070617 | Ice Chest | ||
| 2 | 204070905 | ICE CHEST STRAP | 2 |
| 1 | 204070608 | COUNTERTOP RAIL ASS?Y Includes 70 - 71. | 1 |
| 4 | 204100033 | STUD 1/4?-20 X 2? | 4 |
| 1 | 293800005 | Loctite 271, 10 ml | 1 |
| 1 | 219704458 | Was 293800041 Loctite Primer 7649 | 1 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
