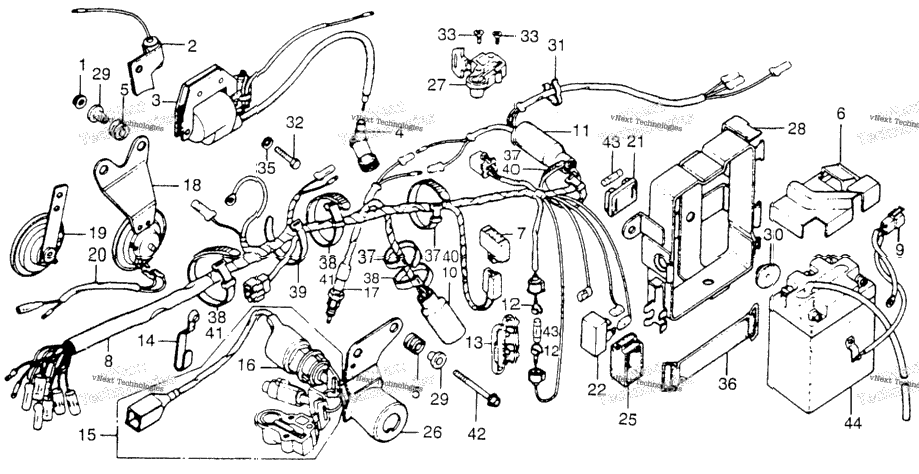

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 18362-720-000 | NUT, FLANGE (6MM) | 2 |
| 2 | 94050-06000 | NUT, FLANGE (6MM) | 2 |
| 30250-052-156 | CONDENSER ASSY. (TOYO) | ||
| 1 | 30500-355-003 | COIL ASSY., IGNITION (TOYO) | 1 |
| 1 | 30500-950-405 | COIL, IGNITION | 1 |
| 1 | 30530-355-003 | COIL ASSY., IGNITION (TOYO) | 1 |
| 1 | 30700-098-153 | CAP ASSY., NOISE SUPPRESSOR Use up to Frame SN 4103690 | 1 |
| 1 | 30700-098-158 | CAP ASSY., NOISE SUPPRESSOR Use up to Frame SN 4103690 | 1 |
| 1 | 30700-098-163 | CAP ASSY., NOISE SUPPRESSOR Use up to Frame SN 4103690 | 1 |
| 1 | 30700-259-810 | CAP ASSY., NOISE SUPPRESSOR Use up to Frame SN 4103690 | 1 |
| 30700-155-163 | CAP ASSY., NOISE SUPPRESSOR Use from Frame SN 4103691 | ||
| 30700-388-711 | CAP ASSY., NOISE SUPPRESSOR Use from Frame SN 4103691 | ||
| 2 | 31403-300-000 | RUBBER, REGULATOR CUSHION | 2 |
| 2 | 31403-323-000 | RUBBER, REGULATOR CUSHION | 2 |
| 31532-329-000 | COVER, BATTERY | ||
| 1 | 31700-361-008 | RECTIFIER ASSY. | 1 |
| 1 | 31710-371-008 | RECTIFIER, SILICON (SHINDENGEN) | 1 |
| 32100-391-690 | WIRE HARNESS | ||
| 32106-329-000 | WIRE, BATTERY TERMINAL | ||
| 32108-046-000 | COVER, WIRE HARNESS CONNECTOR | ||
| 1 | 32108-046-750 | COVER, WIRE HARNESS CONNECTOR | 1 |
| 2 | 32112-230-000 | CONNECTOR, FUSE | 2 |
| 32120-323-000 | CASE, FUSE | ||
| 32171-329-000 | CLIP, WIRE HARNESS | ||
| 35010-391-671 | LOCK SET (HONDALOCK) Use up to Frame SN 4104884 | ||
| 35010-391-720 | LOCK SET Use up to Frame SN 4104884 | ||
| 35100-391-007 | SWITCH ASSY., COMBINATION (HONDALOCK) | ||
| 1 | 35350-KJ9-405 | SWITCH ASSY., RR. STOP | 1 |
| 1 | 35350-MC9-830 | SWITCH ASSY., RR. STOP | 1 |
| 1 | 35350-149-003 | SWITCH ASSY., RR. STOP | 1 |
| 38110-GS3-013 | HORN ASSY. (HIGH) | ||
| 38110-147-004 | HORN (MITSUBA) | ||
| 38105-362-000 | SUB-WIRE, HORN | ||
| 38205-115-000 | CASE, FUSE | ||
| 1 | 38300-GF0-405 | RELAY ASSY., TURN SIGNAL | 1 |
| 1 | 38300-089-671 | RELAY, TURN SIGNAL | 1 |
| 1 | 38300-243-670 | RELAY, TURN SIGNAL | 1 |
| 1 | 38300-428-004 | RELAY, TURN SIGNAL | 1 |
| 1 | 38301-428-671 | RELAY, TURN SIGNAL (DENSO) | 1 |
| 1 | 38310-428-671 | RELAY, TURN SIGNAL | 1 |
| 38306-292-670 | SUSPENSION, TURN SIGNAL RELAY | ||
| 50375-362-000 | BRACKET, MAIN SWITCH | ||
| 77230-388-007 | LOCK ASSY., SEAT | ||
| 77230-388-017 | LOCK ASSY., SEAT (HONDALOCK) | ||
| 77230-399-007 | LOCK ASSY., SEAT (HONDALOCK) | ||
| 83600-391-670 | TRAY, BATTERY | ||
| 2 | 83601-357-000 | COLLAR, COVER SETTING | 2 |
| 4 | 83618-323-000 | RUBBER, BATTERY BOX | 4 |
| 84711-362-000 | HOLDER, WIRE | ||
| 2 | 92000-06025 | BOLT, HEX. (6X25) | 2 |
| 2 | 92101-06025-0A | BOLT, HEX. (6X25) | 2 |
| 2 | 93600-06012-0G | SCREW, FLAT (6X12) | 2 |
| 2 | 93600-06012-07 | SCREW, FLAT (6X12) | 2 |
| 2 | 94111-06000 | WASHER, SPRING (6MM) | 2 |
| 1 | 95012-13000 | BAND B2, BATTERY | 1 |
| 1 | 95012-13001 | BAND B2, BATTERY | 1 |
| 3 | 32161-404-000 | BAND B1, WIRE | 3 |
| 3 | 95014-61100 | BAND A1, CABLE | 3 |
| 95014-61200 | BAND A2, CABLE | ||
| 1 | 95014-61300 | BAND A3, WIRE | 1 |
| 2 | 95700-06040-00 | BOLT, FLANGE (6X40) | 2 |
| 2 | 95701-06040-00 | BOLT, FLANGE (6X40) | 2 |
| 4 | 98200-11000 | FUSE A (10A) | 4 |
| 31500-324-601 | BATTERY ASSY. (6N6-3B) | ||
| 31500-329-677 | BATTERY ASSY. (6N6-3B) | ||
| 31500-329-677AH | BATTERY (6N6-3B) | ||
| 98202-63260 | BATTERY (6N6-3B) | ||
| 98203-63250 | BATTERY (6N6-3B) | ||
| 98203-63260 | BATTERY (6N6-3B) |
