Интерактивное демо базы запчастей
Просматривайте запчасти для ATV, мотоциклов, снегоходов, водных моторов и другой техники по марке, году и модели. Каталог доступен для покупки в виде базы данных SQL с изображениями или для аренды.

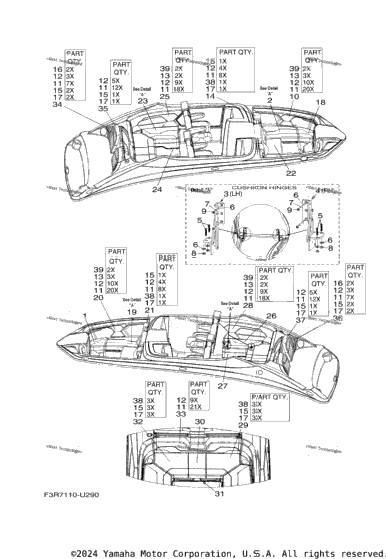

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | F3R-U35A6-A0-00 | Cushion, Fore 6 UR FOR BC6 | 1 |
| 1 | F3R-U35A6-B0-00 | Cushion, Fore 6 UR FOR VLGC2 | 1 |
| 1 | F3R-U35A1-A0-00 | Cushion, Fore 1 UR FOR BC6 | 1 |
| 1 | F3R-U35A1-B0-00 | Cushion, Fore 1 UR FOR VLGC2 | 1 |
| 4 | F3F-U3714-20-00 | Bracket,Seat | 4 |
| 4 | F3F-U3714-30-00 | Bracket,Seat | 4 |
| 16 | 90151-10S16-00 | Screw, Countersunk | 16 |
| 32 | 90201-10S00-00 | Washer, Plate | 32 |
| 16 | 90204-10S00-00 | Washer, Spring | 16 |
| 16 | 90185-10S00-00 | Nut, Self-Locking | 16 |
| 16 | 90170-10S00-00 | Nut | 16 |
| 1 | F3R-U35B1-D0-00 | Backrest Front, Port UR FOR BC6 | 1 |
| 1 | F3R-U35B1-E0-00 | Backrest Front, Port UR FOR VLGC2 | 1 |
| 1 | 90167-08SA8-00 | Screw, Tapping UN | 1 |
| 1 | F1C-U5195-00-00 | Clip, 1 UN | 1 |
| 1 | 90169-08SA5-00 | Tapping Screw UN | 1 |
| 1 | F3R-U3796-A0-00 | Back Rest 3 UR FOR BC6 | 1 |
| 1 | F3R-U3796-B0-00 | Back Rest 3 UR FOR VLGC2 | 1 |
| 1 | 90204-14S00-00 | Washer, Spring UN | 1 |
| 1 | 90209-14SA3-00 | Washer UN | 1 |
| 1 | 90170-14S00-00 | Nut UN | 1 |
| 1 | F3R-U35A5-A0-00 | Cushion, Fore 5 UR FOR BC6 | 1 |
| 1 | F3R-U35A5-B0-00 | Cushion, Fore 5 UR FOR VLGC2 | 1 |
| 1 | F3R-U35A2-A0-00 | Cushion Seat, Front Right UR FOR BC6 | 1 |
| 1 | F3R-U35A2-B0-00 | Cushion Seat, Front Right UR FOR VLGC2 | 1 |
| 1 | F3R-U35B2-D0-00 | Backrest Front, Stbd UR FOR BC6 | 1 |
| 1 | F3R-U35B2-E0-00 | Backrest Front, Stbd UR FOR VLGC2 | 1 |
| 1 | F3R-U3798-A0-00 | Back Rest, 4 UR FOR BC6 | 1 |
| 1 | F3R-U3798-B0-00 | Back Rest, 4 UR FOR VLGC2 | 1 |
| 2 | F3R-U372F-20-00 | Cushion 5 | 2 |
| 1 | F3R-U371D-D0-00 | Cushion 1 UR FOR BC6 | 1 |
| 1 | F3R-U371D-E0-00 | Cushion 1 UR FOR VLGC2 | 1 |
| 1 | F1C-U5192-00-00 | .Snap | 1 |
| 1 | F3R-U3791-D0-00 | Back Rest 1 UR FOR BC6 | 1 |
| 1 | F3R-U3791-E0-00 | Back Rest 1 UR FOR VLGC2 | 1 |
| 1 | F3R-U371E-D0-00 | Cushion 2 UR FOR BC6 | 1 |
| 1 | F3R-U371E-E0-00 | Cushion 2 UR FOR VLGC2 | 1 |
| 1 | F3R-U3795-D0-00 | Backrest 2 UR FOR BC6 | 1 |
| 1 | F3R-U3795-E0-00 | Backrest 2 UR FOR VLGC2 | 1 |
| 1 | F3R-U372D-A0-00 | Cushion, 3 UR FOR BC6 | 1 |
| 1 | F3R-U372D-B0-00 | Cushion, 3 UR FOR VLGC2 | 1 |
| 1 | F3R-U3724-A0-00 | Cushion Seat, Rear UR FOR BC6 | 1 |
| 1 | F3R-U3724-B0-00 | Cushion Seat, Rear UR FOR VLGC2 | 1 |
| 1 | F3R-U372E-A0-00 | Cushion 4 UR FOR BC6 | 1 |
| 1 | F3R-U372E-B0-00 | Cushion 4 UR FOR VLGC2 | 1 |
| 1 | F3R-U3766-A0-00 | Backrest 1 UR FOR BC6 | 1 |
| 1 | F3R-U3766-B0-00 | Backrest 1 UR FOR VLGC2 | 1 |
| 1 | F3R-U592C-J0-00 | Pad 1 UR FOR BC6 | 1 |
| 1 | F3R-U592C-L0-00 | Pad 1 UR FOR VLGC2 | 1 |
| 1 | F3R-U521C-A0-00 | Pad 1 UR FOR BC6 | 1 |
| F3R-U521C-B0-00 | Pad 1 UR FOR VLGC2 | ||
| 1 | F3R-U592C-K0-00 | Pad 1 UR FOR BC6 | 1 |
| 1 | F3R-U592C-M0-00 | Pad 1 UR FOR VLGC2 | 1 |
| 1 | F3R-U521D-A0-00 | Pad 2 UR FOR BC6 | 1 |
| 1 | F3R-U521D-B0-00 | Pad 2 UR FOR VLGC2 | 1 |
| 1 | 90209-14SA2-00 | Washer UN | 1 |
| 1 | 90169-08SA9-00 | Screw, Truss Head Tapping UN | 1 |
