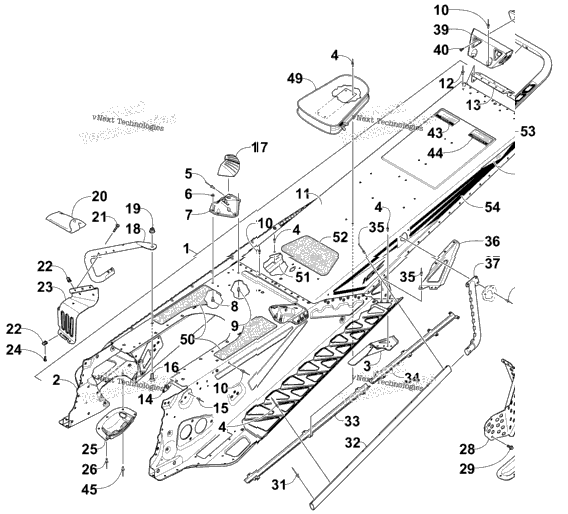

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 2707-259 | Complete Chassis Assembly - Black | 1 |
| 2707-667 | Tunnel Assembly - Black (inc. 2-13) | ||
| 1 | 2707-378 | Tunnel, Front - Assembly - Black (inc. 3-4) | 1 |
| 1 | 2707-286 | Bracket, Mounting - Suspension - Right - Black | 1 |
| 1 | 2707-287 | Bracket, Mounting - Suspension - Left - Black | 1 |
| 1 | 8060-706 | Rivet | 1 |
| 14 | 1623-206 | Rivet | 14 |
| 8 | 8422-502 | Nut, Lock | 8 |
| 1 | 1707-692 | Bracket, Mounting - Rear Spar - Right - Black | 1 |
| 1 | 1707-693 | Bracket, Mounting - Rear Spar - Left - Black | 1 |
| 8 | 8476-512 | Screw, Machine | 8 |
| 2 | 1623-257 | Rivet | 2 |
| 1 | 8060-702 | Rivet - Black | 1 |
| 1 | 2707-665 | Tunnel, Rear - Black | 1 |
| 1 | 8060-504 | Rivet | 1 |
| 1 | 1707-725 | End Cap, Tunnel - Black | 1 |
| 1 | 0608-631 | Plate, Retaining | 1 |
| 2 | 8060-708 | Rivet | 2 |
| 2 | 8476-820 | Screw, Machine | 2 |
| 1 | 6606-664 | Support, Gas Tank - Right | 1 |
| 1 | 6606-665 | Support, Gas Tank - Left | 1 |
| 1 | 1707-454 | Support, Footrest - Right | 1 |
| 1 | 1707-455 | Support, Footrest - Left | 1 |
| 2 | 8427-802 | Nut, Lock | 2 |
| 0744-088 | Kit, Tool | ||
| 4 | 8468-535 | Screw, Machine | 4 |
| 9 | 1623-637 | Clip, U-Nut | 9 |
| 1 | 1707-556 | Footrest - Right - Black | 1 |
| 1 | 1707-557 | Footrest - Left - Black | 1 |
| 4 | 8470-516 | Screw, Machine | 4 |
| 1 | 1607-109 | Protector, Chain Case | 1 |
| 8 | 8061-708 | Rivet | 8 |
| 1 | 0607-351 | Protector, Brake Disc | 1 |
| 1 | 2707-044 | Shield, Brake Disc - Black | 1 |
| 2 | 8408-613 | Screw, Cap | 2 |
| 1 | 8470-520 | Screw, Machine | 1 |
| 1 | 1623-130 | Rivet | 1 |
| 2 | 1707-697 | Roll, Tunnel - Black | 2 |
| 1 | 0630-307 | Protector, Taillight Harness | 1 |
| 0630-280 | Protector, Harness - Taillight | ||
| 1 | 1623-241 | Rivet | 1 |
| 1 | 2707-288 | Gusset, Running Board - Right - Black | 1 |
| 1 | 2707-289 | Gusset, Running Board - Left - Black | 1 |
| 1 | 1707-700 | Gusset, Tunnel Roll - Right - Black | 1 |
| 1 | 1707-701 | Gusset, Tunnel Roll - Left - Black | 1 |
| 2 | 0621-990 | Decal, Reflector - Red | 2 |
| 1 | 0730-227 | Bracket, Mounting - Taillight - Black | 1 |
| 2 | 8470-510 | Screw, Machine | 2 |
| 1 | 0609-898 | Taillight, LED | 1 |
| 1 | 6606-394 | Snowflap | 1 |
| 1 | 5611-853 | Decal, Warning - Towing (English) | 1 |
| 1 | 5611-852 | Decal, Warning - Towing (French) | 1 |
| 7 | 8061-706 | Rivet | 7 |
| 1 | 2707-597 | Bumper, Rear - 162" - White | 1 |
| 2 | 8476-620 | Screw, Machine | 2 |
| 2 | 8427-602 | Nut, Hex | 2 |
| 1 | 6606-615 | Bag, Belt | 1 |
| 1 | 6606-814 | Pad, Fuel Tank - Right | 1 |
| 1 | 6606-815 | Pad, Fuel Tank - Left | 1 |
| 2 | 1607-458 | Protector, Tunnel | 2 |
| 1 | 6606-816 | Pad, Fuel Tank - Center | 1 |
| 2 | 2621-290 | Decal, Bumper - "7000" | 2 |
| 2621-504 | Decal, Tunnel - "162" - Right - Green | ||
| 2621-505 | Decal, Tunnel - "162" - Left - Green |
