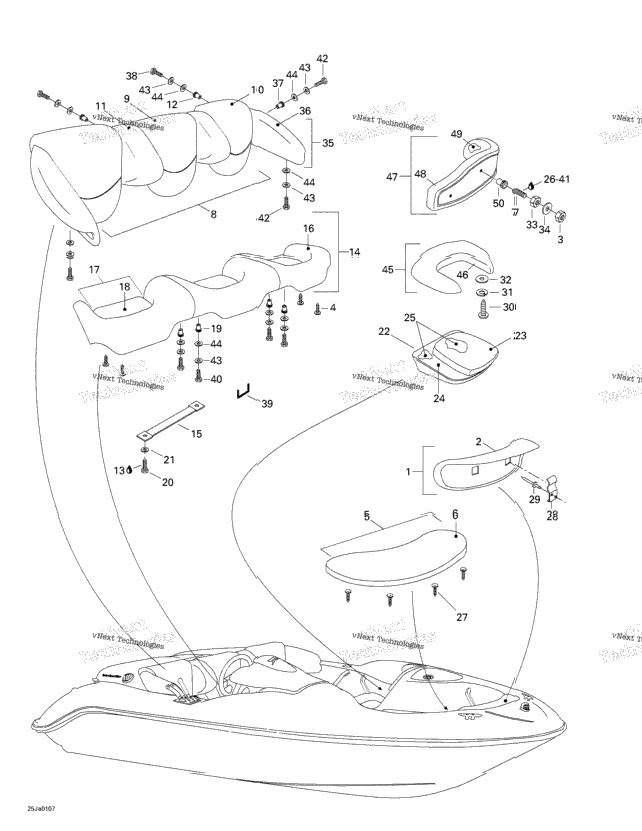

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 204610538 | Front Backrest Ass'y Includes 1 - 2. | ||
| 204610539 | Front Backrest Cover | ||
| 3 | 232551600 | Hex. Elastic Nut M5 | 3 |
| 4 | 293730021 | Dart | 4 |
| 204610540 | Front Seat Ass'y Includes 5 - 6. | ||
| 204610541 | Front Seat Cover | ||
| 206253060 | Set Screw M5 x 30 | ||
| 204611219 | Rear Backrest Ass'y Includes 8 - 12. | ||
| 204610544 | Backrest Cover (Center) | ||
| 204610545 | RH Backrest Cover | ||
| 204610546 | LH Backrest Cover | ||
| 204610543 | Backrest Cover | ||
| 204100005 | Anchor Washer | ||
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 204610551 | Rear Seat Ass'y Includes 14 - 21. | ||
| 204610555 | Strap | ||
| 204610552 | Rear Seat Cover | ||
| 204610553 | Cushion Ass'y Includes 17 - 18. | ||
| 204610554 | Rear Seat Pillow Cover | ||
| 4 | 207161660 | Hex. Screw M6 X 16 | 4 |
| 4 | 234062600 | Flat Washer M6, Stainless | 4 |
| 204610556 | Keeper Seat Ass'y Includes 22 - 25. | ||
| 204610557 | Keeper Seat Base Cover | ||
| 204610558 | Keeper Seat Cover | ||
| 269000333 | Seat Foam | ||
| 1 | 219704458 | Was 293800041 Loctite Primer 7649 | 1 |
| 4 | 293730006 | Black, Dart | 4 |
| 269000388 | SEAT SUPPORT | ||
| 4 | 293150043 | Pop Rivet 3/16" | 4 |
| 209663860 | Tapping Phillips Screw 6.3 X 38 | ||
| 4 | 234161601 | Lock Washer Helical M6 | 4 |
| 4 | 234061600 | Stainless Flat Washer M6 | 4 |
| 4 | 232051600 | Hex. Nut M5 | 4 |
| 204610547 | LH Armrest Ass'y Includes 35 - 37. | ||
| 204610549 | RH Armrest Ass'y | ||
| 204610548 | LH Armrest Cover | ||
| 204610550 | RH Armrest Cover | ||
| 207364060 | Hex. Screw M6 X 40, Scotch Grip | ||
| 293730005 | Staple | ||
| 4 | 207364560 | Hex. Screw M6 x 45, Scotch Grip | 4 |
| 1 | 293800005 | Loctite 271, 10 ml | 1 |
| 207363060 | Hex. Screw M6 X 30, Scotch Grip | ||
| 14 | 234062600 | Flat Washer M6, Stainless | 14 |
| 14 | 204100006 | Washer | 14 |
| 204611444 | Keeper Seat Ring Ass'y Includes 45 - 46. | ||
| 204610560 | Keeper Seat Ring Cover | ||
| 204610562 | Keeper Seat Backrest Ass'y Includes 47 - 48. | ||
| 204610563 | Keeper Seat Backrest Cover | ||
| 269000339 | Keeper Seat Backrest Foam |
