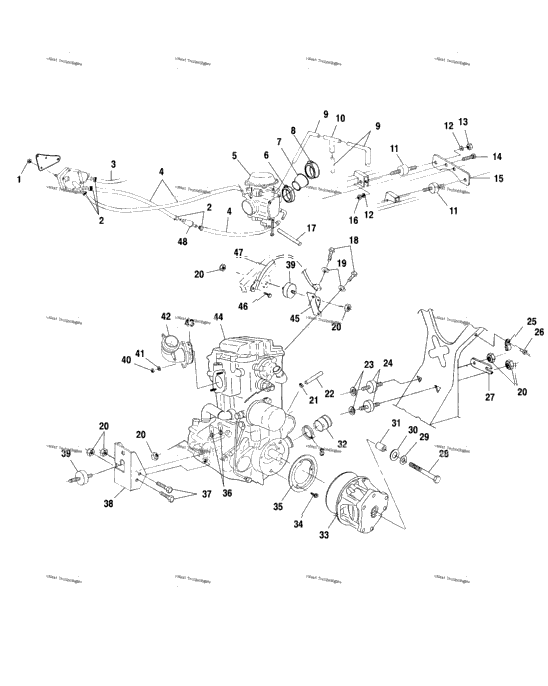

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 7546601 | NYLOK NUT | 2 |
| 8 | 7080003 | HOSE CLAMP | 8 |
| 5811490 | HOSE,(.25 IDX1.75"LG.) | ||
| 1 | 8450040-600 | FUEL LINE, 600 CM | 1 |
| ------- | Asm., Carburetor (See Carburetor Pg. D8, Ref. 9) | ||
| 1 | 7080413 | CLAMP BAND, NARROW | 1 |
| 5410995 | Discontinued | ||
| 2 | 7080511 | NARROW BAND CLAMP | 2 |
| 1 | 8450003-1525 | FUEL LINE, 1/4 ID | 1 |
| 1 | 7052075 | FITTING, TEE | 1 |
| 3110032 | MOUNT, RUBBER | ||
| 2 | 7552605 | WASHER | 2 |
| 2 | 7542105 | HEX NUT | 2 |
| ------- | Screw and Washer (See Carburetor Pg. D8, Ref. 8) | ||
| 5211626-067 | STRAP,CARB.MT,BLK. | ||
| 2 | 7547069 | NUTSERT,HEX | 2 |
| 1 | 8360009-600 | LINE,FUEL,1/8 ID,600 CM. | 1 |
| 2 | 7512315 | BOLT | 2 |
| 2 | 7552901 | SPRING LOCK WASHER | 2 |
| 8 | 7547108 | NUT | 8 |
| 1 | 7080694 | CLAMP,HOSE,SPRING | 1 |
| ------- | Hose, Breather (See Air Box Pg. A12, Ref. 17) | ||
| 2 | 7555815 | FLAT WASHER | 2 |
| 3110046 | Discontinued | ||
| 1 | 7080539 | CLAMP,NYLON,CABLE | 1 |
| 1 | 7621462 | RIVET | 1 |
| 5224658-067 | FRAME SUPPORT STRAP, MEDIUM GLO | ||
| 1 | 7512566 | BOLT | 1 |
| 1 | 7575202 | WASHER LOCK | 1 |
| 1 | 5210748 | WASHER | 1 |
| 1 | 5430261 | BUSHING | 1 |
| 1 | 5410421 | CLUTCH INTAKE BOOT | 1 |
| ------- | Asm., Drive Clutch, Braking (See Drive Clutch Pg. C1, Ref. 14) | ||
| ------- | Screw and Washer (See Crankcase Pg. D1, Ref. 6) | ||
| ------- | Bracket, Retainer, Seal (See Clutch Cover Pg. C3, Ref. 21) | ||
| 2 | 7080474 | HOSE CLAMP | 2 |
| 2 | 7515417 | SCREW | 2 |
| 5241150-067 | MOUNT-ENGINE,FRONT | ||
| 2 | 3110044 | ENGINE MOUNT ISOLATOR | 2 |
| ------- | Nut (See Cylinder Pg. D2, Ref. 23) | ||
| ------- | Washer (See Cylinder Pg. D2, Ref. 22) | ||
| 1 | 1261043-029 | EXHST MANIFOLD HGH TEMP POWDER | 1 |
| ------- | Gasket, Exhaust (See Cylinder Pg. D2, Ref. 34) | ||
| 3087023 | Discontinued (EH42PLE05) NOTE: The Short Block assembly contains a crankcase assembly, cylinder & cylinder head assembly and a piston & crankshaft assembly. Prior authorization is required for warranty consideration. | ||
| 5241453-067 | MOUNT-ENGINE,TOP PLTD | ||
| 1 | 7512232 | BOLT | 1 |
| 4010132 | CABLE,GND-ENGINE | ||
| 1 | 2530009 | SMALL IN-LINE FILTER | 1 |
