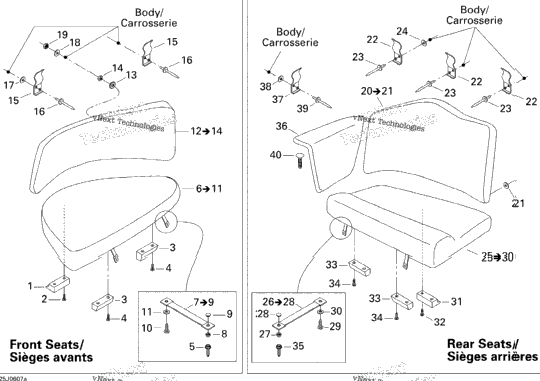

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 204611940 | SEAT LATCH | 2 |
| 4 | 204100039 | SCREW 1/4?-20 X 2? | 4 |
| 204611805 | LATCH | ||
| 209642560 | PHILLIPS SCREW M4.2 X 25 | ||
| 4 | 202000159 | SCREW-STUD TAPP. 3/8 SS | 4 |
| 204612973 | Front Seat Ass'y, Port Side Includes 6 to 11, Red | ||
| 204613011 | Front Seat Ass'y, Port Side Includes 6 to 11, Blue | ||
| 204612979 | Front Seat Ass'y, Starboard Includes 6 to 11, Red | ||
| 204613014 | Front Seat Ass'y, Starboard Includes 6 to 11, Blue | ||
| XXXX | Not Available As Spare Part - Retaining Strap Ass'y Includes 7 to 9 | ||
| 4 | 204000083 | SNAP BASE | 4 |
| 4 | 204611609 | SNAP COVER | 4 |
| 4 | 204100054 | SCREW 8 X 3/4? | 4 |
| 4 | 211200019 | FLAT WASHER | 4 |
| 204612975 | Front Seat Backrest Ass'y, Port Side Includes 12 to 14, Red | ||
| 204613012 | Front Seat Backrest Ass'y, Port Side Includes 12 to 14, Blue | ||
| 204612977 | Front Seat Backrest Ass'y, Starboard Includes 12 to 14, Red | ||
| 204613013 | Front Seat Backrest Ass'y, Starboard Includes 12 to 14, Blue | ||
| 2 | 234461608 | External Serrated Lock Washer 6 mm | 2 |
| 204100060 | Hex. Jam Nut | ||
| 4 | 204610288 | Seat Support | 4 |
| 8 | 293150043 | Pop Rivet 3/16" | 8 |
| 4 | 234052400 | Flat Washer 5 mm, Stainless | 4 |
| 2 | 204100139 | WASHER-FENDER/S.S. | 2 |
| 211100026 | HEX. NUT 1/4 | ||
| 204612981 | Rear Backrest Ass'y, Starboard Includes 20 to 21, Red | ||
| 204613015 | Rear Backrest Ass'y, Starboard Includes 20 to 21, Blue | ||
| 204612983 | Rear Backrest Ass'y, Port Side Includes 20 to 21, Red | ||
| 204613016 | Rear Backrest Ass'y, Port Side Includes 20 to 21, Blue | ||
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 6 | 204610288 | Seat Support | 6 |
| 12 | 293150043 | Pop Rivet 3/16" | 12 |
| 204612985 | Rear Seat Ass'y, Port Side Includes 25 to 30, Red | ||
| 204613017 | Rear Seat Ass'y, Port Side Includes 25 to 30, Blue | ||
| 204612987 | REAR SEAT ASS'Y, STARBOARD Includes 25 to 30, Red | ||
| 204613018 | Rear Seat Ass'y, Starboard Includes 25 to 30, Blue | ||
| XXXX | Not Available As Spare Part - Retaining Strap Ass'y Includes 26 to 28 | ||
| 204612989 | Armrest, Starboard | ||
| 204612991 | Armrest, Port Side | ||
| 2 | 204610288 | Seat Support | 2 |
| 4 | 293150043 | Pop Rivet 3/16" | 4 |
| 4 | 293730021 | Dart | 4 |
