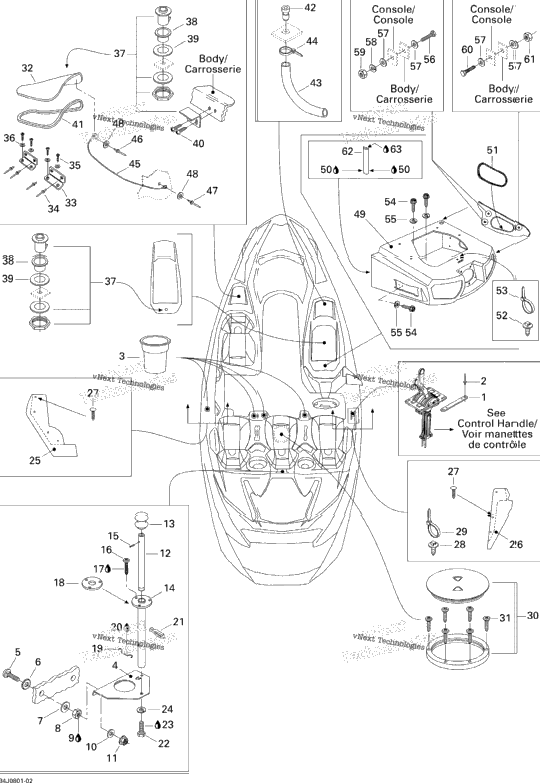

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 293450061 | SHIFTER INSERT | 2 |
| 4 | 293150013 | Pop Rivet 3/16" | 4 |
| 4 | 291000619 | CUP HOLDER | 4 |
| 1 | 204071140 | FIXATION PLATE | 1 |
| 204000130 | Elevator Bolt | ||
| 2 | 211200054 | External Tooth Lock Washer 10 MM | 2 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 211100026 | HEX. NUT 1/4 | ||
| 1 | 293800005 | Loctite 271, 10 ml | 1 |
| 2 | 212000005 | NUT-STOP ELASTIC MS-17830 | 2 |
| 204071624 | SKI SHAFT | ||
| 1 | 293000004 | SKI SHAFT CAP | 1 |
| 1 | 204071495 | FIXED TUBE | 1 |
| 211400004 | ROLLED PIN M3 X 30 | ||
| 3 | 208564060 | PHILLIPS SCREW M6 X 40 | 3 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 293830045 | RUBBER WASHER | ||
| 1 | 291001205 | SPRING | 1 |
| 293550010 | Synthetic Grease, 400 G | ||
| 1 | 570023800 | Windshield Latch | 1 |
| 1 | 207181860 | Hex. Screw M8 X 18 | 1 |
| 1 | 234181601 | Lock Washer 8 mm, Stainless | 1 |
| XXXX | Not Available As Spare Part - Soundwall Seal, Port Side | ||
| XXXX | Not Available As Spare Part - Soundwall Seal, Starboard | ||
| 7 | 293730014 | Black Dart | 7 |
| 2 | 293730040 | Mount Dart | 2 |
| 2 | 414115200 | Tie-Rap 180 mm | 2 |
| 1 | 204073192 | DECK PLATE 8 | 1 |
| 209941960 | PHILLIPS SCREW M4.2 X 19 | ||
| 204073023 | STORAGE DOOR, PORT SIDE, YELLOW Yellow Model | ||
| 204072639 | STORAGE DOOR, PORT SIDE, RED Red Model | ||
| 2 | 269700031 | Hinge | 2 |
| 293150029 | RIVET_POP 5/32 | ||
| 209631360 | SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 | ||
| 4 | 234040600 | Flat Washer 4 mm | 4 |
| 204071753 | LATCHES KIT, 2 SUB-ASSEMBLIES | ||
| 204620007 | LATCH INSERT | ||
| 204620045 | COMPENSATION GASKET | ||
| 1 | 219704368 | Seal Tray 1000Mm Long | 1 |
| 204071783 | DRAIN FITTING | ||
| 1 | 219704412 | Polyurethane Hose, 8 Mm 3000Mm Long | 1 |
| 1 | 293750001 | Tie Wrap 94 mm | 1 |
| 1 | 204000117 | RETAINER CABLE | 1 |
| 1 | 204130050 | POP RIVET 3/16 | 1 |
| 1 | 293150039 | Pop Rivet 3/16" | 1 |
| 2 | 234052600 | Flat Washer 5 mm, Stainless | 2 |
| 1 | 204073119 | CONSOLE ASS'Y | 1 |
| 1 | 296000309 | Silicone Sealant 51388, 300 ml | 1 |
| 204550028 | SLIT CONDUIT, METER | ||
| 1 | 293730040 | Mount Dart | 1 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 204050138 | SCREW-SELF DRILL(HEX WASHER HEAD) | ||
| 3 | 211200025 | Lock Washer 1/4” | 3 |
| 2 | 207164560 | Hex. Screw M6 X 45 | 2 |
| 6 | 234062600 | Flat Washer M6, Stainless | 6 |
| 2 | 234161601 | Lock Washer Helical M6 | 2 |
| 2 | 232061600 | Hex. Nut M6 | 2 |
| 1 | 207163560 | Hex. Screw M6 X 35 | 1 |
| 1 | 232561600 | Hex. Elastic Stop Nut M6 | 1 |
| 204050042 | TRIM, WHITE | ||
| 219704463 | Était Was 413705800 Loctite 414 , 29.5 c.c |
