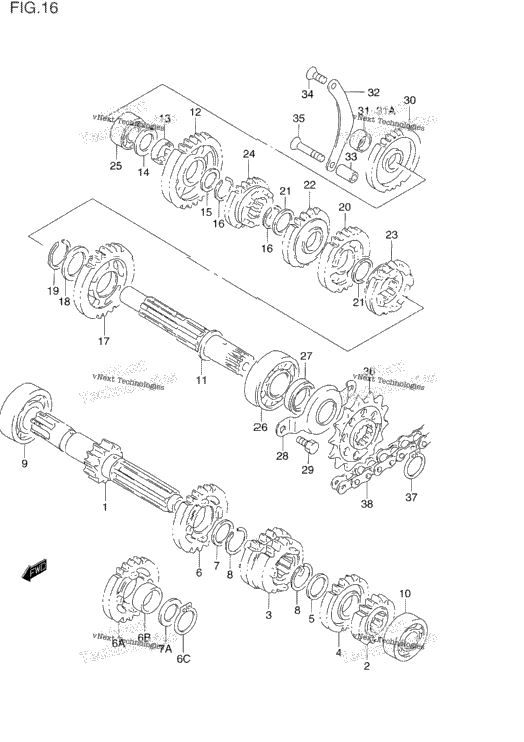

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 24120-14D01 | COUNTERSHAFT (NT:12) MODEL L/M | ||
| 24120-14D03 | COUNTERSHAFT (NT:12) MODEL N/P/R/S | ||
| 24221-14D00 | GEAR, 2ND DRIVE (NT:15) | ||
| 24231-15D01 | GEAR, 3/4TH DRIVE (NT:18/21) MODEL L/M/N | ||
| 24231-14D00 | GEAR, 3/4TH DRIVE (NT:18/18) MODEL P/R/S | ||
| 24251-15D00 | GEAR, 5TH DRIVE (NT:23) MODEL L/M/N | ||
| 24251-14D00 | GEAR, 5TH DRIVE (NT:21) MODEL P/R/S | ||
| 1 | 08211-22261 | WASHER | 1 |
| 24260-15D00 | GEAR, 6TH DRIVE (NT:24) MODEL L/M | ||
| 24261-15D02 | GEAR, 6TH DRIVE (NT:24) MODEL N | ||
| 24261-14D02 | GEAR, 6TH DRIVE (NT:23) MODEL P/R/S | ||
| 1 | 09300-22008 | BUSH MODEL N/P/R/S | 1 |
| 1 | 08331-31226 | CIRCLIP MODEL N/P/R/S | 1 |
| 1 | 08211-22281 | WASHER MODEL L/M | 1 |
| 1 | 08211-22301 | WASHER MODEL N/P/R/S | 1 |
| 2 | 09380-22006 | CIRCLIP MODEL L/MMODEL N/P/R/S | 2 |
| 1 | 09262-20065 | BEARING, RH MODEL L/M/N/P | 1 |
| 1 | 09262-20116 | BEARING (20X52X15) MODEL R/S | 1 |
| 1 | 09262-17018 | BEARING, LH MODEL L/M/N | 1 |
| 1 | 09262-17027 | BEARING, LH MODEL P/R | 1 |
| 1 | 09262-17018 | BEARING, LH MODEL S | 1 |
| 1 | 24130-14D11 | DRIVESHAFT MODEL L/M | 1 |
| 1 | 24130-14D13 | DRIVESHAFT MODEL N/P/R/S | 1 |
| 24311-14D00 | GEAR, 1ST DRIVEN (NT:29) | ||
| 1 | 24312-14D00 | BUSH | 1 |
| 1 | 08211-17322 | WASHER | 1 |
| 1 | 08211-22301 | WASHER | 1 |
| 2 | 09380-22006 | CIRCLIP | 2 |
| 24320-14D00 | GEAR, 2ND DRIVEN (NT:26) | ||
| 1 | 08211-25341 | WASHER | 1 |
| 1 | 09380-25010 | CIRCLIP | 1 |
| 24331-15D00 | GEAR, 3RD DRIVEN (NT:23) MODEL L/M | ||
| 24331-15D01 | GEAR, 3RD DRIVEN (NT:23) MODEL N | ||
| 24331-14D01 | GEAR, 3RD DRIVEN (NT:24) MODEL P/R/S | ||
| 2 | 08211-22281 | WASHER | 2 |
| 24341-15D00 | GEAR, 4TH DRIVEN (NT:21) MODEL L/M/N | ||
| 24341-14D00 | GEAR, 4TH DRIVEN (NT:20) MODEL P/R/S | ||
| 24351-15D00 | GEAR, 5TH DRIVEN (NT:19) MODEL L/M/N | ||
| 24351-14D00 | GEAR, 5TH DRIVEN (NT:20) MODEL P/R/S | ||
| 24361-15D00 | GEAR, 6TH DRIVEN (NT:17) MODEL L/M/N | ||
| 24361-14D01 | GEAR, 6TH DRIVEN (NT:19) MODEL P/R/S | ||
| 1 | 09267-17003 | BEARING, RH | 1 |
| 1 | 09262-22024 | BEARING, LH | 1 |
| 1 | 09283-22025 | OIL SEAL | 1 |
| 1 | 24751-14D00 | HOLDER, OIL SEAL | 1 |
| 2 | 01107-06126 | BOLT MODEL L/M/N/P | 2 |
| 2 | 01500-06123 | BOLT MODEL R/S | 2 |
| 1 | 26261-14D10 | GEAR, KICK IDLE (NT:27) MODEL L/M/N | 1 |
| 1 | 26262-14D00 | BUSH, KICK STARTER IDLE MODEL L/M/N | 1 |
| 1 | 09180-17004 | SPACER (17X25X10.5) MODEL P/R/S | 1 |
| 1 | 26264-14D00 | RETAINER, KICK IDLE GEAR | 1 |
| 1 | 09180-06229 | SPACER (6.5X12X21) | 1 |
| 1 | 02122-06167 | SCREW MODEL L/M/N/P | 1 |
| 1 | 02122-06163 | SCREW MODEL R/S | 1 |
| 1 | 02122-06356 | SCREW MODEL L/M/N/P | 1 |
| 1 | 02122-06353 | SCREW MODEL R/S | 1 |
| 1 | 27511-14310 | SPROCKET (NT:13) MODEL L/M/N | 1 |
| 1 | 27510-47D00 | SPROCKET (NT:14) MODEL P/R/S | 1 |
| 1 | 09380-22012 | CIRCLIP | 1 |
| 27600-13A60-112 | CHAIN, DRIVE (RK520S0X112LE) MODEL L/M/N | ||
| 27600-05C10-108 | CHAIN, DRIVE (DID520V7X108LE) MODEL P/R/S |
