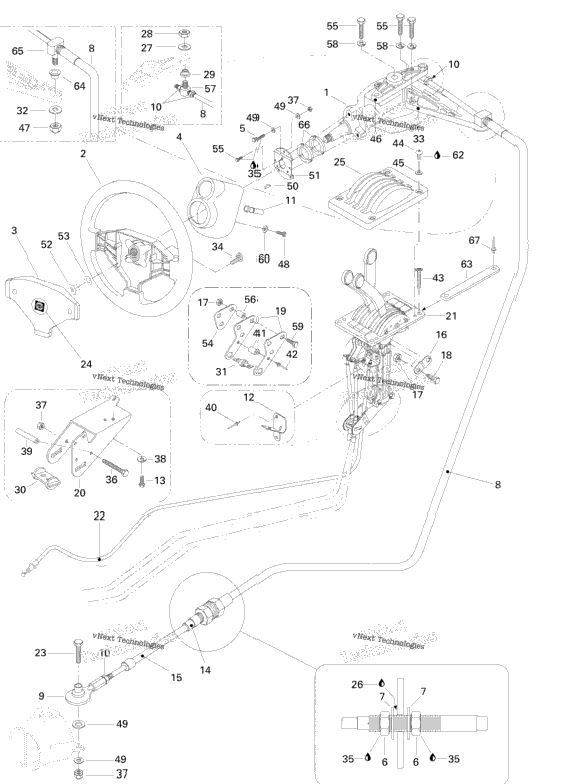

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 277000342 | Helm Ass'y | ||
| 277000508 | Steering (Black) | ||
| 277000547 | Steering Cover (Green) | ||
| 277000551 | Collar (Marine Green) | ||
| 3 | 210000015 | Hexagonal Screw M6 x 30 | 3 |
| 277000437 | Nut | ||
| 277000438 | Washer | ||
| 277000574 | Direction Cable Includes 6,7,10,14,15 | ||
| 277000553 | BALL JOINT | ||
| 3 | 277000439 | HEX. NUT 5/16-24 | 3 |
| 293720014 | Grommet | ||
| 1 | 277000504 | CABLE SUPPORT | 1 |
| 2 | 210000011 | Hex. Screw M6 x 12 | 2 |
| 277000440 | SEAL SWIVEL | ||
| 1 | 277000441 | Terminal Wiper | 1 |
| 277000447 | Throttle Link | ||
| 3 | 212000004 | Elastic Stop Nut M5 | 3 |
| 215051660 | SCREW-HEX.CAP DIN.933A2 | ||
| 2 | 277000578 | LINK - REVERSE | 2 |
| 277000577 | Welded Support | ||
| 277000478 | Control Ultraflex | ||
| 277000327 | Throttle Cable | ||
| 1 | 215664060 | Hex. Screw M6 x 40 | 1 |
| 219900514 | Logo «Bombardier» | ||
| 277000505 | Control Cover | ||
| 1 | 296000309 | Silicone Sealant 51388, 300 ml | 1 |
| 1 | 211200019 | FLAT WASHER | 1 |
| 1 | 212000005 | NUT-STOP ELASTIC MS-17830 | 1 |
| 1 | 293350012 | BUSHING | 1 |
| 1 | 277000451 | PIVOT BRACKET | 1 |
| 1 | 277000450 | PIVOT BRACKET | 1 |
| 1 | 213200003 | Washer 10 mm | 1 |
| 1 | 277000458 | CABLE SUPPORT | 1 |
| 3 | 211000038 | Screw K40 x 20 | 3 |
| 1 | 293800015 | Lubrifiant - Deoxit, 250 ml | 1 |
| 210100010 | Screw M6 x 80 | ||
| 5 | 212000001 | Elastic Stop Nut M6 | 5 |
| 2 | 217361500 | Washer Lock 6 | 2 |
| 1 | 277000453 | SPACER | 1 |
| 2 | 293150006 | Pop Rivet 1/8" | 2 |
| 1 | 277000449 | SPACER | 1 |
| 1 | 293150023 | RIVET_POP 1/8 X ,625 | 1 |
| 216153060 | SCREW-CTSK.FL.HD.PH.DIN.965A-A2 | ||
| 4 | 212200004 | Countersunk Phillips Screw M4 x 8 | 4 |
| 4 | 213200010 | Washer 4 mm | 4 |
| 277000459 | Arm | ||
| 1 | 211100024 | LOCK NUT | 1 |
| 4 | 211000083 | Screw For Plastic | 4 |
| 8 | 213200001 | Flat Washer 6 mm | 8 |
| 1 | 277000384 | WOODRUFF KEY | 1 |
| 277000383 | Support | ||
| 1 | 211100021 | LOCK NUT 1/2-20 | 1 |
| 1 | 211200006 | FLAT WASHER, STAINLESS | 1 |
| 277000583 | Compensator Link | ||
| 6 | 211000050 | HEX. SCREW 1/4-20 X 3/4?, SCOTCH GRIP | 6 |
| 2 | 277000584 | SPACER 6.7 MM | 2 |
| 1 | 277000456 | PIVOT | 1 |
| 3 | 211200025 | Lock Washer 1/4” | 3 |
| 2 | 215052560 | Hex. Screw M5 x 25 | 2 |
| 4 | 217042600 | Flat Washer 4 mm | 4 |
| XXX | Not Available As Spare Parts | ||
| XXXX | Not Available As Spare Part - Loctite 425 | ||
| 2 | 293450061 | SHIFTER INSERT | 2 |
| 1 | 293350014 | Flanged Bushing | 1 |
| 277000461 | PIVOT 3/8? | ||
| 2 | 277000593 | SPACER | 2 |
| 4 | 293150013 | Pop Rivet 3/16" | 4 |
