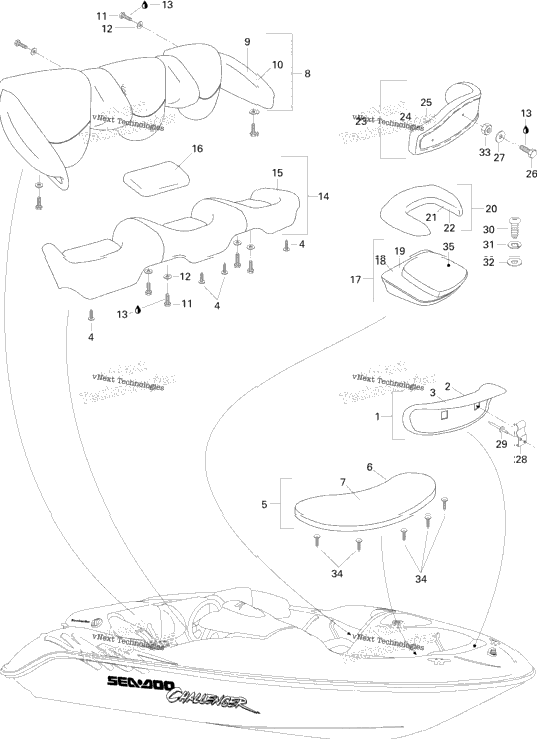

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 269000328 | FRONT BACKREST ASS'Y Includes 1 to 3 | ||
| 269000330 | Front Backrest Cover | ||
| 269000331 | Front Backrest Foam | ||
| 4 | 293730014 | Black Dart | 4 |
| 269000270 | Front Seat Ass'y Includes 5 to 7 | ||
| 269000271 | Front Seat Cover | ||
| 269000272 | Front Seat Foam 1" | ||
| 269000273 | Front Seat Foam 1/2" | ||
| 269000274 | Rear Backrest Ass'y Includes 8 to 10 | ||
| 269000394 | RR Backrest Cover (Armrest) | ||
| 269000280 | RR Central Backrest Cover (White) | ||
| 269000386 | RR Backrest Cover (Printed) | ||
| XXXX | Not Available As Spare Part - RR Backrest Foam | ||
| 8 | 210000005 | Hex. Screw M6 x 25 | 8 |
| 8 | 213200007 | Washer 6 mm | 8 |
| 1 | 293800015 | Lubrifiant - Deoxit, 250 ml | 1 |
| 269000293 | Rear Seat Ass'y Includes 14 to 16 | ||
| 269000396 | RR Seat Cover (Marine Green) | ||
| XXXX | Not Available As Spare Part - RearSeatFoam | ||
| 269000231 | Rear Seat Pillow Cover | ||
| XXXX | Not Available As Spare Part - RearSeatPillowFoam | ||
| 269000276 | Keeper Seat Includes 17 to 19 | ||
| 269000332 | Seat Base Cover | ||
| 269000333 | Seat Foam | ||
| 269000296 | Keeper Seat Ring Includes 20 to 22 | ||
| 269000335 | Keeper Seat Ring Cover | ||
| 269000336 | Keeper Seat Ring Foam | ||
| 269000277 | Keeper Seat Backrest Includes 23 to 25 | ||
| 269000338 | Keeper Seat Backrest Cover | ||
| 269000339 | Keeper Seat Backrest Foam | ||
| 216553060 | Set Screw M5 x 30 | ||
| 3 | 213200004 | Flat Washer 5 mm | 3 |
| 2 | 269000388 | SEAT SUPPORT | 2 |
| 4 | 293150043 | Pop Rivet 3/16" | 4 |
| 216663260 | Screw 6.3 x 32 | ||
| 3 | 217361500 | Washer Lock 6 | 3 |
| 3 | 213200001 | Flat Washer 6 mm | 3 |
| 3 | 212000004 | Elastic Stop Nut M5 | 3 |
| 5 | 293730006 | Black, Dart | 5 |
| XXXX | Not Available As Spare Part - Seat Float |
