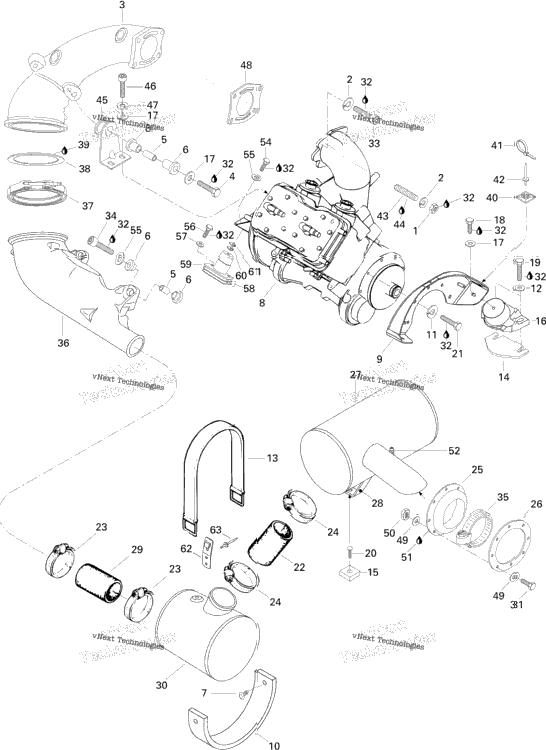

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 212100007 | Elastic Stop Nut M10 | ||
| 4 | 224701188 | Lock Washer 10 mm | 4 |
| 274000161 | Head Pipe Ass'y | ||
| 1 | 215684060 | Hexagonal Screw M8 x 40 | 1 |
| 3 | 274000254 | Bushing | 3 |
| 6 | 293830036 | Rubber Bushing | 6 |
| 2 | 293730006 | Black, Dart | 2 |
| 270000203 | Rotax Engine 787 (White) | ||
| 270000219 | Engine Support | ||
| 293830008 | Rubber Pad | ||
| 5 | 213000001 | Lock-Washer 8 mm | 5 |
| 4 | 213200002 | Flat Washer 8 mm | 4 |
| 1 | 293850021 | Rubber Strap | 1 |
| 270000122 | Shim 0.3 mm | ||
| 270000123 | SHIM 1.3 MM | ||
| 274000354 | Rubber Pad | ||
| 270000220 | Male Connector, 2 Circuits | ||
| 5 | 213200011 | Flat Washer 8 mm | 5 |
| 215081260 | Hex. Screw M8 x 12 | ||
| 4 | 215084060 | Hex. Screw M8 x 40 | 4 |
| 1 | 293730006 | Black, Dart | 1 |
| 210000001 | SCREW-HEX.CAP DIN.933A2 | ||
| 274000275 | Exhaust Hose 65 mm | ||
| 2 | 293650036 | Tridon Clamp | 2 |
| 2 | 293650061 | TRIDON GEAR CLAMP | 2 |
| 274000276 | Gasket | ||
| 274000277 | Ring | ||
| 274000278 | Muffler Includes 27 to 28 and 52) | ||
| 274000353 | Muffler Support | ||
| 274000170 | Exhaust Hose | ||
| 274000285 | Resonator | ||
| 8 | 210000006 | Hex. Screw M6 x 30 | 8 |
| 1 | 293800015 | Lubrifiant - Deoxit, 250 ml | 1 |
| 215903560 | Socket Head Screw M10 x 35 | ||
| 2 | 215984060 | Allen Screw M8 x 40 | 2 |
| 1 | 293650023 | Tridon Clamp | 1 |
| 274000210 | Cone Pipe ass'y | ||
| 274000357 | Clamp-Exhaust | ||
| 274000169 | Brass Washer | ||
| 1 | 413710300 | Loctite 17914, Sealant, 80 ml | 1 |
| 293750015 | TIE RAP MOUNT | ||
| 1 | 293750001 | Tie Wrap 94 mm | 1 |
| 1 | 293150016 | Rivet 1/8" | 1 |
| 211300017 | Stud M10 | ||
| 1 | 293800005 | Loctite 271, 10 ml | 1 |
| 274000384 | Pipe Support | ||
| 215982060 | Allen Screw M8 x 20 | ||
| 2 | 213000001 | Lock-Washer 8 mm | 2 |
| 290931500 | Gasket | ||
| 16 | 213200001 | Flat Washer 6 mm | 16 |
| 8 | 212000001 | Elastic Stop Nut M6 | 8 |
| 1 | 293800028 | Sealant, <<Heavy Body>>-"U" Black, 300ml | 1 |
| 293710018 | Elbow Fitting 90° | ||
| 1 | 219704454 | Was 293800013 Loctite 56765 | 1 |
| 215681660 | Hex. Screw M8 x 16 | ||
| 3 | 213200011 | Flat Washer 8 mm | 3 |
| 2 | 210000007 | Hexagonal Screw M8 x 30 | 2 |
| 2 | 213200002 | Flat Washer 8 mm | 2 |
| 270000006 | Shim 0.4 mm | ||
| 270000007 | Shim 1.3 mm | ||
| 270000222 | Rubber Mount | ||
| 1 | 270000024 | SHIM 0.4 MM | 1 |
| 1 | 270000025 | SHIM 1.3 MM | 1 |
| 2 | 293850024 | STRAP CLIP | 2 |
| 4 | 293150037 | Avdel Rivet 3/16" | 4 |
