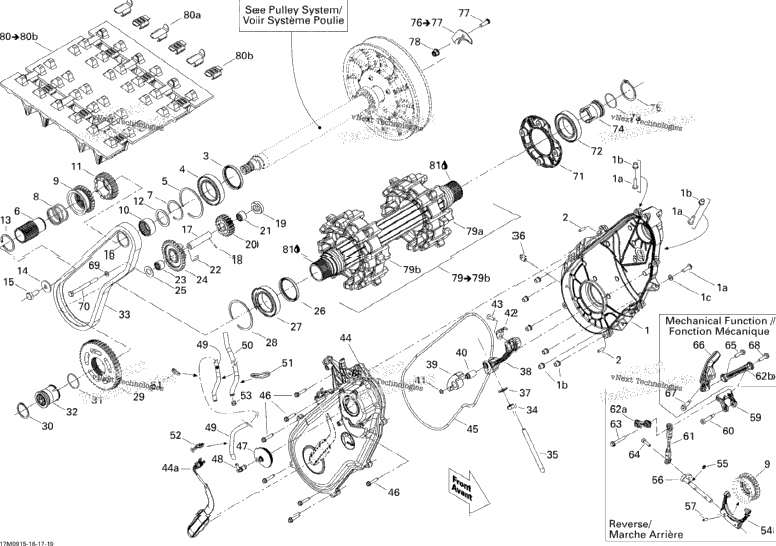

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 504152866 | Chaincase | 1 |
| 3 | 207662034 | Hex. Flange Screw M6 X 20 | 3 |
| 6 | 233261434 | Flange Elastic Nut M6 | 6 |
| 1 | 234061410 | Flat Washer 6 mm | 1 |
| 2 | 250400048 | Dowel Pin | 2 |
| 1 | 415049300 | Oil Seal | 1 |
| 1 | 293350055 | Ball Bearing | 1 |
| 1 | 504152576 | Circlip | 1 |
| 504152687 | Coupling Shaft | ||
| 1 | 293370054 | Circlip | 1 |
| 1 | 504152899 | Spring Release | 1 |
| 504152853 | Sliding Gear, 27 Teeth | ||
| 1 | 293350063 | Needle Bearing | 1 |
| 504152852 | SPROCKET, 24 TEETH | ||
| 1 | 504152689 | Washer | 1 |
| 1 | 293370055 | Circlip | 1 |
| 1 | 504152784 | Spring Washer M10 | 1 |
| 1 | 207102544 | Hex. Screw M10 X 25 | 1 |
| 1 | 504152862 | Washer | 1 |
| 1 | 504083100 | Reverse Shaft | 1 |
| 1 | 250400010 | Rolled Pin M3 X 10 | 1 |
| 1 | 504078700 | Ring | 1 |
| 1 | 581096900 | Sprock Ass'y, 19 Teeth | 1 |
| 1 | 293350064 | Needle Bearing | 1 |
| 1 | 570048600 | Alignement Rod | 1 |
| 1 | 504152724 | Sprocket, 29 Teeth | 1 |
| 1 | 504077300 | Spacer | 1 |
| 1 | 504152571 | Seal | 1 |
| 1 | 504152573 | Ball Bearing | 1 |
| 1 | 504152582 | Circlip | 1 |
| 1 | 504152726 | Sprocket, 43 Teeth | 1 |
| 1 | 504152572 | Circlip | 1 |
| 1 | 293300122 | O-Ring | 1 |
| 1 | 504152619 | Magnetic Cap | 1 |
| 1 | 504152629 | Drive Chain, 104 Links | 1 |
| 1 | 232006414 | Hex. Nut M10 X 1.5 | 1 |
| 1 | 504152602 | Adjustment Screw | 1 |
| 1 | 504152636 | Magnetic Plug 1/8 - 27 NPTF | 1 |
| 1 | 250200100 | Bonded Washer | 1 |
| 1 | 504152748 | Chain Tensioner | 1 |
| 1 | 504152739 | Slider Chain | 1 |
| 1 | 504152841 | Tensioner Axle | 1 |
| 1 | 504152282 | Circlip | 1 |
| 1 | 504152722 | Chain Slider | 1 |
| 1 | 205862044 | Socket Head Screw M6 X 20, Scotch Grip | 1 |
| 504152785 | Chaincase Cover Ass'y | ||
| 1 | 504152732 | Rotation Sensor | 1 |
| 1 | 293300130 | Tight Seal | 1 |
| 7 | 250000360 | Hex. Flange Screw M6 X 1.0 X 30 | 7 |
| 1 | 504152860 | Cap | 1 |
| 1 | 414580700 | Male Connector | 1 |
| 1 | 219704410 | Polyurethane Hose 10000Mm Long | 1 |
| 1 | 504152900 | Protector Tube | 1 |
| 4 | 293750002 | Tie Wrap 142 mm | 4 |
| 291000714 | ATTACHE *BRACKET | ||
| 1 | 414554800 | Spring Clamp | 1 |
| 504152797 | Fork Ass'y | ||
| 1 | 414484400 | O-Ring | 1 |
| 1 | 504152719 | Fork Axle | 1 |
| 1 | 250400045 | Spring Pin M5 X 16 | 1 |
| 1 | 504152788 | Lever | 1 |
| 250000340 | SOCKET HEAD SCREW M8 X 25, SCOTCH GRIP | ||
| 1 | 504152783 | Ball Joint | 1 |
| 1 | 504152710 | Double Ball Joint | 1 |
| 1 | 504152766 | Double Ball Joint Mechanical Reverse | 1 |
| 1 | 205562044 | Socket Head Screw M6 X 20, Scotch Grip | 1 |
| 1 | 207562544 | Hex. Flange Screw M6 X 25 Mechanical Reverse | 1 |
| 1 | 504152712 | Grip Mechanical Reverse | 1 |
| 250000340 | SOCKET HEAD SCREW M8 X 25, SCOTCH GRIP Mechanical Reverse | ||
| 1 | 504082900 | Washer | 1 |
| 1 | 207089044 | Hex. Screw M8 X 90 | 1 |
| 1 | 507032437 | Bearing Housing | 1 |
| 1 | 293350059 | Ball Bearing | 1 |
| 1 | 504152633 | Bearing Housing Includes 76 to 77 | 1 |
| 1 | 250300028 | Clinch Stud, M8 X 25 | 1 |
| 1 | 233281414 | Hex. Flange Elastic Nut M8 | 1 |
| 1 | 504152894 | Axle Drive Ass'y Includes 79 to 79b | 1 |
| XXXX | Not Available As Spare Part - Sprocket 8th | ||
| 1 | 504152606 | Track Ass'y 15"X120"X1.2RS" Includes 80 to 80b | 1 |
| 1 | 504152760 | TRACK ASS'Y, 15X120X1.0 Includes 80 to 80b, TNT | 1 |
| 1 | 504152410 | Guide | 1 |
| 1 | 504152651 | Cleat | 1 |
| 219700417 | SYNTHETIC GREASE, 400 G |
