Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|

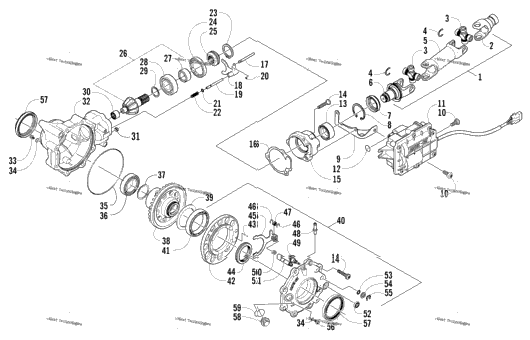

| 1 | 0502-615 | GEARCASE, FRONT (3.6) - ASSEMBLY | 1 |
| 0502-381 | DRIVESHAFT, FRONT - ASSEMBLY (inc. 2-6) | ||
| 1 | 0502-521 | YOKE, FRONT SLIP - ASSEMBLY | 1 |
| 2 | 1402-164 | CROSS, UNIVERSAL(20mm)-SET (inc. 4) | 2 |
| 8 | 0423-450 | RING,RETAINING-CROSS | 8 |
| 0502-524 | DRIVESHAFT, FRONT - BLACK | ||
| 1 | 0502-517 | YOKE, FRONT END - ASSEMBLY | 1 |
| 1 | 1402-011 | Seal | 1 |
| 1 | 0423-423 | Ring, Retaining | 1 |
| 1 | 0502-347 | BRACKET,ACTUATOR-WELDMENT | 1 |
| 3 | 0423-396 | Screw, Self-Tapping | 3 |
| 0502-579 | ACTUATOR (4 WIRE) (inc. 12) | ||
| 1 | 0423-892 | O-RING (8X1.5) | 1 |
| 1 | 1402-043 | Bearing | 1 |
| 11 | 0423-118 | Screw, Self-Tapping | 11 |
| 1 | 0502-528 | Housing, Pinion | 1 |
| 1 | 0402-947 | Gasket, Flange | 1 |
| 1 | 0402-997 | Shaft, Selector | 1 |
| 1 | 0402-998 | Fork, Selector | 1 |
| 1 | 0402-417 | Shaft, Shuttle | 1 |
| 1 | 0423-402 | Ring, Retaining | 1 |
| 1 | 0423-147 | O-Ring | 1 |
| 1 | 0402-999 | Spring, Return | 1 |
| 1 | 0423-417 | Ring, Retaining | 1 |
| 0402-357 | Collar, Lock | ||
| 1 | 0402-413 | Coupler, Drive | 1 |
| 0502-123 | GEAR,PINION (10T) SUB-ASSY (inc. 27-29) | ||
| 0402-336 | Collar, Retaining | ||
| 1 | 0402-327 | Bearing | 1 |
| 0402-424 | SHIM,25.7X34.9X1.3 | ||
| 1 | 0402-425 | SHIM,25.7X34.9X1.4 | 1 |
| 1 | 0402-426 | SHIM,25.7X34.9X1.5 | 1 |
| 0402-427 | SHIM,25.7X34.9X1.6 | ||
| 1 | 0402-428 | SHIM,25.7X34.9X1.7 | 1 |
| 1 | 0402-328 | Bearing | 1 |
| 1 | 0402-411 | Pin, Dowel | 1 |
| 0502-514 | Housing, Gearcase | ||
| 1 | 1402-210 | Plug, Magnetic (inc. one No. 34) | 1 |
| 2 | 0423-153 | O-Ring | 2 |
| 1 | 0423-149 | O-Ring | 1 |
| 1 | 0402-393 | Bearing | 1 |
| 1 | 0402-405 | Shim, 41 x 49 x 1.3 mm | 1 |
| 1 | 0402-406 | Shim, 41 x 49 x 1.4 mm | 1 |
| 1 | 0402-407 | Shim, 41 x 49 x 1.5 mm | 1 |
| 1 | 0402-408 | Shim, 41 x 49 x 1.6 mm | 1 |
| 1 | 0402-409 | Shim, 41 x 49 x 1.7 mm | 1 |
| 0502-411 | GEAR, FRONT (36 TOOTH) - WELDMENT | ||
| 1 | 1402-074 | SHIM, 1.3 | 1 |
| 1 | 1402-075 | SHIM, 1.4 | 1 |
| 1 | 1402-076 | SHIM, 1.5 | 1 |
| 1 | 1402-077 | SHIM, 1.6 | 1 |
| 1 | 1402-078 | SHIM, 1.7 | 1 |
| 0502-434 | COVER, LOCKER - ASSY (inc. one No. 34, 41-56, and one No. 57) | ||
| 1 | 1402-053 | BEARING, BALL (6912 C3) | 1 |
| 1 | 0502-413 | FLANGE,BEARING-MACH | 1 |
| 1402-079 | PIN, PARALLEL | ||
| 1 | 1402-042 | COLLAR, SLIDING - LOCK | 1 |
| 1 | 1402-054 | FORK | 1 |
| 2 | 1402-058 | RING, RETAINING | 2 |
| 1 | 1402-057 | SPRING | 1 |
| 1 | 1402-104 | Fitting | 1 |
| 1 | 0402-419 | SWITCH, INDICATOR | 1 |
| 1 | 1402-063 | SPRING | 1 |
| 1 | 1402-055 | SHAFT, LOCK | 1 |
| 1 | 1402-056 | SEAL | 1 |
| 0423-133 | O-RING | ||
| 1 | 0423-132 | WASHER,SS-10.63x17.75x1.48 | 1 |
| 1 | 0423-424 | RING, RETAINING | 1 |
| 1 | 1402-211 | Plug, Oil Level (inc. one No. 34) | 1 |
| 2 | 2402-150 | SEAL,GEARCASE-HR | 2 |
| 1 | 0402-333 | Plug, Fill (inc. 59) | 1 |
| 1 | 0423-154 | O-Ring | 1 |
