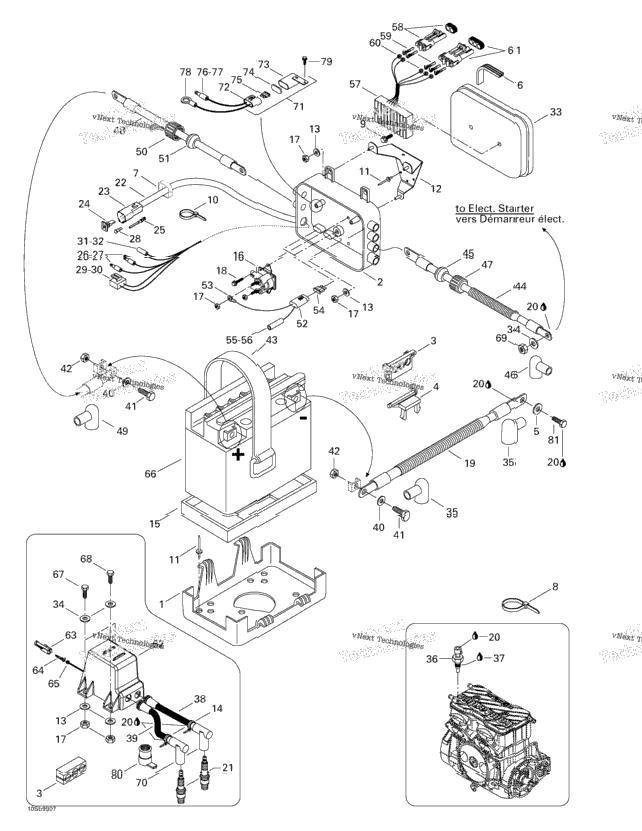

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 278001430 | Battery Support | ||
| 278001425 | ELECTRIC BOX BASE | ||
| 2 | 278000245 | 3 WIRE SUPPORT | 2 |
| 278001096 | Collar Support | ||
| 1 | 234081600 | Stainless, Flat Washer 8 mm | 1 |
| 278001173 | GASKET | ||
| 293200030 | Gasket | ||
| 1 | 293750002 | Tie Wrap 142 mm | 1 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
| 2 | 211000106 | Hex. Forming Screw M6 X 16 | 2 |
| 1 | 293750001 | Tie Wrap 94 mm | 1 |
| 7 | 293150037 | Avdel Rivet 3/16" | 7 |
| 278001426 | Electric Box Support Ass'y | ||
| 6 | 234062600 | Flat Washer M6, Stainless | 6 |
| 2 | 293750002 | Tie Wrap 142 mm | 2 |
| 278001234 | Battery Lower Pad | ||
| 1 | 278001376 | Starter Relay | 1 |
| 8 | 232561600 | Hex. Elastic Stop Nut M6 | 8 |
| 2 | 210261040 | Hex. Flange Screw M6 X 10 | 2 |
| 278001010 | Battery Ground Cable | ||
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 2 | 278000609 | Spark Plug, NGK BR8-ES | 2 |
| 278000945 | Electric Box Harness Includes 22 - 32. | ||
| 1 | 270000137 | Female Connector, 6 Circuits | 1 |
| 1 | 278000735 | Female Lock, 6 Circuits | 1 |
| 5 | 278000631 | Male Terminal | 5 |
| 2 | 278000230 | Male Terminal | 2 |
| 2 | 278001008 | Insulated Sheath | 2 |
| 1 | 293000052 | Sealing Cap | 1 |
| 1 | 278001113 | Male Connector, 2 Circuits | 1 |
| 2 | 278001114 | Female Terminal | 2 |
| 1 | 278001009 | Female Terminal | 1 |
| 1 | 278001007 | Insulated Sheath | 1 |
| 1 | 278001432 | ELECTRICAL BOX COVER | 1 |
| 4 | 234061600 | Stainless, Flat Washer M6 | 4 |
| 2 | 278000020 | PROTECTION CAP | 2 |
| 1 | 278001016 | Temperature Sensor | 1 |
| 1 | 219704456 | Était/Was 293800038 Loctite 518, 50 ml | 1 |
| 278001465 | Spark Plug Wire | ||
| 278001464 | Spark Plug Wire, 270 mm | ||
| 2 | 211200018 | FLAT WASHER 6 MM | 2 |
| 2 | 211000045 | Battery Screw | 2 |
| 2 | 211100022 | Battery Nut M6 | 2 |
| 2 | 293850021 | Rubber Strap | 2 |
| 278001140 | Startor Cable (Red) Includes 44 - 47. | ||
| 278000098 | GROMMET | ||
| 1 | 278000020 | PROTECTION CAP | 1 |
| 278000100 | Electric Wire Cap | ||
| 278001274 | Battery Cable (Red) Includes 48 - 51. | ||
| 278001142 | Fuse Harness (20 Amperes) Includes 52 - 56. | ||
| 278000300 | Ring Terminal | ||
| 2 | 278001143 | Fuse, 20 amperes | 2 |
| 2 | 278001009 | Female Terminal | 2 |
| 2 | 278001007 | Insulated Sheath | 2 |
| 1 | 278001241 | Rectifier Ass'y Includes 57 - 61. | 1 |
| 1 | 278000220 | Male Connector, 2 Circuits | 1 |
| 5 | 409007300 | Female Terminal | 5 |
| 5 | 278000218 | Wire Seal | 5 |
| 1 | 278000273 | Male Housing, 3 Circuits | 1 |
| 278001463 | Ignition Coil ass'y Includes 62 - 65. | ||
| 1 | 278000161 | Female Housing, 1 Circuit | 1 |
| 1 | 409004300 | Male Terminal | 1 |
| 1 | 278000218 | Wire Seal | 1 |
| 1 | 278000712 | Battery | 1 |
| 2 | 207063060 | Hex. Screw M6 X 30 | 2 |
| 1 | 207064060 | Hex. Screw M6 X 40 | 1 |
| 1 | 212000001 | Elastic Stop Nut M6 | 1 |
| 2 | 278000237 | Spark Plug Cap | 2 |
| 278001384 | Fuse Harness Includes 71 - 78. | ||
| 1 | 278001325 | Fuse Holder | 1 |
| 1 | 278001326 | Fuse Holder Cap | 1 |
| 1 | 278000805 | Cushion | 1 |
| 1 | 409012800 | FUSE, 1 AMPERE | 1 |
| 1 | 278000230 | Male Terminal | 1 |
| 1 | 278001008 | Insulated Sheath | 1 |
| 278000300 | Ring Terminal GTX RFI 5886/5887. | ||
| 211000037 | Phillips Screw 10-14 X 7/8” | ||
| 2 | 278001380 | PROTECTOR CAP | 2 |
| 1 | 207382560 | Hex. Screw M8 X 25, Scotch Grip | 1 |
