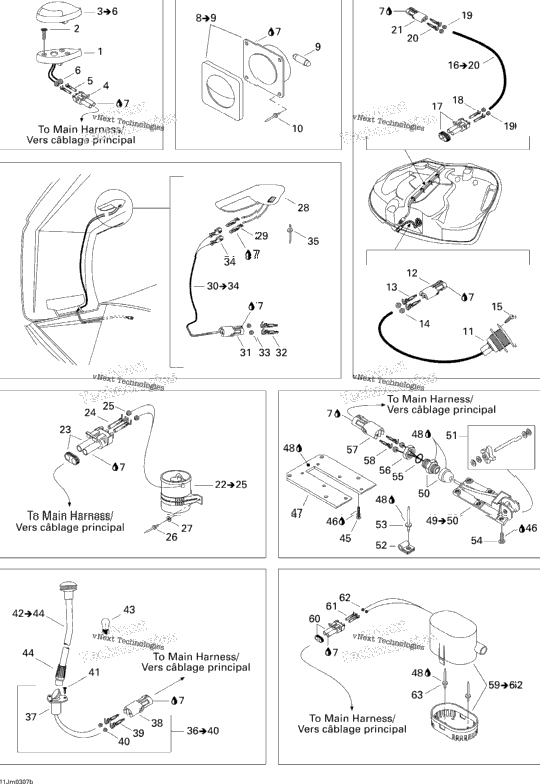

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 204470072 | FRONT LAMP SUPPORT | 2 |
| 209642560 | PHILLIPS SCREW M4.2 X 25 | ||
| 1 | 204470407 | NAVIGATION LIGHT, GREEN, STARBOARD Includes items 3 to 6 | 1 |
| 204470409 | Navigation Light, Red, Port Side | ||
| 2 | 204470528 | Female Terminal Housing, 2 Circuits | 2 |
| 4 | 278001014 | Female Terminal | 4 |
| 4 | 278001013 | Wire Seal | 4 |
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 5 | 204470026 | Courtesy Light Ass'y Includes items 8 to 9 | 5 |
| 1 | 204470081 | BULB | 1 |
| 20 | 293150032 | RIVET_POP 1/8 X ,487 | 20 |
| 204470412 | Engine Compartment Light | ||
| 1 | 278000217 | Female Housing, 2 Circuits | 1 |
| 2 | 278000222 | Male Terminal | 2 |
| 2 | 278000218 | Wire Seal | 2 |
| 3 | 241142560 | Hex. Flange Screw K40 X 25 | 3 |
| 1 | 204470551 | LIGHT HARNESS Includes items 16 to 20 | 1 |
| 1 | 278000220 | Male Connector, 2 Circuits | 1 |
| 2 | 409007300 | Female Terminal | 2 |
| 4 | 278000218 | Wire Seal | 4 |
| 1 | 204470108 | Fan Ass'y Includes items 22 to 25 | 1 |
| 2 | 278000223 | Female Terminal | 2 |
| 2 | 293150011 | Pop Rivet 3/16" | 2 |
| 2 | 234052600 | Flat Washer 5 mm, Stainless | 2 |
| 1 | 204470414 | TOILET LIGHT ASS?Y | 1 |
| 204470553 | Male Terminal | ||
| 204470552 | Toilet Light Harness Includes items 30 to 34 | ||
| XXXX | Not Available As Spare Part - Female Terminal | ||
| 293150029 | RIVET_POP 5/32 | ||
| 278000674 | Rear Light Base Ass'y Includes items 36 to 40 | ||
| XXXX | Not Available As Spare Part - Rear Lamp Base | ||
| 3 | 209943260 | Phillips Tapping Screw M4.2 X 32 | 3 |
| 204470816 | Rear Lamp Pole Includes items 42 to 44 | ||
| 204470053 | Bulb | ||
| 1 | 204470350 | COLLAR | 1 |
| 4 | 208563560 | Phillips Screw M6 X 35 | 4 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 204470538 | Sensor Support | ||
| 1 | 296000309 | Silicone Sealant 51388, 300 ml | 1 |
| 278000970 | SPEED SENSOR ASSY Includes items 49 to 50 | ||
| 1 | 293710031 | ELECTRIC CONNECTION | 1 |
| 295500108 | Paddle Wheel Kit | ||
| 204100026 | Cable Clamp 3/16” | ||
| 3 | 293150088 | Pop Rivet 3/16" | 3 |
| 208551060 | PHILLIPS SCREW M5 X 10 | ||
| 1 | 278000416 | SEAL WASHER | 1 |
| 1 | 293710032 | LOCKING NUT | 1 |
| 2 | 278000217 | Female Housing, 2 Circuits | 2 |
| 204471431 | Bilge Pump Includes items 59 to 62 |
