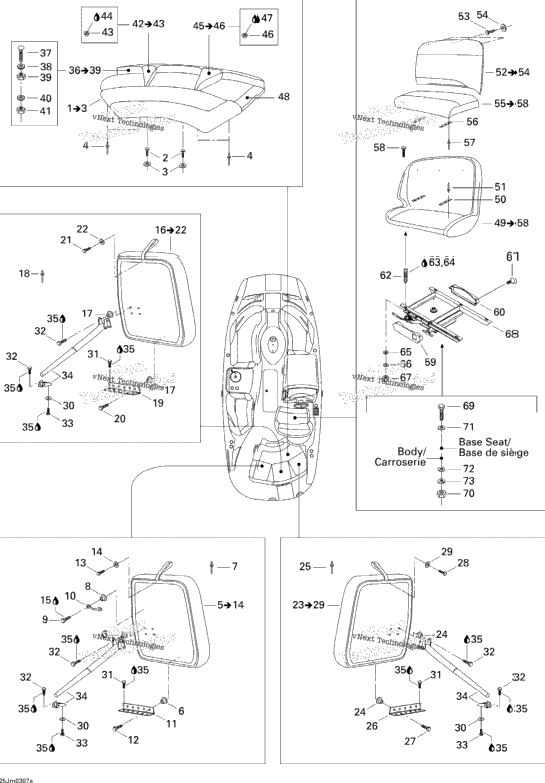

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 204612279 | Cushion Ass’y Includes items 1 to 3 | ||
| 2 | 293730014 | Black Dart | 2 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 4 | 293150013 | Pop Rivet 3/16" | 4 |
| 204612287 | LH Backrest Ass'y Includes items 5 to 14 | ||
| 9 | 204100021 | TEE-NUT 1/4?- 20 | 9 |
| 4 | 293150043 | Pop Rivet 3/16" | 4 |
| 2 | 204100044 | TEE-NUT #10-32 | 2 |
| 204100045 | SOCKET HEAD SCREW 10-32 X .75 | ||
| 204610988 | Chain Pad | ||
| 204610750 | BACKREST HINGE | ||
| 5 | 204100035 | SOCKET HEAD SCREW 1/4? X 3/4? | 5 |
| 1 | 204100054 | SCREW 8 X 3/4? | 1 |
| 1 | 234042600 | Flat Washer 4 mm, Stainless | 1 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 204612295 | Center Backrest Ass’y Includes items 16 to 22 | ||
| 204612300 | RH Backrest Ass’Y Includes items 23 to 29 | ||
| 3 | 234062600 | Flat Washer M6, Stainless | 3 |
| 18 | 204100036 | SOCKET HEAD SCREW 1/4? X 1-1/4? | 18 |
| 15 | 204100037 | SOCKET HEAD SCREW 1/4? X 1? | 15 |
| 3 | 204100035 | SOCKET HEAD SCREW 1/4? X 3/4? | 3 |
| 204610749 | Locking Support | ||
| 204612305 | Spoiler Ass’y Includes items 36 to 39 | ||
| 204000130 | Elevator Bolt | ||
| 4 | 234461608 | External Serrated Lock Washer 6 mm | 4 |
| 211100026 | HEX. NUT 1/4 | ||
| 4 | 234082600 | Flat Washer 8 mm, Stainless | 4 |
| 204612309 | RH Pad Ass’Y Includes items 42 to 43 | ||
| 2 | 204100021 | TEE-NUT 1/4?- 20 | 2 |
| 204612313 | LH Pad Ass’Y Includes items 45 to 46 | ||
| 204612317 | Pad Ass’y | ||
| 204612319 | Driver Seat Ass’y Includes items 49 to 58 | ||
| 293740007 | Velcro Strip | ||
| 293150065 | RIVET | ||
| 204612328 | Backrest Ass’y Includes items 52 to 54 | ||
| 3 | 293730014 | Black Dart | 3 |
| 204612333 | Cushion Ass’y Includes items 55 to 58 | ||
| 2 | 293740004 | VELCRO STRIP | 2 |
| 6 | 293150008 | Pop Rivet 3/16" | 6 |
| 2 | 209943260 | Phillips Tapping Screw M4.2 X 32 | 2 |
| 204610375 | Front Protector | ||
| 204610376 | Rear Protector | ||
| 1 | 293730006 | Black, Dart | 1 |
| 5 | 204100077 | THREADED STUD 1/4-20 X 1-1/4 | 5 |
| 1 | 293800005 | Loctite 271, 10 ml | 1 |
| 1 | 219704458 | Was 293800041 Loctite Primer 7649 | 1 |
| 5 | 211200019 | FLAT WASHER | 5 |
| 5 | 211200025 | Lock Washer 1/4” | 5 |
| 5 | 212000005 | NUT-STOP ELASTIC MS-17830 | 5 |
| 1 | 204611540 | SWIVEL BASE SEAT | 1 |
| 6 | 207185560 | HEX. SCREW M8 X 55 | 6 |
| 6 | 232581600 | Hex. Elastic Nut M8 | 6 |
| 6 | 234081600 | Stainless, Flat Washer 8 mm | 6 |
| 6 | 234082600 | Flat Washer 8 mm, Stainless | 6 |
| 6 | 234181601 | Lock Washer 8 mm, Stainless | 6 |
