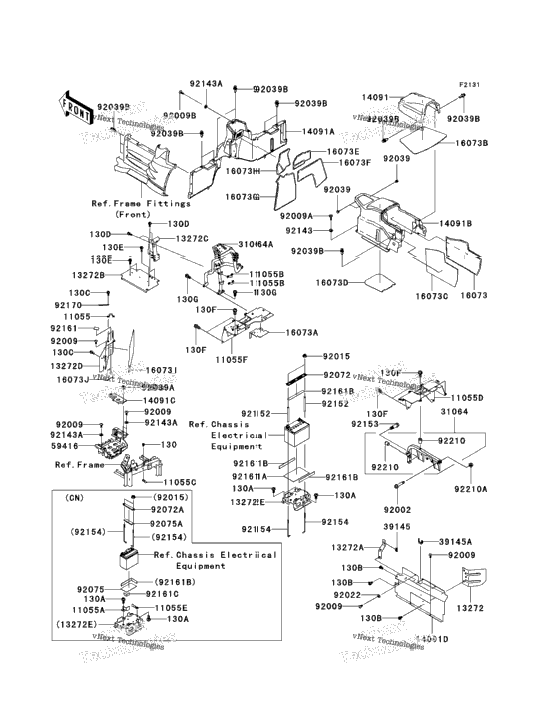

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 11055-0419 | BRACKET | 1 |
| 1 | 11055-0433 | BRACKET [CN] | 1 |
| 2 | 11055-0896 | BRACKET | 2 |
| 1 | 11055-1384 | BRACKET | 1 |
| 1 | 11055-1409 | BRACKET,SEAT LOCK PLA | 1 |
| 11055-1656 | BRACKET,BATTERY STOPP [CN] | ||
| 11055-1814 | BRACKET,SEAT LOCK | ||
| 1 | 13272-0318 | PLATE | 1 |
| 1 | 13272-0351 | PLATE | 1 |
| 1 | 13272-0421 | PLATE,TUNNEL PLATE | 1 |
| 1 | 13272-0434 | PLATE | 1 |
| 1 | 13272-0731 | PLATE,HEAT GUARD | 1 |
| 1 | 13272-0748 | PLATE,BATTERY HOLDER | 1 |
| 14091-0975-6Z | COVER,CONSOLE CENTER, | ||
| 1 | 14091-0982-6Z | COVER,SEAT,F.BLACK | 1 |
| 14091-1724-6Z | COVER,CONSOLE CENTER, | ||
| 1 | 14091-1761 | COVER,ELECTRIC | 1 |
| 14091-1805 | COVER,HEAT | ||
| 1 | 16073-0092 | INSULATOR,CENTER CONS | 1 |
| 1 | 16073-0097 | INSULATOR,SEAT BRACKE | 1 |
| 1 | 16073-0102 | INSULATOR,AIR CLEANER | 1 |
| 1 | 16073-0103 | INSULATOR,CENTER CONS | 1 |
| 1 | 16073-0104 | INSULATOR,CENTER CONS | 1 |
| 1 | 16073-0105 | INSULATOR,LEG COVER,C | 1 |
| 1 | 16073-0106 | INSULATOR,LEG COVER,C | 1 |
| 1 | 16073-0107 | INSULATOR,LEG COVER,C | 1 |
| 1 | 16073-0108 | INSULATOR,LEG COVER,C | 1 |
| 1 | 16073-0112 | INSULATOR,EXHAUST PIP | 1 |
| 1 | 16073-0113 | INSULATOR,EXHAUST PIP | 1 |
| 1 | 31064-0181 | PIPE-COMP | 1 |
| 1 | 31064-0194 | PIPE-COMP | 1 |
| 1 | 39145-0035 | TRIM-SEAL,L=53 | 1 |
| 1 | 39145-0040 | TRIM-SEAL,L=120 | 1 |
| 1 | 59416-0018 | CASE-ELECTRIC | 1 |
| 1 | 92002-1740 | BOLT,FLANGED,10X46 | 1 |
| 9 | 92009-1166 | SCREW,TAPPING,6X16 | 9 |
| 2 | 92009-1256 | SCREW,6X22,BLACK | 2 |
| 1 | 92009-1621 | SCREW,6X16 | 1 |
| 1 | 130BA0510 | BOLT-FLANGED,5X10 | 1 |
| 3 | 130BA0818 | BOLT-FLANGED,8X18 [US] | 3 |
| 5 | 130BA0818 | BOLT-FLANGED,8X18 [CN] | 5 |
| 5 | 130BB0612 | BOLT-FLANGED,6X12 | 5 |
| 3 | 130BB0614 | BOLT-FLANGED,6X14 | 3 |
| 6 | 130BB0616 | BOLT-FLANGED,6X16 | 6 |
| 4 | 130BB0620 | BOLT-FLANGED,6X20 | 4 |
| 8 | 130BB1020 | BOLT-FLANGED,10X20 | 8 |
| 4 | 130CA0820 | BOLT-FLANGED,8X20 | 4 |
| 2 | 92015-1406 | NUT,FLANGED,8MM | 2 |
| 3 | 92022-1093 | WASHER,6.5X16X1.0 | 3 |
| 3 | 92039-0046 | RIVET | 3 |
| 1 | 92039-0086 | RIVET | 1 |
| 92039-1229 | RIVET | ||
| 1 | 92072-0128 | BAND,BATTERY,UPP [US] | 1 |
| 1 | 92072-1233 | BAND,BATTERY [CN] | 1 |
| 1 | 92075-1076 | DAMPER [CN] | 1 |
| 1 | 92075-1214 | DAMPER [CN] | 1 |
| 2 | 92143-1057 | COLLAR | 2 |
| 4 | 92143-1087 | COLLAR | 4 |
| 2 | 92152-0794 | COLLAR,10.22X12.7X158 [US] | 2 |
| 1 | 92153-1742 | BOLT,FLANGED,10X38 | 1 |
| 2 | 92154-0137 | BOLT,BATTERY | 2 |
| 1 | 92161-0273 | DAMPER | 1 |
| 1 | 92161-0578 | DAMPER [US] | 1 |
| 1 | 92161-0579 | DAMPER [CN] | 1 |
| 3 | 92161-0579 | DAMPER [US] | 3 |
| 1 | 92161-0580 | DAMPER [CN] | 1 |
| 1 | 92170-1925 | CLAMP | 1 |
| 2 | 92210-0507 | NUT,POP,10MM | 2 |
| 1 | 92210-1080 | NUT,LOCK,FLANGED,10MM | 1 |
