Интерактивное демо базы запчастей
Просматривайте запчасти для ATV, мотоциклов, снегоходов, водных моторов и другой техники по марке, году и модели. Каталог доступен для покупки в виде базы данных SQL с изображениями или для аренды.

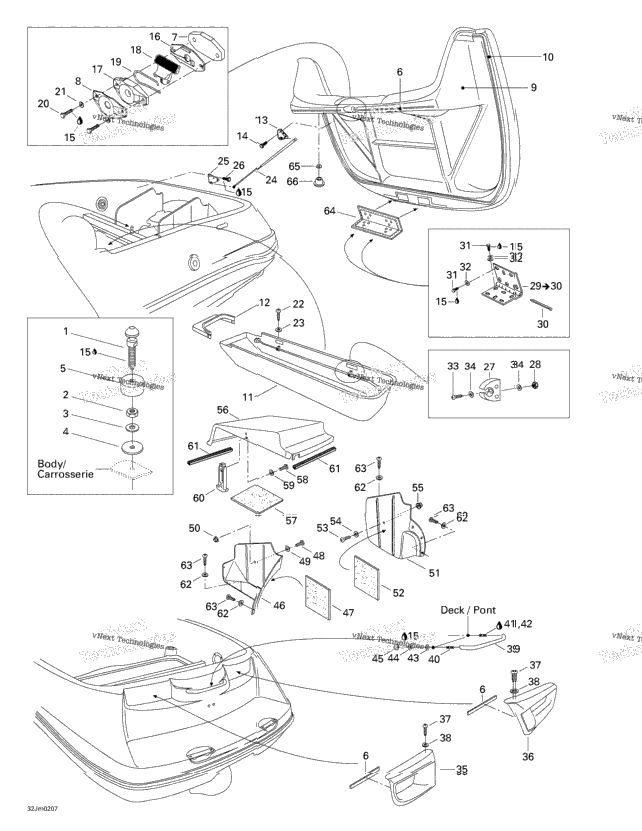

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 204100065 | Latch Stud | ||
| 1 | 232100600 | Hex. Jam Nut M10 | 1 |
| 1 | 234002600 | Flat Washer 10 mm, Stainless | 1 |
| 1 | 291000628 | RUBBER WASHER | 1 |
| 293830025 | Rubber Pad | ||
| 1 | 219704365 | Was 293200017 Neoprene Seal | 1 |
| 1 | 269700015 | SHIM | 1 |
| 204070952 | LATCH PROTECTOR | ||
| 204071478 | Engine Cover | ||
| 1 | 219704368 | Seal Tray 1000Mm Long | 1 |
| 204071177 | Rear Seat Storage | ||
| 204071329 | Cap End | ||
| 291000654 | CYLINDER SUPPORT | ||
| 4 | 207151660 | HEX. SCREW M5 X 16 | 4 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 1 | 269700076 | Latch Cover | 1 |
| 1 | 269000015 | Latch Base | 1 |
| 1 | 269000016 | Latch Lever | 1 |
| 1 | 269700017 | Latch Spring | 1 |
| 2 | 207065060 | Hex. Screw M6 X 50 | 2 |
| 2 | 234061600 | Stainless Flat Washer M6 | 2 |
| 7 | 204100049 | PHILLIPS TAPPING SCREW #8 X 1 | 7 |
| 204100057 | FINITION WASHER | ||
| 204071087 | Air Shock, 90 Lb | ||
| 291000615 | Shock Support | ||
| 207152560 | HEX. SCREW M5 X 25 | ||
| 291000642 | Pole Support | ||
| 2 | 232541600 | Elastic Stop Nut M4 | 2 |
| 204070127 | HINGE ASS'Y Includes 29 - 30. | ||
| 204070205 | Cotter Pin M2.5 X 12 | ||
| 24 | 207162560 | Hex. Screw M6 X 25 | 24 |
| 24 | 234061600 | Stainless Flat Washer M6 | 24 |
| 2 | 208642560 | PHILLIPS SCREW M4 X 25 | 2 |
| 4 | 234040600 | Flat Washer 4 mm | 4 |
| 204071365 | Vent Cover Ass'y (Port Side) (Single dis UTOPIA 200 OPTIMAX. UTOPIA 210. UTOPIA 240 EFI. | ||
| 204071500 | Vent Cover Ass’y, Port Side | ||
| 204071366 | Vent Cover Ass'y (Starboard) (Single dis UTOPIA 200 OPTIMAX. UTOPIA 210. UTOPIA 240 EFI. | ||
| 204071502 | Vent Cover Ass’y, Starboard | ||
| 4 | 204100049 | PHILLIPS TAPPING SCREW #8 X 1 | 4 |
| 1 | 204071122 | GRAB HANDLE | 1 |
| 204100031 | Threaded Stud | ||
| 1 | 219704458 | Was 293800041 Loctite Primer 7649 | 1 |
| 1 | 293800005 | Loctite 271, 10 ml | 1 |
| 2 | 234002600 | Flat Washer 10 mm, Stainless | 2 |
| 2 | 234101601 | Helicoidal Lock Washer M10 | 2 |
| 2 | 211100063 | HEX. NUT 3/8-16 | 2 |
| 204071079 | Bulkhead Panel (Port Side) | ||
| 204071399 | Sound Barrier (Port Side) | ||
| 1 | 208651660 | SCREW M5 X 16 | 1 |
| 1 | 234052600 | Flat Washer 5 mm, Stainless | 1 |
| 204071384 | Strap Retainer | ||
| 204071230 | Bulkhead Panel (Starboard) | ||
| 204071401 | Sound Barrier (Starboard) | ||
| 204071229 | Bulkhead Cap 185 | ||
| 204071402 | Sound Barrier For Cap | ||
| 204071732 | Bulkhead Cap 205 | ||
| 4 | 208651660 | SCREW M5 X 16 | 4 |
| 4 | 234052600 | Flat Washer 5 mm, Stainless | 4 |
| 204071330 | Rubber Latch | ||
| 16 | 209943260 | Phillips Tapping Screw M4.2 X 32 | 16 |
| 204611845 | Hinge Cover | ||
| 204611608 | Hinge Cover (Utopia 185) | ||
| 6 | 234062600 | Flat Washer M6, Stainless | 6 |
| 6 | 291000279 | Black Plug | 6 |
