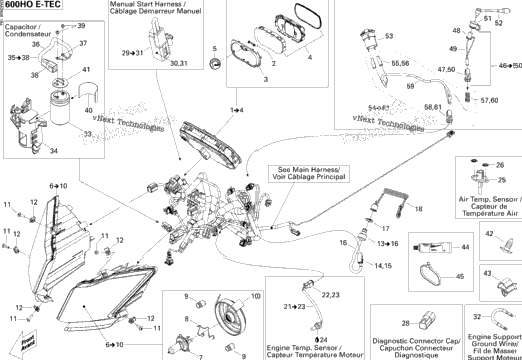

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 515176755 | Speedometer Ass'y Includes 1 to 4 | 1 |
| 1 | 415129355 | Speedometer Button | 1 |
| 1 | 415129348 | Gauge Ring | 1 |
| 1 | 415129349 | Lens | 1 |
| 1 | 219902677 | BRP Logo 20 mm | 1 |
| 1 | 517304194 | RH Headlamp Ass'y Includes 6 to 10 | 1 |
| 1 | 517304195 | LH Headlamp Ass'y Includes 6 to 10 | 1 |
| 1 | 515176274 | Halogen Bulb, 60/55 W, 12 V ( H4 ) | 1 |
| XXXX | Not Available As Spare Part - Bulb Holder | ||
| 2 | 515176498 | Cap | 2 |
| 1 | 515176499 | Cover | 1 |
| 5 | 250000128 | Torx Truss Screw M6 X 20 | 5 |
| 5 | 250000048 | Panel Nut M6 X 1.0 | 5 |
| 1 | 515176815 | Dess Switch Includes 13 to 16 | 1 |
| 3 | 515175232 | Male Terminal | 3 |
| 1 | 515175494 | Male Housing, 3 Circuits | 1 |
| 409902000 | Tubing 12 mm | ||
| 1 | 278000508 | Safety Switch Nut | 1 |
| 1 | 515176461 | DESS Cap | 1 |
| 1 | 515176398 | Temperature Sensor Includes 21 to 23 | 1 |
| 1 | 515175670 | Female Terminal Housing, 2 Circuits | 1 |
| 2 | 278000632 | Female Terminal | 2 |
| 1 | 219704455 | Was 293800018 Loctite 592, 50 ml | 1 |
| 1 | 515176366 | Air Temperature Sensor | 1 |
| 2 | 389804300 | Push Nut | 2 |
| 1 | 515176234 | FEMALE TERMINAL HOUSING, 6 CIRCUITS | 1 |
| 1 | 515176661 | MANUAL START HARNESS Includes 29 to 31 | 1 |
| 2 | 515175232 | Male Terminal | 2 |
| 1 | 710000667 | Male Housing, 2 Circuits | 1 |
| 1 | 515176358 | Ground Wire | 1 |
| 1 | 515176349 | Capacitor | 1 |
| 1 | 515176607 | Capacitor Support | 1 |
| 1 | 515176605 | Capacitor Harness Includes 35 to 38 | 1 |
| 1 | 219704425 | Tubing 6 Mm 3000Mm Long | 1 |
| 2 | 515175504 | Ring Terminal | 2 |
| 1 | 278001674 | Mâle Terminal Housing, 2 Circuits | 1 |
| 2 | 515176542 | SCREW 10-32 X 5/16 | 2 |
| 1 | 516002976 | CAPACITOR DECAL | 1 |
| 1 | 515176351 | Cap | 1 |
| 2 | 414644300 | Black, Dart | 2 |
| 1 | 515176795 | Tie Rap Mount (screwable) | 1 |
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 1 | 293750002 | Tie Wrap 142 mm | 1 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
| 1 | 293750001 | Tie Wrap 94 mm | 1 |
| 1 | 515175799 | Visor Plug Harness Includes 46 to 50 | 1 |
| 1 | 515175232 | Male Terminal | 1 |
| 515175172 | OPEN BARREL | ||
| 1 | 219704424 | Vinyl Tubing, Low Temp 3000Mm Long | 1 |
| 1 | 515175654 | Male Terminal Housing, 2 Circuits | 1 |
| 1 | 572103300 | Cap | 1 |
| 1 | 515175851 | Extension | 1 |
| 1 | 710001248 | DC Outlet | 1 |
| 1 | 515176527 | Power Outlet Harness - Call Your Local BRP Dealership Includes 54 to 61 | 1 |
| 1 | 409010100 | Female Terminal | 1 |
| 1 | 409010400 | Female Terminal Housing, 1 Circuit | 1 |
| 1 | 515175231 | Female Terminal | 1 |
| 1 | 515175658 | Female Housing, 2 Circuits | 1 |
