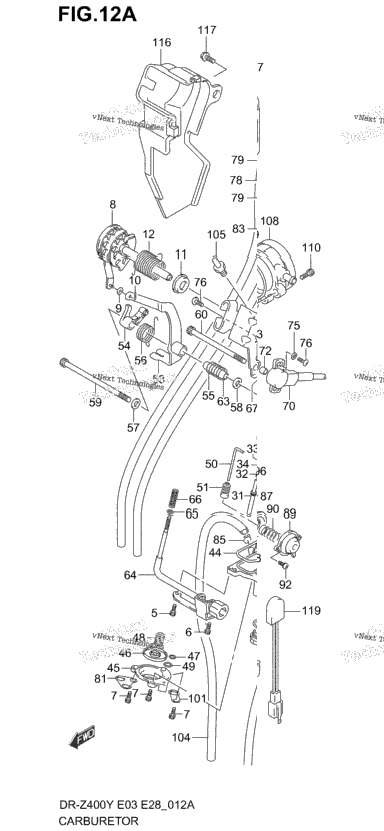

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 13200-29FF0 | CARBURETOR ASSY DR-Z400K3/K4 | 1 |
| 13200-29FH0 | CARBURETOR ASSY DR-Z400EK3/EK4 | ||
| 13200-29F20 | CARBURETOR ASSY E33; Includes Item(s) 1 - 106 | ||
| 13261-29F00 | TOP | ||
| 1 | 13266-29F00 | TOP WASHER | 1 |
| 2 | 13612-29F10 | BOLT (4X12) | 2 |
| 1 | 13612-29F10 | BOLT (4X12) | 1 |
| 1 | 13612-29F20 | BOLT (4X14) DR-Z400K3/K4 | 1 |
| 1 | 13612-29F10 | BOLT (4X12) DR-Z400EK3/EK4 | 1 |
| 13612-29F30 | BOLT (4X8) | ||
| 13550-29F00 | SHAFT, THROTTLE | ||
| 13418-29F00 | WASHER | ||
| 13544-29F00 | PIN | ||
| 1 | 13574-29F00 | COLLAR | 1 |
| 13573-29F00 | SPRING | ||
| 1 | 13572-29F00 | WASHER | 1 |
| 13564-29F00 | LINK ARM | ||
| 13607-29F00 | NUT | ||
| 13605-29F00 | SCREW | ||
| 13551-29F00 | VALVE, THROTTLE | ||
| 1 | 13570-29F00 | BEARING | 1 |
| 1 | 13555-29F00 | VALVE | 1 |
| 1 | 13559-29F00 | LIP SEAL | 1 |
| 1 | 13383-29F00 | NEEDLE, JET | 1 |
| 1 | 13394-29F00 | BAR CLIP | 1 |
| 13605-29F10 | SCREW, NEEDLE SET | ||
| 1 | 13342-29F00 | MAIN NOZZLE | 1 |
| 1 | 09491-28020 | JET, MAIN (142) | 1 |
| 1 | 09491-40014 | JET, MAIN AIR (200) | 1 |
| 1 | 09492-45038 | JET, SLOW (45) | 1 |
| 1 | 09492-65009 | JET, STARTER (65) | 1 |
| 1 | 09491-60012 | JET, SLOW AIR (60) | 1 |
| 09493-90009 | JET, AIR (90) | ||
| 1 | 13279-29F00 | SCREW, ADJUST (1,1/2) | 1 |
| 1 | 13271-29F00 | SPRING | 1 |
| 1 | 13295-26E00 | O RING | 1 |
| 1 | 13291-26E00 | WASHER | 1 |
| 1 | 13371-29F00 | VALVE SET | 1 |
| 1 | 13374-29F00 | O RING | 1 |
| 1 | 13601-29F00 | SCREW | 1 |
| 1 | 13370-29F00 | VALVE, FLOAT | 1 |
| 1 | 13250-29F00 | FLOAT | 1 |
| 1 | 13254-26E00 | PIN | 1 |
| 1 | 13602-43E00 | SCREW | 1 |
| 1 | 13375-26E00 | CLIP | 1 |
| 1 | 15165-24F00 | STRAINER | 1 |
| 1 | 13251-29F00 | PACKING | 1 |
| 1 | 13488-29F00 | COVER | 1 |
| 1 | 13491-29F00 | DIAPHRAGM | 1 |
| 1 | 13497-14F00 | U RING | 1 |
| 1 | 13494-15F00 | SPRING | 1 |
| 1 | 13673-26E10 | O RING | 1 |
| 1 | 13487-29F00 | ROD | 1 |
| 1 | 13499-29F00 | CAP | 1 |
| 1 | 13410-29F00 | VALVE, STARTER | 1 |
| 13490-29F00 | LINK LEVER | ||
| 1 | 13490-29F10 | LINK LEVER | 1 |
| 13494-29F00 | SPRING | ||
| 1 | 13494-29F10 | SPRING | 1 |
| 13615-29F00 | WASHER | ||
| 13582-29F00 | COLLAR | ||
| 13612-29F40 | BOLT | ||
| 13612-29F50 | BOLT DR-Z400K3/K4 | ||
| 13612-29F40 | BOLT DR-Z400EK3/EK4 | ||
| 13607-29F10 | NUT DR-Z400K3/K4 | ||
| 2 | 13607-24F00 | NUT | 2 |
| 13582-29F10 | COLLAR | ||
| 1 | 13270-29F00 | SCREW, STOP | 1 |
| 1 | 13427-26E00 | WASHER | 1 |
| 1 | 13271-26EA0 | SPRING | 1 |
| 13582-29F20 | COLLAR | ||
| 1 | 13246-29F00 | O RING | 1 |
| 1 | 13247-29F00 | BOLT | 1 |
| 1 | 13580-29F00 | SENSOR, THROTTLE | 1 |
| 13627-29F00 | PLATE | ||
| 1 | 13582-24F00 | COLLAR | 1 |
| 1 | 13575-03F00 | O RING | 1 |
| 1 | 13582-29F30 | COLLAR | 1 |
| 2 | 13572-14F00 | WASHER | 2 |
| 3 | 13612-29F00 | BOLT (4X8) | 3 |
| 2 | 13673-26E00 | O RING | 2 |
| 2 | 13687-29F00 | JOINT | 2 |
| 5 | 09401-06101 | CLIP | 5 |
| 1 | 13692-29F00 | CLIP | 1 |
| 2 | 13693-36E00 | BINDER | 2 |
| 13680-29F00 | PIPE | ||
| 13686-29F00 | PIPE | ||
| 13684-29F00 | PIPE, RUBBER | ||
| 3 | 09401-05402 | CLIP | 3 |
| 1 | 13257-29F00 | PLATE | 1 |
| 13484-29F00 | BODY, DIAPHRAGM | ||
| 1 | 13480-29F00 | DIAPHRAGM | 1 |
| 13484-29F10 | COVER | ||
| 1 | 13481-29F00 | SPRING | 1 |
| 1 | 13486-15F00 | U RING | 1 |
| 13601-15F20 | SCREW | ||
| 2 | 02112-34083 | SCREW | 2 |
| 1 | 13680-29F10 | PIPE, RUBBER | 1 |
| 1 | 13681-29F00 | PIPE, RUBBER | 1 |
| 1 | 13680-29F20 | PIPE, RUBBER | 1 |
| 09401-07101 | CLIP | ||
| 3 | 13671-29F00 | CLIP | 3 |
| 13628-29F00 | PLATE, STAY | ||
| 1 | 13582-29F40 | COLLAR | 1 |
| 1 | 13693-28E00 | BINDER | 1 |
| 1 | 13432-29F00 | BINDER | 1 |
| 13629-29F00 | PLATE, STAY DR-Z400K3/K4 | ||
| 13683-29F00 | PIPE | ||
| 13296-29F00 | SCREW,STOP | ||
| 13621-29F10 | PLATE, STAY | ||
| 1 | 09404-06432 | CLAMP, OVER FLOW HOSE CASE | 1 |
| 1 | 09404-08420 | CLAMP, OVER FLOW HOSE LOW | 1 |
| 1 | 13670-29F00 | JOINT, AIR CLEANER | 1 |
| 1 | 13278-29F00 | O RING, AIR CLEANER JOINT | 1 |
| 2 | 07130-05123 | BOLT, AIR CLEANER JOINT | 2 |
| 13440-29F00 | STARTER DR-Z400K3/K4 | ||
| 1 | 01547-06163 | BOLT, STARTER DR-Z400K3/K4 | 1 |
| 13697-29F00 | HOSE, STARTER TO HEAD DR-Z400K3/K4 | ||
| 13697-29F10 | HOSE, STARTER TO AIR CLEANER DR-Z400K3/K4 | ||
| 4 | 09401-08401 | CLIP DR-Z400K3/K4 | 4 |
| 1 | 13311-29F10 | COVER, CARBURETOR | 1 |
| 1 | 63161-43E00 | BOLT, CARBURETOR COVER | 1 |
| 1 | 13650-25E01 | HEATER ASSY,CARBURETOR (15W) OPT | 1 |
| 1 | 13655-16F00 | THERMO SWITCH COMP,CARB HEATE OPT | 1 |
