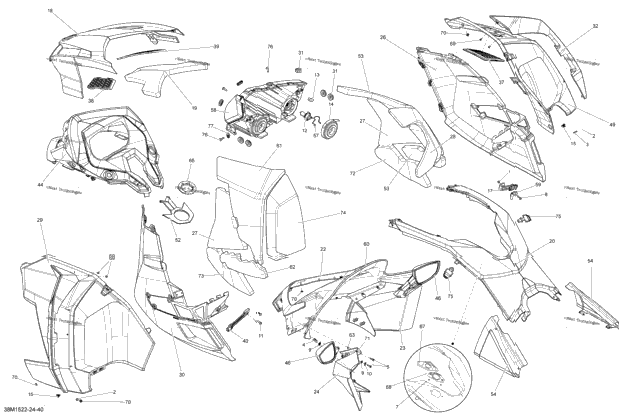

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 233251434 | Flange Elastic Nut M5 | 1 |
| 1 | 234042600 | Flat Washer 4 mm, Stainless | 1 |
| 2 | 241141660 | Hex. Flange Screw K40 X 16 | 2 |
| 4 | 250000129 | Torx Screw M6 X 16 | 4 |
| 1 | 250000720 | Torx Screw K50 X 16 | 1 |
| XXX | Not Available As Spare Parts | ||
| 1 | 250000465 | Torx Screw M5 X 20 | 1 |
| 8 | 250200024 | Rubber Washer 5 mm | 8 |
| 2 | 250200025 | Washer M5 | 2 |
| 1 | 250000705 | Torx Truss Screw M6 X 20 | 1 |
| 2 | 515176274 | Halogen Bulb, 60/55 W, 12 V ( H4 ) | 2 |
| 4 | 515176498 | Cap | 4 |
| 2 | 515176499 | Cover | 2 |
| 2 | 517302785 | Edge Clip | 2 |
| 1 | 517303612 | RH Panel Latch | 1 |
| 1 | 517303739 | Black Hood Model-Black-Black | 1 |
| 1 | 517305692 | HOOD Model-Platinium-Platinium | 1 |
| 1 | 517304893 | Hood Foam | 1 |
| 1 | 517303741 | Black Console Model-Black-Black | 1 |
| 1 | 517305693 | CONSOLE B-366 ASSY Model-Platinium-Platinium | 1 |
| 1 | 860200230 | Windshield Support Kit | 1 |
| 1 | 517303745 | RH Console Air Deflector | 1 |
| 1 | 517303746 | LH CONSOLE AIR DEFLECTOR | 1 |
| 517304373 | PANEL_BODY LWR R B-160 | ||
| 1 | 517304894 | CENTRAL FOAM PANEL RH | 1 |
| 1 | 517304899 | LH CENTRAL PANEL FOAM | 1 |
| 1 | 517304895 | REAR PANEL FOAM RH | 1 |
| 1 | 517303753 | Black LH Pannel Model-Black-Black | 1 |
| 1 | 517305704 | Platinium LH Panel Model-Platinium-Platinium | 1 |
| 1 | 517304362 | PANEL_BODY LWR L B-160 | 1 |
| 7 | 517303756 | Grommet | 7 |
| 1 | 517304197 | BLACK RH SIDE WIND DEFLECTOR Model-Black-Black | 1 |
| 1 | 517305697 | PLATINIUM RH SIDE WIND DEFLECTOR Model-Platinium-Platinium | 1 |
| 1 | 517304196 | BLACK LH SIDE WIND DEFLECTOR | 1 |
| 1 | 517303801 | PANEL GRILL | 1 |
| 1 | 517303804 | LH Hood Grille | 1 |
| 1 | 517303805 | RH Hood Grille | 1 |
| 1 | 517303808 | LH Panel Latch | 1 |
| 1 | 517303971 | INDICATOR SUPPORT | 1 |
| 1 | 517305100 | RH Mirror Ass'y | 1 |
| 1 | 517305101 | LH Mirror Ass'y | 1 |
| 1 | 517304006 | Black RH Pannel | 1 |
| 1 | 517305699 | Platinium RH Pannel | 1 |
| 1 | 517304027 | Deep Black, Cap Console | 1 |
| 1 | 517304908 | RH UPPER PANEL FOAM | 1 |
| 1 | 517304123 | DEEP BLACK LH FUEL TANK MOULDING Model-Black-Black | 1 |
| 517305706 | PLATINIUM LH FUEL TANK MOULDING Model-Platinium-Platinium | ||
| 517304124 | DEEP BLACK RH FUEL TANK MOULDING Model-Black-Black | ||
| 517305707 | Platinium RH Fuel Tank Moulding Model-Platinium-Platinium | ||
| 1 | 517304194 | RH Headlamp Ass'y | 1 |
| 1 | 517304195 | LH Headlamp Ass'y | 1 |
| 1 | 517304221 | Latch Support | 1 |
| 517304268 | EXTRA HIGHT WINDSHIELD (620) | ||
| 1 | 517304902 | LH UPPER PANEL FOAM | 1 |
| 517304897 | CENTRAL FOAM PANEL LH | ||
| 2 | 517304281 | Rubber Washer 5 mm | 2 |
| 1 | 517304518 | Console Nut | 1 |
| 1 | 732601210 | HEX. FLANGED SCREW #8 X 3/8 | 1 |
| 1 | 732610072 | Push Nut | 1 |
| 2 | 517225900 | Flat Washer | 2 |
| 1 | 517304905 | RH LOWER PANEL FOAM | 1 |
| 1 | 517304901 | LH LOWER PANEL FOAM | 1 |
| 1 | 517304904 | LH REAR PANEL FOAM | 1 |
| 2 | 517305000 | Panel Latch | 2 |
| 6 | 250000705 | Torx Truss Screw M6 X 20 | 6 |
| 6 | 250000048 | Panel Nut M6 X 1.0 | 6 |
