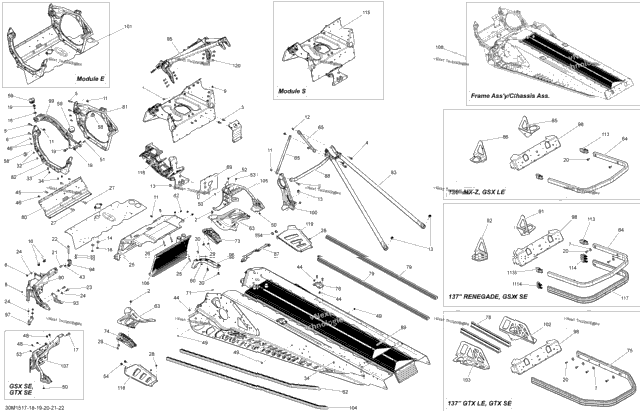

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 207161444 | Hex. Screw M6 X 14 | 1 |
| 2 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip | 2 |
| 2 | 207661644 | Hex. Flange Screw M6 X 16 | 2 |
| 6 | 207662044 | Hex. Flange Screw M6 X 20 | 6 |
| 4 | 207662544 | Hex. Flange Screw M6 X 25 | 4 |
| 2 | 210261680 | Hex. Flange Screw M6 X 16 | 2 |
| 8 | 224061201 | Flat Washer | 8 |
| 3 | 232561414 | Elastic Stop Nut M6 | 3 |
| 1 | 232561600 | Hex. Elastic Stop Nut M6 | 1 |
| 1 | 233061414 | Hex. Flange Nut M6 | 1 |
| 5 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 5 |
| 2 | 233261416 | Elastic Flange Nut M6 X 1.0 | 2 |
| 5 | 233281414 | Hex. Flange Elastic Nut M8 | 5 |
| 2 | 234062410 | Flat Washer 6 mm | 2 |
| 1 | 234281474 | Conical Spring Washer M8 | 1 |
| 2 | 250000079 | Panel Nut M5 X 0.8 | 2 |
| 1 | 250000248 | Torx Screw M8 X 25, Scotch Grip | 1 |
| 2 | 250000349 | Torx Truss Screw M6 X 10 | 2 |
| 3 | 250000351 | Hex. Flange Screw M8 X 25, Nylon | 3 |
| 8 | 250000402 | Torx-Truss Screw M6 X 18 | 8 |
| 1 | 250000534 | Tork Screw M6 X 16 | 1 |
| 1 | 250000535 | Torx Screw M8 X 55 | 1 |
| 2 | 250000536 | Tork Screw M6 X 18 | 2 |
| 5 | 250200039 | Flat Washer | 5 |
| 1 | 250300027 | Clinch Stud M6 X 20 | 1 |
| 2 | 250300031 | Clinch Stud M6 X 30 | 2 |
| 2 | 250300038 | Clinch Stud | 2 |
| 4 | 293150102 | Rivet 3/16" | 4 |
| 4 | 293150104 | Pop Rivet 3/16" | 4 |
| 3 | 293150108 | Pop Rivet 3/16” | 3 |
| 6 | 293150119 | Hemlock Rivet, 6.5 mm | 6 |
| 2 | 293150120 | Hemlock Rivet 6.5 mm | 2 |
| 1 | 293150144 | Stavex Rivet | 1 |
| 12 | 293150146 | Henrob Rivet | 12 |
| 1 | 293150147 | Hemlock Rivet | 1 |
| 5 | 293150174 | Hemlock Rivet, 6.4 mm | 5 |
| 2 | 293150182 | Monobolt Rivet 6.4 | 2 |
| 6 | 293150191 | Monobolt Rivet, 4.8 mm | 6 |
| 4 | 293450268 | Insert M5 X 0.8 | 4 |
| 3 | 293730047 | Black, Dart 8 mm | 3 |
| 1 | 293730042 | Full Moon Dart 5 mm | 1 |
| 2 | 390407200 | Pop Rivet 3/16” | 2 |
| 5 | 390909100 | Avex Rivet | 5 |
| 1 | 390909200 | Avex Rivet | 1 |
| 1 | 293450275 | Insert | 1 |
| 2 | 505073317 | Leg Cushion | 2 |
| 2 | 512060295 | Rubber Mount | 2 |
| 1 | 517124300 | Washer | 1 |
| XXX | Not Available As Spare Parts | ||
| 1 | 518324874 | RH Reinforcement | 1 |
| 1 | 518324875 | LH Reinforcement | 1 |
| 1 | 518327401 | BLACK REAR BUMPER | 1 |
| 2 | 518325114 | Upper Lateral Column Support | 2 |
| 1 | 518325371 | MAG Engine Support | 1 |
| 518325418 | HEAT SHIELD | ||
| 1 | 518325560 | Adhesive Patch | 1 |
| 1 | 518325782 | RH Deflector, Black Polypropylene | 1 |
| 1 | 518325783 | LH Deflector, Black Polypropylene | 1 |
| 1 | 518325850 | REAR BUMPER | 1 |
| 1 | 518325973 | RH Rear Base | 1 |
| 1 | 518325974 | LH Rear Base | 1 |
| 860200267 | TUNNEL PROTECTOR KIT | ||
| 1 | 518326198 | Front Member | 1 |
| 1 | 518326328 | RH Side Member | 1 |
| 1 | 518326330 | LH Side Member | 1 |
| 1 | 518326559 | Rear Member | 1 |
| 1 | 518326656 | Seal | 1 |
| 1 | 518326657 | Center Column Support | 1 |
| 1 | 518326641 | Rear Radiator Ass'y, 137" | 1 |
| 1 | 518326820 | LH Stirup | 1 |
| 1 | 518326960 | Support | 1 |
| 1 | 518326961 | U-Attach | 1 |
| 1 | 518326970 | Front Member | 1 |
| 1 | 518326973 | Front Tunnel Protector | 1 |
| 1 | 518326986 | Attach | 1 |
| 1 | 518327105 | Rear Cap | 1 |
| 1 | 518327392 | Brace Ass'y | 1 |
| 1 | 518327460 | Driven Pulley Support | 1 |
| 1 | 518327485 | E MODULE | 1 |
| 518327858 | RH SUSPENSION BRACKET | ||
| 1 | 518327859 | LH Suspension Bracket | 1 |
| 1 | 518325378 | LH Roller | 1 |
| 518325377 | RH ROLLER | ||
| 1 | 518327863 | RH Stirup | 1 |
| 1 | 518327907 | Front Radiator Ass'y | 1 |
| 518327935 | LH STIRUP | ||
| 415129911 | FRAME ASS'Y | ||
| 1 | 518328325 | CROSS MEMBER S MODULE | 1 |
| 1 | 518327487 | Front Suspension Support Included With 518328320 S Module | 1 |
| 518328352 | LH Footrest | ||
| 518328351 | RH Footrest |
