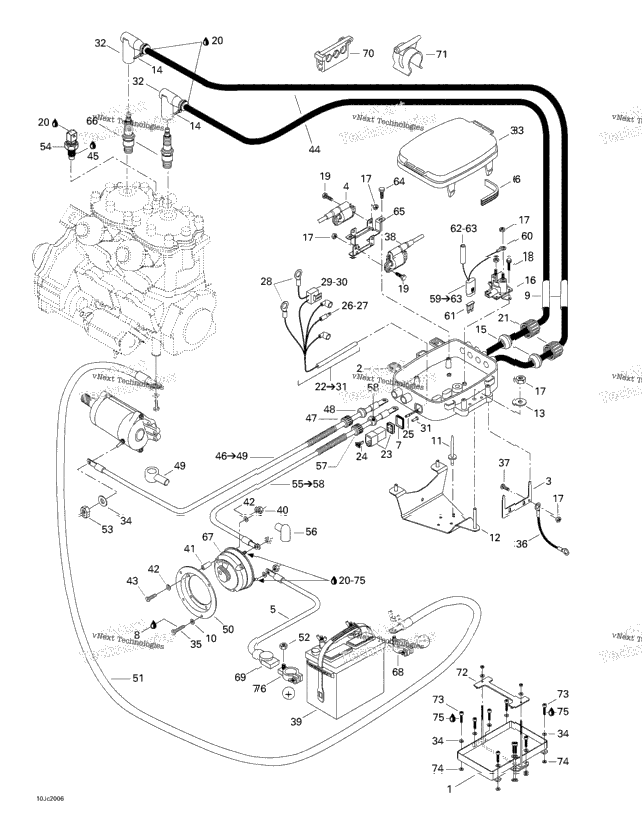

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 204470341 | Battery Support | 1 |
| 278001425 | ELECTRIC BOX BASE | ||
| 278000732 | Ground Plate | ||
| 278001416 | Ignition Coil (MAG) | ||
| 204470250 | POSITIVE SWITCH CABLE | ||
| 278001173 | GASKET | ||
| 293200030 | Gasket | ||
| 219704457 | Loctite Adhesive 425 20ML | ||
| 1 | 219704412 | Polyurethane Hose, 8 Mm 3000Mm Long | 1 |
| 4 | 234041600 | Flat Washer 4 mm, Stainless | 4 |
| 4 | 293150037 | Avdel Rivet 3/16" | 4 |
| 278001426 | Electric Box Support Ass'y | ||
| 3 | 234062600 | Flat Washer M6, Stainless | 3 |
| 2 | 293750002 | Tie Wrap 142 mm | 2 |
| 278000682 | Grommet | ||
| 1 | 278001376 | Starter Relay | 1 |
| 10 | 232561600 | Hex. Elastic Stop Nut M6 | 10 |
| 2 | 210261040 | Hex. Flange Screw M6 X 10 | 2 |
| 4 | 207162060 | Hex. Forming Screw M6 X 20 | 4 |
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 278000100 | Electric Wire Cap | ||
| 1 | 278001423 | REAR ELECTRIC BOX HARNESS Includes 22 - 31. | 1 |
| 1 | 270000137 | Female Connector, 6 Circuits | 1 |
| 1 | 278000735 | Female Lock, 6 Circuits | 1 |
| 5 | 278000631 | Male Terminal | 5 |
| 1 | 278000230 | Male Terminal | 1 |
| 1 | 278001008 | Insulated Sheath | 1 |
| 278000300 | Ring Terminal | ||
| 1 | 278001113 | Male Connector, 2 Circuits | 1 |
| 2 | 278001114 | Female Terminal | 2 |
| 1 | 293000052 | Sealing Cap | 1 |
| 278000237 | SPARK PLUG CAP | ||
| 1 | 278001433 | ELECTRIC BOX COVER | 1 |
| 9 | 234061600 | Stainless Flat Washer M6 | 9 |
| 4 | 208642560 | PHILLIPS SCREW M4 X 25 | 4 |
| 278001501 | Ground Wire | ||
| 1 | 205461060 | Socket Head Screw M6 X 10 | 1 |
| 278001414 | COIL-IGNITION | ||
| XXXX | Not Available As Spare Part - Battery | ||
| 4 | 232551600 | Hex. Elastic Nut M5 | 4 |
| 4 | 204470330 | NYLON SPACER | 4 |
| 8 | 234051600 | Flat Washer M5, Stainless | 8 |
| 4 | 208652560 | Phillips Screw M5 X 25 | 4 |
| 1 | 278001268 | Spark Plug Wire | 1 |
| 1 | 219704456 | Était/Was 293800038 Loctite 518, 50 ml | 1 |
| 1 | 278001437 | STARTER RED CABLE Includes 46 - 49. | 1 |
| 278000098 | GROMMET | ||
| 278000020 | PROTECTION CAP | ||
| 204470259 | SWITCH SUPPORT | ||
| 1 | 204470199 | RH GROUND CABLE | 1 |
| 1 | 211100063 | HEX. NUT 3/8-16 | 1 |
| 1 | 232561600 | Hex. Elastic Stop Nut M6 | 1 |
| 1 | 278001016 | Temperature Sensor | 1 |
| 1 | 204470286 | POSITIVE CABLE ASS'Y Includes 55 - 58. | 1 |
| 1 | 204470269 | RED BOOT | 1 |
| 278001212 | Fuse Harness (15 Amperes) Includes 59 - 63. | ||
| 1 | 278000343 | Fuse, 15 Amperes | 1 |
| 1 | 278001009 | Female Terminal | 1 |
| 1 | 278001007 | Insulated Sheath | 1 |
| 209561640 | Hex. Screw M6 X 16 | ||
| 278001421 | Ignition Coil Support | ||
| 2 | 278000609 | Spark Plug NGK BR8ES | 2 |
| 204470329 | Battery Switch | ||
| 1 | 204470348 | NEGATIVE BATTERY POLE | 1 |
| 278000245 | 3 WIRE SUPPORT | ||
| 1 | 278000559 | COLLAR SUPPORT | 1 |
| 1 | 204470340 | Battery Cover | 1 |
| 8 | 205062560 | Socket Head Screw M6 X 25 | 8 |
| 8 | 211200029 | FLAT WASHER, PLASTIC | 8 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 204470349 | POSITIVE BATTERY POLE |
