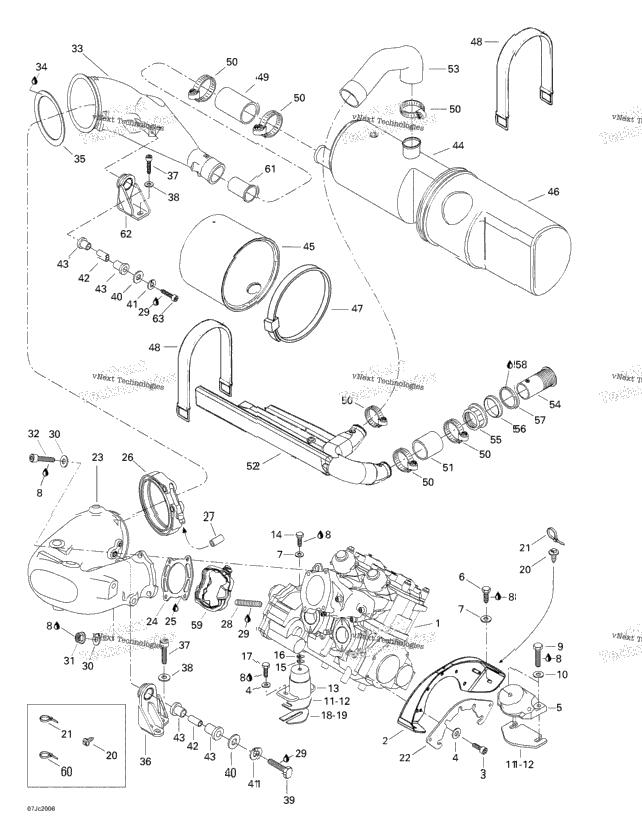

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 270000486 | Rotax Engine 947 (Silver) | ||
| 270000359 | Engine Support | ||
| 5 | 205582560 | Socket Head Screw M8 X 25, Scotch Grip | 5 |
| 7 | 234081600 | Stainless, Flat Washer 8 mm | 7 |
| 270000421 | Rubber Mount, Black | ||
| 207181660 | Hex. Screw M8 X 16 | ||
| 3 | 234082600 | Flat Washer 8 mm, Stainless | 3 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 4 | 207184060 | Hex. Screw M8 X 40 | 4 |
| 4 | 234081600 | Stainless, Flat Washer 8 mm | 4 |
| 270000122 | Shim 0.3 mm | ||
| 270000123 | SHIM 1.3 MM | ||
| 270000422 | Rubber Mount, Black | ||
| 207182060 | HEX. SCREW M8 X 20 | ||
| 1 | 270000024 | SHIM 0.4 MM | 1 |
| 270000025 | SHIM 1.3 MM | ||
| 2 | 207184060 | Hex. Screw M8 X 40 | 2 |
| 1 | 204250048 | Shim 0.3 mm | 1 |
| 1 | 204250049 | SHIM 1.3 MM | 1 |
| 3 | 293730018 | Mount Dart | 3 |
| 4 | 414115200 | Tie-Rap 180 mm | 4 |
| 1 | 219704353 | Was 271000110 Protection Trim | 1 |
| 274000768 | Head Pipe Ass'y | ||
| 295500815 | EXHAUST GASKET KIT | ||
| 1 | 219704456 | Était/Was 293800038 Loctite 518, 50 ml | 1 |
| 274000510 | EXHAUST CLAMP | ||
| 1 | 219704412 | Polyurethane Hose, 8 Mm 3000Mm Long | 1 |
| 211300025 | Stud M10 x 55 | ||
| 1 | 293800005 | Loctite 271, 10 ml | 1 |
| 4 | 211200051 | Flat Washer | 4 |
| 1 | 233101600 | Hex. Flange Nut M10 | 1 |
| 205003560 | Socket Head Screw M10 x 35 | ||
| 274000658 | Exhaust Cone | ||
| 1 | 413710300 | Loctite 17914, Sealant, 80 ml | 1 |
| 1 | 274000511 | SEALING RING | 1 |
| 274000662 | Support Pipe | ||
| 5 | 250000051 | Socket Head Screw M8 x 30 (Scotch Grip) | 5 |
| 5 | 250200012 | FLAT WASHER M8.4 | 5 |
| 207004060 | Hex. Screw M10 x 40 (Scotch Grip) | ||
| 2 | 234002600 | Flat Washer 10 mm, Stainless | 2 |
| 2 | 234101601 | Helicoidal Lock Washer M10 | 2 |
| 274000656 | Bushing | ||
| 293830065 | RUBBER BUSHING | ||
| 274000749 | Muffler (Black) | ||
| 274000732 | Muffler Cover | ||
| 274000733 | Muffler Cover | ||
| 1 | 293750020 | WRAP_TIE 828 X 9 | 1 |
| 2 | 293850021 | Rubber Strap | 2 |
| 274000530 | EXHAUST HOSE | ||
| 6 | 293650064 | Tridon Clamp | 6 |
| 274000616 | Exhaust Hose | ||
| 295500683 | Resonator | ||
| 274000525 | Exhaust Hose | ||
| 1 | 274000222 | EXHAUST OUTLET | 1 |
| 1 | 274000224 | Nut 72 mm | 1 |
| 1 | 274000225 | STABILIZING WASHER | 1 |
| 1 | 293250041 | GASKET | 1 |
| 1 | 296000309 | Silicone Sealant 51388, 300 ml | 1 |
| 274000862 | PICK UP ENVELOPE | ||
| 1 | 293750002 | Tie Wrap 142 mm | 1 |
| 204340255 | Exhaust Insert | ||
| 274000878 | Pipe Support | ||
| 1 | 205004060 | SOCKET HEAD SCREW M10 X 40 | 1 |
