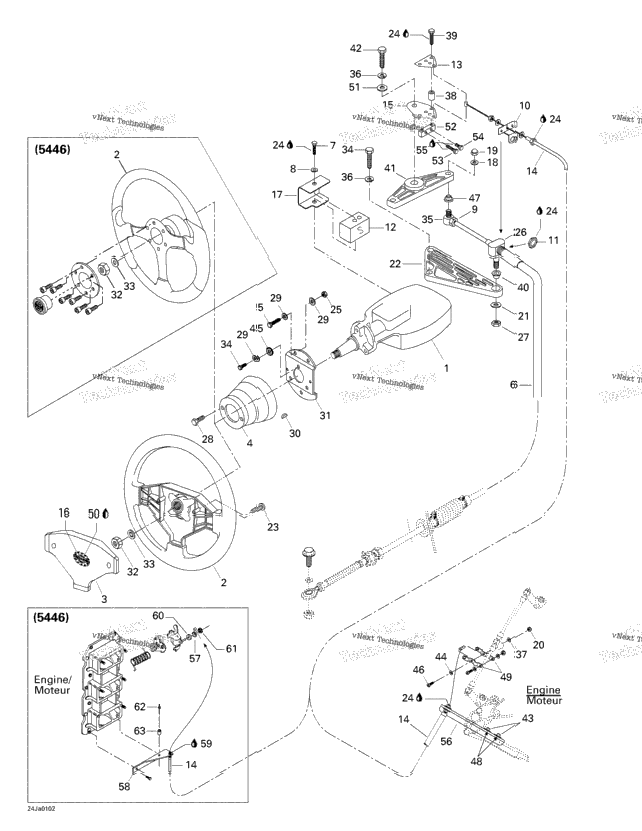

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 204390244 | HELM ASS'Y | ||
| 1 | 204390075 | Black, Steering CHALLENGER 1800 (5445). | 1 |
| 204390170 | Steering CHALLENGER 1800 (5446). | ||
| 204390221 | Steering Center (Turquoise Panama) CHALLENGER 1800 (5445). | ||
| 204390030 | COLLAR, BLACK | ||
| 3 | 207163060 | Hex. Screw M6 X 30 | 3 |
| 204390212 | STEERING CABLE | ||
| 1 | 204100014 | HEX. SCREW 1/4-20 X 2-1/2 | 1 |
| 1 | 234062600 | Flat Washer M6, Stainless | 1 |
| 1 | 277000439 | HEX. NUT 5/16-24 | 1 |
| 204390232 | Cable Support | ||
| 1 | 204390053 | HEX. JAM NUT 5/8-18 | 1 |
| 204390246 | Bumper | ||
| 204390267 | UPPER CLIP | ||
| 204390236 | Low Speed Cable Control | ||
| 204390231 | Lower Clip | ||
| 1 | 516000983 | Bombardier Logo CHALLENGER 1800 (5445). | 1 |
| 204390245 | Bumper Support | ||
| 1 | 211200019 | FLAT WASHER | 1 |
| 1 | 212000005 | NUT-STOP ELASTIC MS-17830 | 1 |
| 2 | 232551600 | Hex. Elastic Nut M5 CHALLENGER 1800 (5445). | 2 |
| 1 | 234001600 | Flat Washer 10 mm, Stainless | 1 |
| 1 | 277000458 | CABLE SUPPORT | 1 |
| 3 | 241642060 | Flange Screw K40 X 20 CHALLENGER 1800 (5445). | 3 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 3 | 232561600 | Hex. Elastic Stop Nut M6 | 3 |
| 277000461 | PIVOT 3/8? | ||
| 1 | 211100024 | LOCK NUT | 1 |
| 204390059 | SCREW 8-32 X 1-1/4 | ||
| 9 | 234061600 | Stainless Flat Washer M6 | 9 |
| 1 | 277000384 | WOODRUFF KEY | 1 |
| 277000383 | Support | ||
| 1 | 211100021 | LOCK NUT 1/2-20 | 1 |
| 1 | 211200006 | FLAT WASHER, STAINLESS | 1 |
| 5 | 211000050 | HEX. SCREW 1/4-20 X 3/4?, SCOTCH GRIP | 5 |
| 277000456 | PIVOT | ||
| 3 | 211200025 | Lock Washer 1/4” | 3 |
| 2 | 234051600 | Flat Washer M5, Stainless CHALLENGER 1800 (5445). | 2 |
| 277000584 | SPACER 6.7 MM | ||
| 2 | 207162560 | Hex. Screw M6 X 25 | 2 |
| 1 | 293350014 | Flanged Bushing | 1 |
| 1 | 204390040 | ARM | 1 |
| 211000054 | HEX. SCREW 1/4-20 X 1?, SCOTCH GRIP | ||
| 2 | 207151260 | HEX. SCREW M6 X 12 CHALLENGER 1800 (5445). | 2 |
| 2 | 234151601 | Helical Lock Washer M5 CHALLENGER 1800 (5445). | 2 |
| 3 | 234461608 | External Serrated Lock Washer 6 mm | 3 |
| 2 | 205051660 | SOCKET HEAD SCREW M5 X 16 CHALLENGER 1800 (5445). | 2 |
| 1 | 293350012 | BUSHING | 1 |
| 204390234 | Cable Attachment CHALLENGER 1800 (5445). | ||
| 219704463 | ADHESIVE LOCTITE 414 28ML CHALLENGER 1800 (5445). | ||
| 204390057 | Spacer | ||
| 204390056 | Adjustment Block | ||
| 207153560 | Hex. Screw M5 X 35 | ||
| 207152560 | HEX. SCREW M5 X 25 | ||
| XXXX | Not Available As Spare Part - Loctite 220 | ||
| 204390233 | Cable Support CHALLENGER 1800 (5445). | ||
| 204390180 | Ring Retainer CHALLENGER 1800 (5446). | ||
| 204390181 | Support Cable (Low Speed) CHALLENGER 1800 (5446). | ||
| 1 | 293800060 | Loctite 243, 10 ml CHALLENGER 1800 (5446). | 1 |
| 204390268 | CABLE RETAINER (LOW SPEED) CHALLENGER 1800 (5446). | ||
| 1 | 204390269 | Cable Cover CHALLENGER 1800 (5446). | 1 |
| 1 | 293150006 | Pop Rivet 1/8" CHALLENGER 1800 (5446). | 1 |
| 204390255 | Stopper - Rubber CHALLENGER 1800 (5446). |
