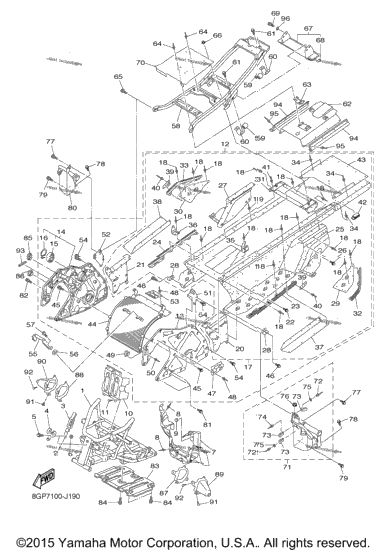

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 8GK-21940-01-00 | Front Frame Comp | 1 |
| 1 | 8GC-2175V-00-00 | Bracket 3 | 1 |
| 1 | 59V-21646-00-00 | Band | 1 |
| 1 | 8GC-2175W-00-00 | Bracket 4 | 1 |
| 1 | 92017-05040-00 | Bolt, Button Head | 1 |
| 1 | 95702-05500-00 | Nut, Flange | 1 |
| 1 | 8GC-21912-01-00 | Panel, Sub Frame 1 | 1 |
| 5 | 90267-48086-00 | Rivet, Blind (4.8X19 Black) | 5 |
| 1 | 90338-12192-00 | Plug | 1 |
| 1 | 8GC-2195A-10-00 | Protector, Frame A | 1 |
| 4 | 90269-05003-00 | Rivet | 4 |
| 1 | 8GP-21950-40-00 | Rear Frame Comp | 1 |
| 1 | 8GC-21991-00-00 | . .Reinf., Panell Frame 1 | 1 |
| 1 | 8GK-21930-20-00 | . Housing, Reinf Sub-Assy (R.H) | 1 |
| 1 | 93306-20511-00 | . . Bearing | 1 |
| 1 | 99009-52500-00 | . . Circlip | 1 |
| 1 | 8GP-21950-49-00 | . .Rear Frame Comp | 1 |
| 1 | 90267-47195-00 | . . Rivet, Blind (4.7X16.4 Yell QTY:136 | 1 |
| 20 | 90267-48023-00 | . . Rivet, Blind (4.8X12.1 Yell | 20 |
| 1 | 8GK-21943-00-00 | . . ..Bracket, Main Track 1 | 1 |
| 1 | 8GK-21953-00-00 | . . ..Bracket, Main Track 2 | 1 |
| 2 | 95822-08012-00 | . . ..Bolt, Flange | 2 |
| 1 | 8GC-21926-01-00 | . . ..Reinforcement, Footrest 1 | 1 |
| 1 | 8GC-21936-01-00 | . . ..Reinforcement, Footrest 2 | 1 |
| 1 | 8GK-21944-00-00 | . . Bracket, Rear Track Suspens | 1 |
| 4 | 95822-08014-00 | . . Bolt, Flange | 4 |
| 1 | 8GK-21954-00-00 | . . Bracket, Rear Track Suspens | 1 |
| 2 | 8GC-21967-00-00 | . . .Patch 7 | 2 |
| 1 | 8GC-27452-00-00 | . . ..Bracket, Footrest 1 | 1 |
| 1 | 8GC-27462-00-00 | . . ..Bracket, Footrest 2 | 1 |
| 1 | 8GK-21341-00-00 | . . ..Bracket, Seat 1 | 1 |
| 1 | 8GC-21927-01-00 | . . Reinforcement, Rear Footres | 1 |
| 1 | 8GC-21937-01-00 | . . Reinforcement, Rear Footres | 1 |
| 22 | 90267-47195-00 | . . Rivet, Blind (4.7X16.4 Yell | 22 |
| 1 | 8GC-21238-00-00 | . . ..Bracket | 1 |
| 1 | 8GC-21239-00-00 | . . ..Bracket 2 | 1 |
| 1 | 8GC-21961-00-00 | . . ..Patch 1 | 1 |
| 1 | 8GC-21962-00-00 | . . ..Patch 2 | 1 |
| 2 | 8GC-21988-00-00 | . . ..Patch 8 | 2 |
| 8 | 90267-48010-00 | . . Rivet, Blind (4.8X12 Yellow | 8 |
| 8 | 90267-47197-00 | . . Rivet, Blind (4.7X19.5 Silv | 8 |
| 1 | 8GP-21567-00-00 | . . ..Tape, 2 | 1 |
| 1 | 8GP-21918-00-00 | . . ..Panel, Sub-Frame 7 | 1 |
| 1 | 8GC-12440-00-00 | . .Heat Exchanger Assy | 1 |
| 6 | 95822-08020-00 | . Bolt, Flange | 6 |
| 2 | 90109-065G4-00 | . .Bolt | 2 |
| 1 | 8GC-21973-00-00 | . .Hook | 1 |
| 7 | 90267-47195-00 | . Rivet, Blind (4.7X16.4 Yellow | 7 |
| 1 | 2TK-2177L-00-00 | . .Plate, Spring | 1 |
| 2 | 90267-32192-00 | . .Rivet, Blind (3.2X13.8) | 2 |
| 1 | 8GC-21963-00-00 | . .Patch 3 | 1 |
| 1 | 8GC-21964-00-00 | . .Patch 4 | 1 |
| 1 | 8GC-2164G-00-00 | . .Stay 2 | 1 |
| 10 | 95022-08020-00 | . Bolt, Flange | 10 |
| 1 | 8GC-2164F-00-00 | Stay 1 | 1 |
| 2 | 90183-06053-00 | Nut, Spring | 2 |
| 2 | 91312-06012-00 | Bolt | 2 |
| 8GK-21160-00-00 | Seat Rail Comp | ||
| 2 | 8GC-14747-00-00 | .Damper, Muffler | 2 |
| 2 | 8GC-21121-00-00 | .Bracket, Damper | 2 |
| 4 | 95822-06010-00 | Bolt, Flange | 4 |
| 1 | 8GC-2199H-10-00 | Shield, Heat | 1 |
| 1 | 8GC-1467H-00-00 | ..Bracket, Silencer 1 | 1 |
| 6 | 90267-47195-00 | Rivet, Blind (4.7X16.4 Yellow) | 6 |
| 2 | 95822-10016-00 | .Bolt, Flange | 2 |
| 2 | 95607-08200-00 | Nut, Self-Locking | 2 |
| 1 | 8GC-24708-01-00 | Seat Bracket Assy | 1 |
| 4 | 8GC-77151-00-00 | . Pad 1 | 4 |
| 4 | 95822-08020-00 | Bolt, Flange | 4 |
| 1 | 8GC-21917-00-00 | Panel, Sub Frame 6 | 1 |
| 1 | 8GJ-21960-00-00 | Footrest Comp. 1 | 1 |
| 2 | 90267-48010-00 | . Rivet, Blind (4.8X12 Yellow) | 2 |
| 3 | 90465-08368-00 | . .Clamp | 3 |
| 1 | 90267-48083-00 | . Rivet, Blind (4.8X15.2 Silver | 1 |
| 2 | 90201-043H7-00 | . .Washer, Plate | 2 |
| 1 | 90480-13163-00 | . .Grommet | 1 |
| 2 | 95822-08016-00 | Bolt, Flange | 2 |
| 4 | 95022-06012-00 | Bolt, Flange | 4 |
| 2 | 90105-06080-00 | Bolt, Flange | 2 |
| 1 | 8GJ-21970-00-00 | Footrest Comp. 2 | 1 |
| 8 | 95822-08020-00 | Bolt, Flange | 8 |
| 2 | 90105-08190-00 | Bolt, Flange | 2 |
| 1 | 8GC-2193A-00-00 | Protector | 1 |
| 6 | 90109-066G1-00 | Bolt | 6 |
| 90480-27001-00 | Grommet | ||
| 1 | 90480-40003-00 | Grommet | 1 |
| 1 | 8GC-2195E-00-00 | Plate, Steering Bracket 1 | 1 |
| 1 | 8GC-2195F-00-00 | Plate, Steering Bracket 2 | 1 |
| 1 | 8GC-2198F-00-00 | Cover 1 | 1 |
| 1 | 8GC-2198J-00-00 | Cover 3 | 1 |
| 6 | 90269-05003-00 | Rivet | 6 |
| 2 | 90269-05002-00 | Rivet | 2 |
| 1 | 8GL-77319-00-00 | Damper 1 | 1 |
| 2 | 8GC-21852-00-00 | Damper | 2 |
| 8 | 90267-50010-00 | Rivet, Blind (5X23.6) | 8 |
| 4 | 90201-08079-00 | Washer, Plate | 4 |
