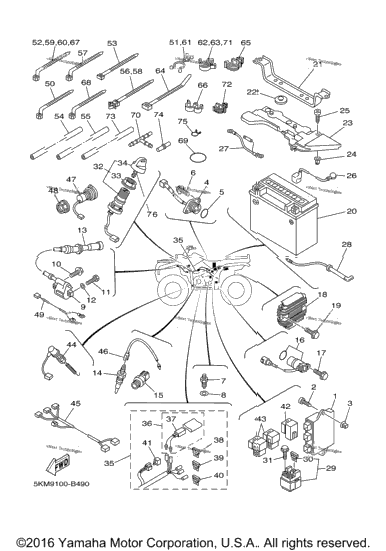

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 5KM-85540-00-00 | C.D.I. Unit Assy | ||
| 1 | 97707-60025-00 | Screw, Tapping | 1 |
| 1 | 90338-08226-00 | Plug | 1 |
| 1 | 5KM-82540-00-00 | Neutral Switch Assy | 1 |
| 1 | 93210-29196-00 | O-Ring | 1 |
| 2 | 90119-06044-00 | Bolt, With Washer | 2 |
| 1 | 3GB-82540-01-00 | Neutral Switch Assy | 1 |
| 1 | 90430-10148-00 | Gasket | 1 |
| 1 | 3KJ-82310-10-00 | Ignition Coil Assy | 1 |
| 1 | 90109-06723-00 | Bolt | 1 |
| 1 | 97007-06020-00 | Bolt | 1 |
| 1 | 92907-06600-00 | .Washer, Plate | 1 |
| 1 | 3YF-82370-00-00 | Plug Cap Assy | 1 |
| 1 | 5KM-82560-00-00 | Thermo Switch Assy | 1 |
| 1 | 5GM-82560-00-00 | Thermo Switch Assy | 1 |
| 5LV-83755-00-00 | Sensor, Speed | ||
| 1 | 91317-06016-00 | Bolt | 1 |
| 1 | 5BN-81960-00-00 | Rectifier & Regulator Assy | 1 |
| 1 | 95807-06020-00 | Bolt, Flange | 1 |
| 1 | 4SH-82100-22-00 | Battery Assy (Yuasa Ytx20l-Bs) YUASA | 1 |
| 1 | 5KM-82128-00-00 | Bracket, Battery | 1 |
| 2 | 371-82121-00-00 | Pad, Battery | 2 |
| 1 | 5KM-82129-00-00 | Cover, Battery | 1 |
| 1 | 97707-60016-00 | Screw, Tapping | 1 |
| 1 | 5KM-82115-00-00 | Wire, Plus Lead | 1 |
| 1 | 5KM-82116-00-00 | Wire, Minus Lead | 1 |
| 1 | 5KM-82541-00-00 | Wire, Lead | 1 |
| 1 | 4SV-81940-12-00 | Starter Relay Assy (Rc19-015) | 1 |
| 2 | 1AE-82151-00-00 | . .Fuse (30A-Bl) | 2 |
| 2 | 95027-06008-00 | Bolt, Flange | 2 |
| 1 | 5KM-82510-00-00 | Main Switch Assy | 1 |
| 1 | 3HN-82569-00-00 | . .Nut, Main Switch | 1 |
| 1 | 3HN-82579-00-00 | . .Cap, Key | 1 |
| 5KM-82590-00-00 | Wire Harness Assy | ||
| 1 | 5GT-82180-00-00 | . Circuit Breaker Assy | 1 |
| 1 | 5GT-82560-00-00 | . . Thermo Switch Assy | 1 |
| 2 | 5JJ-82151-10-00 | . .Fuse (15A-Bl) | 2 |
| 5 | 5JJ-82151-30-00 | . .Fuse (10A-Bl) | 5 |
| 2 | 5JJ-82151-50-00 | . .Fuse (3A-Bl) | 2 |
| 1 | 3WP-81980-00-00 | . .Diode Assy | 1 |
| 1 | 29U-81950-93-00 | Relay Assy (Aca12115-1) | 1 |
| 2 | 5DM-81950-00-00 | Relay Assy (G8hn-1C4t-Dj-Y52) | 2 |
| 1 | 5KM-82530-00-00 | Stop Switch Assy | 1 |
| 5KM-82309-00-00 | Wire, Sub Lead | ||
| 5KM-82507-00-00 | Wire, Lead | ||
| 1 | 5GH-8254B-00-00 | Terminal Comp | 1 |
| 1 | 5GH-82114-00-00 | Nut | 1 |
| 1 | 5KM-82509-00-00 | Wire, Sub Lead | 1 |
| 2 | 90464-12045-00 | Clamp | 2 |
| 1 | 90464-35047-00 | Clamp | 1 |
| 1 | 90464-15195-00 | Clamp | 1 |
| 437-83936-01-00 | Band, Switch Cord | ||
| 1 | 90445-07371-00 | Hose (L700) | 1 |
| 1 | 90445-07176-00 | Hose (L200) | 1 |
| 1 | 90464-12089-00 | Clamp | 1 |
| 1 | 90460-15126-00 | Clamp, Hose | 1 |
| 2 | 90464-12089-00 | Clamp | 2 |
| 1 | 90464-15157-00 | Clamp | 1 |
| 1 | 90465-10098-00 | Clamp | 1 |
| 1 | 90464-14M55-00 | Clamp | 1 |
| 1 | 90468-15139-00 | Clip | 1 |
| 1 | 90464-13073-00 | Clamp | 1 |
| 1 | 93210-975A9-00 | O-Ring | 1 |
| 1 | 90413-05014-00 | Way 3 | 1 |
| 1 | 90464-07001-00 | Clamp | 1 |
| 1 | 90446-09155-00 | Hose (L970) | 1 |
| 2 | 5KM-82109-00-00 | Joint, Hose | 2 |
| 1 | 90467-08021-00 | Clip | 1 |
| 1 | 90890-56001-00 | Blank Key (A-Type) | 1 |
| 1 | 90890-56002-00 | Blank Key (B-Type) | 1 |
