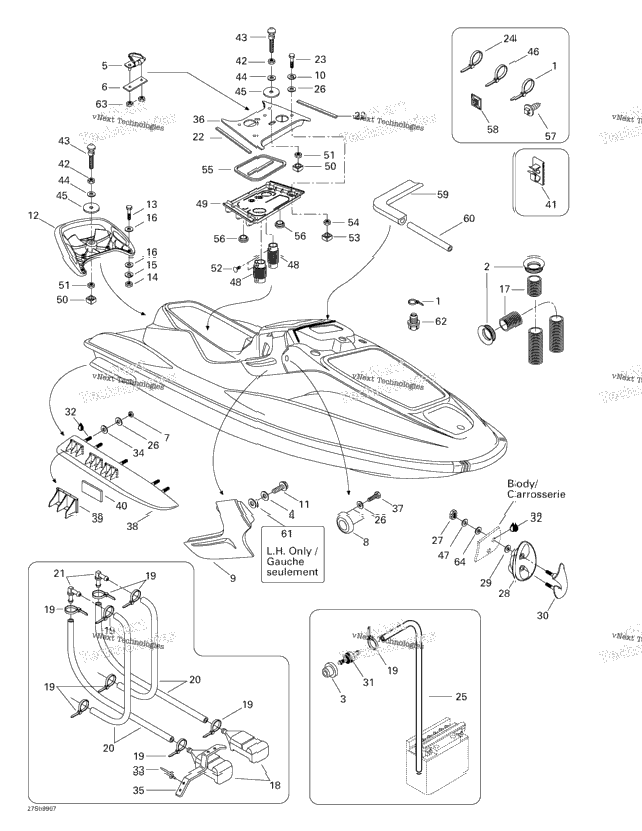

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 294000606 | Tie Rap 180 mm | 1 |
| 291001100 | VENT ADAPTOR | ||
| 1 | 293720029 | Grommet | 1 |
| 6 | 234042600 | Flat Washer 4 mm, Stainless | 6 |
| 291001353 | Hook (Seat) | ||
| 1 | 291000079 | REINFORCEMENT PLATE | 1 |
| 10 | 232561600 | Hex. Elastic Stop Nut M6 | 10 |
| 293000081 | Decorative Cap | ||
| 291000854 | RH Intake Grill (Black) | ||
| 291000853 | LH Intake Grill (Black) | ||
| 4 | 234161601 | Lock Washer Helical M6 | 4 |
| 7 | 241141660 | Hex. Flange Screw K40 X 16 | 7 |
| 295500369 | Grab Handle (Black) Includes 12 - 16. | ||
| 4 | 207064060 | Hex. Screw M6 X 40 | 4 |
| 4 | 232061600 | Hex. Nut M6 | 4 |
| 8 | 234062600 | Flat Washer M6, Stainless | 8 |
| 291001363 | Tube Vent | ||
| 292000079 | Screen Bailer | ||
| 9 | 293750001 | Tie Wrap 94 mm | 9 |
| 1 | 219704412 | Polyurethane Hose 8 MM 3000MM Long | 1 |
| 2 | 293710057 | ELBOW FITTING 90 | 2 |
| 293250008 | GASKET PAC = 1.0m | ||
| 4 | 207067060 | Hex. Screw M6 X 70 | 4 |
| 1 | 293750002 | Tie Wrap 142 mm | 1 |
| 1 | 219704414 | Was 415110000 Polyurethane Hose 5.2 mm | 1 |
| 15 | 234062600 | Flat Washer M6, Stainless | 15 |
| 2 | 232581600 | Hex. Elastic Nut M8 | 2 |
| 292000515 | Shell | ||
| 2 | 234081600 | Stainless, Flat Washer 8 mm | 2 |
| 1 | 292000514 | Eye-Bow | 1 |
| 275500167 | CHECK VALVE | ||
| 1 | 296000309 | Silicone Sealant 51388, 300 ml | 1 |
| 4 | 293150037 | Avdel Rivet 3/16" | 4 |
| 10 | 293250026 | GASKET | 10 |
| 2 | 292000398 | LH SPRING CLIP | 2 |
| 291000851 | Bridge Upper | ||
| 250000005 | Hex. Tapping Screw | ||
| 1 | 292000594 | RH SPONSON | 1 |
| 1 | 292000595 | LH SPONSON | 1 |
| 293450149 | Insert | ||
| 6 | 292000414 | CUSHION | 6 |
| 1 | 293750005 | TIE CLAMP | 1 |
| 2 | 232100600 | Hex. Jam Nut M10 | 2 |
| 2 | 291000945 | SEAT STUD | 2 |
| 2 | 234002600 | Flat Washer 10 mm, Stainless | 2 |
| 2 | 291000628 | RUBBER WASHER | 2 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
| 2 | 234082600 | Flat Washer 8 mm, Stainless | 2 |
| 291001368 | Vent Hose | ||
| 1 | 291001281 | BRIDGE LOWER | 1 |
| 271000598 | NUT HOUSING ASS'Y Includes 50 - 51. | ||
| 2 | 232501600 | HEX. ELASTIC NUT M10 | 2 |
| 2 | 293730011 | Black, Dart | 2 |
| 4 | 269500252 | M6 Nut Housing Ass'y Includes 53 - 54. | 4 |
| 1 | 219704364 | Neoprene Seal (1PAC=3M) | 1 |
| 293000049 | Plug | ||
| 1 | 293730018 | Mount Dart | 1 |
| 293750015 | TIE RAP MOUNT | ||
| 1 | 219704365 | Was 293200017 Neoprene Seal | 1 |
| 1 | 211200033 | FLAT WASHER | 1 |
| 1 | 293720042 | GROMMET | 1 |
| 2 | 232561600 | Hex. Elastic Stop Nut M6 | 2 |
| 2 | 293830037 | Rubber Washer | 2 |
