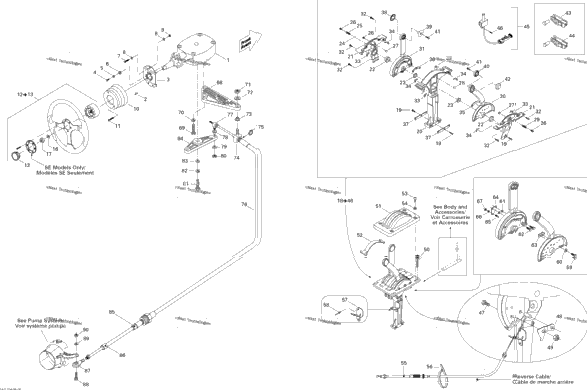

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 204390244 | HELM ASS'Y | ||
| 1 | 277000384 | WOODRUFF KEY | 1 |
| 277000383 | Support | ||
| 3 | 211000050 | HEX. SCREW 1/4-20 X 3/4?, SCOTCH GRIP | 3 |
| 3 | 234062600 | Flat Washer M6, Stainless | 3 |
| 3 | 234481608 | Serrated Lock Washer 8 mm | 3 |
| 3 | 207164060 | Hex. Screw M6 X 40 | 3 |
| 6 | 234061600 | Stainless Flat Washer M6 | 6 |
| 3 | 232561600 | Hex. Elastic Stop Nut M6 | 3 |
| 204390030 | COLLAR, BLACK | ||
| 204390059 | SCREW 8-32 X 1-1/4 | ||
| 204390588 | STEERING WHEEL ASS'Y Includes 12 to 13 | ||
| 1 | 204390563 | CENTER CAP | 1 |
| 1 | 211200006 | FLAT WASHER, STAINLESS | 1 |
| 1 | 211100021 | LOCK NUT 1/2-20 | 1 |
| 1 | 204390377 | Ultraflex Control Ass'y Includes 18 to 46 | 1 |
| 4 | 208651660 | SCREW M5 X 16 | 4 |
| XXXX | Not Available As Spare Part - LH Frame | ||
| XXXX | Not Available As Spare Part - Half-Case | ||
| 2 | 277000397 | BUSHING | 2 |
| 277000398 | BUSHING | ||
| 277000399 | BALL | ||
| 1 | 277000400 | SPRING | 1 |
| 3 | 277000402 | CAP SCREW | 3 |
| 277000403 | FRICTION INSERT | ||
| 1 | 277000404 | BLOCKING PIVOT | 1 |
| 1 | 277000401 | SPRING | 1 |
| 277000655 | THROTTLE LEVER | ||
| 277000414 | SHIFT LEVER | ||
| 4 | 204100016 | SCREW M5 X 20 | 4 |
| XXXX | Not Available As Spare Part - RH Water Seal | ||
| 277000424 | LH Water Seal | ||
| 1 | 277000659 | THROTTLE LEVER SPACER | 1 |
| 277000408 | Shift Lever Spacer | ||
| 2 | 204390227 | RETAINING PLATE | 2 |
| 277000417 | HALF-SHIFT HANDLE, THREADED | ||
| 277000418 | HALF-SHIFT HANDLE | ||
| 277000416 | HALF-THROTTLE HANDLE | ||
| 2 | 277000419 | SCREW M3.5 X 25 | 2 |
| 277000415 | HALF-THROTTLE HANDLE, THREADED | ||
| 204390226 | CLEVIS L26 | ||
| 204390225 | CLEVIS L25 | ||
| 1 | 278001195 | NEUTRAL SWITCH ASS'Y | 1 |
| 208630660 | SCREW M3 X 6 | ||
| 1 | 207151660 | HEX. SCREW M5 X 16 | 1 |
| 204390045 | THROTTLE LINK | ||
| 1 | 232551600 | Hex. Elastic Nut M5 | 1 |
| 208453060 | PHILLIPS SCREW M5 X 30 | ||
| 1 | 277001759 | PLATE CONTROL | 1 |
| 277001760 | CONTROL PLATE INSERT | ||
| 4 | 208641060 | Phillips Screw M4 X 10 | 4 |
| 4 | 234040600 | Flat Washer 4 mm | 4 |
| 1 | 204390576 | RH THROTTLE CABLE | 1 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 1 | 277000504 | CABLE SUPPORT | 1 |
| 2 | 293150026 | RIVET_POP 1/8 | 2 |
| 1 | 207161260 | Hex. Cap Screw M6 X 12 | 1 |
| 1 | 211200025 | Lock Washer 1/4” | 1 |
| 2 | 211200025 | Lock Washer 1/4” | 2 |
| 2 | 207161260 | Hex. Cap Screw M6 X 12 | 2 |
| 1 | 204390373 | REVERSE CATCH | 1 |
| 1 | 204390369 | STOP-REVERSE | 1 |
| 1 | 204390370 | REVERSE PIN | 1 |
| 1 | 232561600 | Hex. Elastic Stop Nut M6 | 1 |
| 1 | 277000458 | CABLE SUPPORT | 1 |
| 2 | 211000050 | HEX. SCREW 1/4-20 X 3/4?, SCOTCH GRIP | 2 |
| 1 | 211100024 | LOCK NUT | 1 |
| 1 | 234001600 | Flat Washer 10 mm, Stainless | 1 |
| 1 | 293350014 | Flanged Bushing | 1 |
| 277000461 | PIVOT 3/8? | ||
| 1 | 204390053 | HEX. JAM NUT 5/8-18 | 1 |
| 277001766 | CABLE STEERING | ||
| 277000456 | PIVOT | ||
| 204130095 | BUSHING | ||
| 1 | 211200019 | FLAT WASHER | 1 |
| 1 | 212000005 | NUT-STOP ELASTIC MS-17830 | 1 |
| 211000054 | HEX. SCREW 1/4-20 X 1?, SCOTCH GRIP | ||
| 1 | 234062600 | Flat Washer M6, Stainless | 1 |
| 1 | 204390040 | ARM | 1 |
| 277000440 | SEAL SWIVEL | ||
| 1 | 277000441 | TERMINAL WIPER | 1 |
| 1 | 204120074 | BALL JOINT | 1 |
| 1 | 207063560 | Hex. Screw M6 X 35 | 1 |
| 1 | 234061600 | Stainless Flat Washer M6 | 1 |
