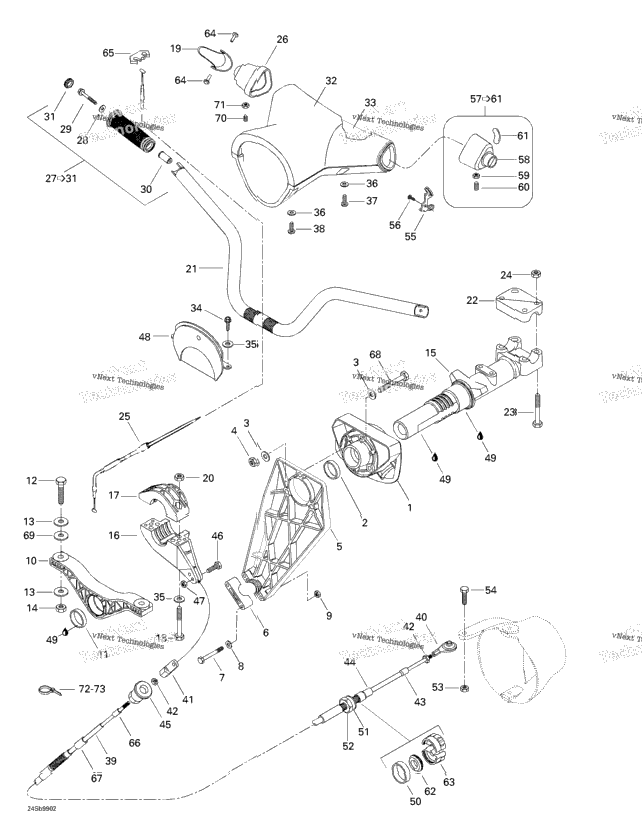

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 277000106 | Rear Support Includes 1 - 2. | ||
| 293900008 | Spherical Cushion | ||
| 6 | 234081600 | Stainless, Flat Washer 8 mm | 6 |
| 3 | 232581600 | Hex. Elastic Nut M8 | 3 |
| 277000161 | Cable Support | ||
| 1 | 277000162 | Support Thrust | 1 |
| 2 | 207065060 | Hex. Screw M6 X 50 | 2 |
| 2 | 234061600 | Stainless, Flat Washer M6 | 2 |
| 2 | 232561600 | Hex. Elastic Stop Nut M6 | 2 |
| 277000291 | Front Support Includes 10 - 11. | ||
| 293900009 | Spherical Cushion | ||
| 2 | 207084060 | Hex. Screw M8 X 40 | 2 |
| 4 | 234082600 | Flat Washer 8 mm, Stainless | 4 |
| 2 | 232581600 | Hex. Elastic Nut M8 | 2 |
| 277000375400 | Steering Stem | ||
| 277000165 | Steering Stem Arm | ||
| 277000510 | THRUST ARM | ||
| 2 | 207163060 | Hex. Screw M6 X 30 | 2 |
| 277000214 | Throttle Handle | ||
| 277000824 | Handle Bar | ||
| 277000142 | STEERING CLAMP | ||
| 4 | 207085060 | Hex. Screw M8 X 50 | 4 |
| 4 | 232581600 | Hex. Elastic Nut M8 | 4 |
| 277000468 | Throttle Cable | ||
| 277000285 | Throttle Handle Housing | ||
| 1 | 295500691 | HANDLE GRIP KIT, BLACK Includes 27 - 31. | 1 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 205000002 | Hex. Screw M6 x 30 | ||
| XXXX | Not Available As Spare Part - Grip Insert | ||
| 2 | 277000203 | Black, Cap | 2 |
| 1 | 277000500 | STEERING COVER (BLACK) | 1 |
| 277000187 | Foam (Top) | ||
| 2 | 211000036 | HEX. FLANGED SCREW 1/4-20 X 1/2 | 2 |
| 4 | 234062600 | Flat Washer M6, Stainless | 4 |
| 4 | 234051600 | Flat Washer M5, Stainless | 4 |
| 2 | 211000021 | PHILLIPS SCREW #10 X 7/8 | 2 |
| 211000037 | Phillips Screw 10-14 X 7/8” | ||
| 277000289 | STEERING CABLE | ||
| 1 | 277000153 | BALL JOINT | 1 |
| 277000646 | Joint | ||
| 2 | 212100005 | Hex. Nut | 2 |
| 277000038 | Small Boot | ||
| 1 | 277000039 | LARGE BOOT | 1 |
| 1 | 277000167 | KNOB ADJUSTER | 1 |
| 1 | 211000022 | HEX. SPECIAL SCREW M6 X 25 | 1 |
| 1 | 232561600 | Hex. Elastic Stop Nut M6 | 1 |
| 277000501 | Plate (Black) | ||
| 293550010 | Synthetic Grease, 400 G | ||
| 211100010 | Retaining Ring | ||
| 1 | 211200006 | FLAT WASHER, STAINLESS | 1 |
| 211100011 | Hex. Jam Nut 1/2-20 | ||
| 1 | 207063060 | Hex. Screw M6 X 30 | 1 |
| 277000845 | Retainer Plate | ||
| 1 | 209631360 | SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 | 1 |
| 277000498 | LH HANDLE HOUSING Includes 57 - 61. | ||
| XXXX | Not Available As Spare Part - Left Housing | ||
| 206361260 | SCREW-SET SOCKET DIN.914A2 | ||
| 1 | 277000497 | VTS KNOB | 1 |
| 211100009 | RUBBER WASHER | ||
| 277000168 | Half-Ring | ||
| 2 | 277000381 | PIN | 2 |
| 1 | 277000279 | TAB LOCK | 1 |
| 1 | 277000278 | SMALL BOOT | 1 |
| 277000277 | Large Boot | ||
| 207086560 | HEX. SCREW M8 X 65 | ||
| 277000100 | Plastic Washer | ||
| 1 | 293750002 | Tie Wrap 142 mm | 1 |
| 1 | 294000606 | Tie Rap 180 mm | 1 |
