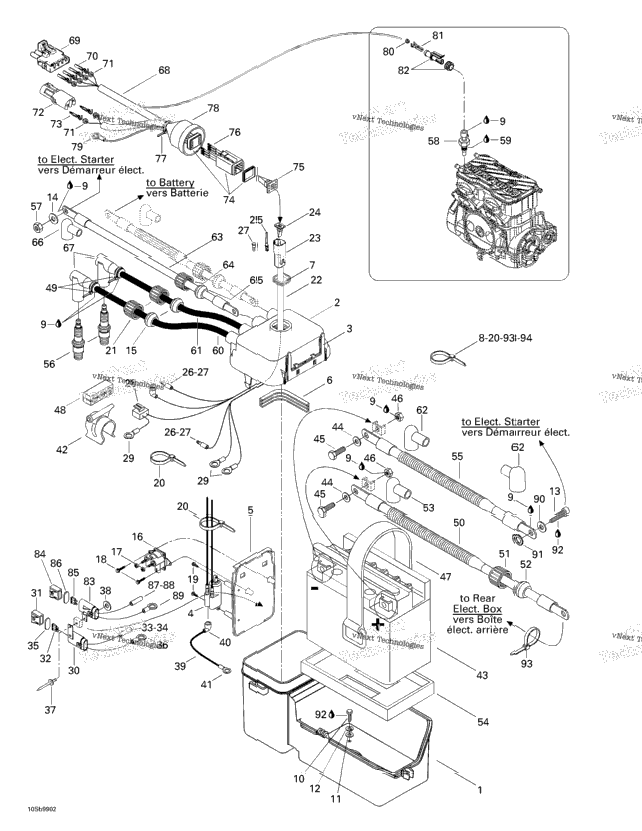

СвязатьсяСписок запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 278001191 | Base | ||
| 278001265 | Cover | ||
| 278000732 | Ground Plate | ||
| 1 | 278000383 | Ignition Coil | 1 |
| 278000826 | Mounting Plate | ||
| 278000440 | GASKET | ||
| 293200030 | Gasket | ||
| 1 | 293750002 | Tie Wrap 142 mm | 1 |
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 4 | 243041660 | HEX. PLASTITE SCREW M5.28 X 16 | 4 |
| 4 | 234052600 | Flat Washer 5 mm, Stainless | 4 |
| 4 | 211200043 | WASHER-LOCK IMPERIAL | 4 |
| 205081644 | SOCKET HEAD SCREW M8 X 16 | ||
| 1 | 234061600 | Stainless, Flat Washer M6 | 1 |
| 278000682 | Grommet | ||
| 1 | 278001376 | Starter Relay | 1 |
| 2 | 232561600 | Hex. Elastic Stop Nut M6 | 2 |
| 2 | 210261040 | Hex. Flange Screw M6 X 10 | 2 |
| 250000005 | Hex. Tapping Screw | ||
| 2 | 293750001 | Tie Wrap 94 mm | 2 |
| 278000100 | Electric Wire Cap | ||
| 278000663 | Rear Electric Box Harness Includes 22 - 29. | ||
| 1 | 270000137 | Female Connector, 6 Circuits | 1 |
| 1 | 278000735 | Female Lock, 6 Circuits | 1 |
| 6 | 278000631 | Male Terminal | 6 |
| 2 | 278000230 | Male Terminal | 2 |
| 2 | 278001008 | Insulated Sheath | 2 |
| 2 | 278001114 | Female Terminal | 2 |
| 278000300 | Ring Terminal | ||
| 278000665 | Fuse Harness 15 Amp Includes 30 - 36. | ||
| 1 | 278001326 | Fuse Holder Cap | 1 |
| 1 | 278000343 | Fuse, 15 Amperes | 1 |
| 1 | 278001009 | Female Terminal | 1 |
| 1 | 278001007 | Insulated Sheath | 1 |
| 1 | 278000805 | Cushion | 1 |
| 1 | 293150014 | Pop Rivet 3/16" | 1 |
| 1 | 213200016 | Flat Washer, Emhart | 1 |
| 278000664 | Ground Harness Includes 39 - 41. | ||
| 1 | 278000228 | FEMALE TERMINAL | 1 |
| 1 | 278000559 | COLLAR SUPPORT | 1 |
| 1 | 278000712 | Battery | 1 |
| 2 | 211200018 | FLAT WASHER 6 MM | 2 |
| 2 | 211000045 | Battery Screw | 2 |
| 2 | 211100022 | Battery Nut M6 | 2 |
| 293850031 | STRAP | ||
| 1 | 278000245 | 3 WIRE SUPPORT | 1 |
| 2 | 293750002 | Tie Wrap 142 mm | 2 |
| 278000511 | Engine Harness Includes 50 - 53. | ||
| 278000098 | GROMMET | ||
| 1 | 278000020 | PROTECTION CAP | 1 |
| 278001234 | Battery Lower Pad | ||
| 278000512 | Battery Ground Cable | ||
| 2 | 278000609 | Spark Plug, NGK BR8-ES | 2 |
| 1 | 232561600 | Hex. Elastic Stop Nut M6 | 1 |
| 1 | 278000965 | Temperature Sensor | 1 |
| 1 | 219704456 | Était/Was 293800038 Loctite 518, 50 ml | 1 |
| 1 | 278001268 | Spark Plug Wire | 1 |
| 2 | 278000020 | PROTECTION CAP | 2 |
| 278000444 | Starter Cable (Red) Includes 63 - 66. | ||
| 2 | 278000237 | Spark Plug Cap | 2 |
| 278001207 | Intermediate Harness Includes 68 - 82. | ||
| 1 | 278000395 | Male Housing, 4 Circuits | 1 |
| 3 | 278000223 | Female Terminal | 3 |
| 1 | 409007300 | Female Terminal | 1 |
| 6 | 278000218 | Wire Seal | 6 |
| 1 | 278000217 | Female Housing, 2 Circuits | 1 |
| 2 | 278000222 | Male Terminal | 2 |
| 1 | 278000736 | Male Connector, 6 Circuits | 1 |
| 1 | 278000737 | MALE LOCK, 6 CIRCUITS | 1 |
| 6 | 278000632 | Female Terminal | 6 |
| 570150700 | Switch Boot | ||
| 1 | 278000992 | Open Barrel | 1 |
| 1 | 278001013 | Wire Seal | 1 |
| 1 | 278001014 | Female Terminal | 1 |
| 1 | 278001012 | Male Housing, 1 Circuit | 1 |
| 278000666 | Fuse Harness 7.5 Amp Includes 83 - 89. | ||
| 1 | 278000704 | FUSE, 7.5 AMPERES | 1 |
| 1 | 234081600 | Stainless, Flat Washer 8 mm | 1 |
| 234381608 | TOOTHED LOCK WASHER | ||
| 1 | 293800005 | Loctite 271, 10 ml | 1 |
| 1 | 293750009 | Tie-Rap 173 mm | 1 |
| 1 | 294000606 | Tie Rap 180 mm | 1 |
