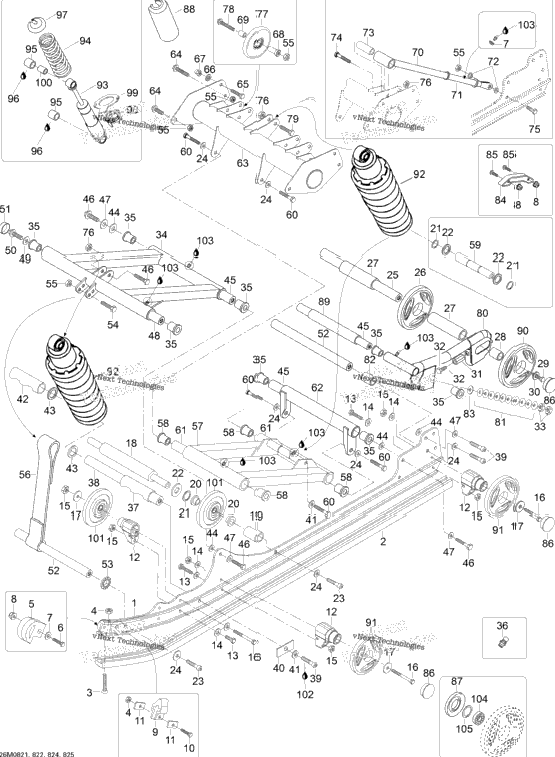

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 605253573 | RAIL_SUSPENSION MACHINED | ||
| 2 | 605355362 | Slide Shoe | 2 |
| M40059 | Screw M6X60 | ||
| 4 | 232561414 | Elastic Stop Nut M6 | 4 |
| 2 | 605348954 | Runner Protector | 2 |
| 2 | 207162544 | Hex. Screw M6 X 25 | 2 |
| 4 | 234061410 | Flat Washer 6 mm | 4 |
| 6 | M33200 | Nut M6 | 6 |
| M5448216 | Rubber Stopper | ||
| 2 | 207063044 | Hex. Screw M6 X 30 | 2 |
| M548470 | Plate | ||
| 605450182 | SUPPORT | ||
| 6 | 207182544 | Hex. Screw M8 X 25 | 6 |
| 12 | M20104 | Washer | 12 |
| 12 | 232581414 | Hex. Elastic Stop Nut M8 | 12 |
| M40089 | Screw | ||
| 6 | 503183100 | Washer | 6 |
| M5347950 | AXLE | ||
| M5447951 | SLEEVE | ||
| 4 | 503189534 | Cushion | 4 |
| 4 | M31007 | Circlip | 4 |
| M31091 | SHIM | ||
| 4 | M40134 | Allen Screw M10 X 45 | 4 |
| M20105 | WASHER-FLAT | ||
| M5343284 | SHAFT | ||
| 1 | 503189478 | Thin Wheel 165 | 1 |
| 2 | M5444096 | Sleeve | 2 |
| M5444098 | Sleeve L=29 | ||
| M40050 | Hex. Screw With Nylon Patch | ||
| 2 | 503183300 | Washer | 2 |
| 2 | 605633002 | Spacer | 2 |
| M40239 | SCREW | ||
| 4 | 232006414 | Hex. Nut M10 X 1.5 | 4 |
| 1 | 605255303 | Front arm | 1 |
| 10 | M31024 | Slide Bearing | 10 |
| M34011 | GREASE FITTING | ||
| M5347718 | LIMITER | ||
| 1 | M5347726 | Axe *Shaft | 1 |
| M40536 | Allen Screw M10 X 45 | ||
| 2 | M5447940 | Support Plate | 2 |
| 4 | M20068 | Lock Washer | 4 |
| M5346649 | SLEEVE | ||
| 2 | M31013 | Shim | 2 |
| 6 | M20116 | Washer | 6 |
| 3 | M5347713 | Axe *Shaft | 3 |
| 5 | 207004544 | Hex. Screw M10 X 45 | 5 |
| 6 | 512056700 | Lock Washer | 6 |
| 1 | 605348606 | Shaft | 1 |
| M20090 | Conical Spring Washer | ||
| M40243 | Screw M12 X 60 | ||
| M5448025 | Cap | ||
| 2 | M5347717 | Axe *Shaft | 2 |
| M4181158 | Washer | ||
| 1 | 207084544 | Hex. Screw M8 X 45 | 1 |
| 9 | 232581414 | Hex. Elastic Stop Nut M8 | 9 |
| 1 | M5447919 | Stopper Strap | 1 |
| 605349313 | Rear Arm Weld Light | ||
| 4 | M31027 | Slide Bearing | 4 |
| 605451897 | REARSHOCK SHAFT | ||
| 6 | 207004044 | Hex. Screw M10 X 40 | 6 |
| M5346865 | SHAFT | ||
| M5347668 | Welded Rear Arm | ||
| 1 | 605249988 | UPPER ARM | 1 |
| 4 | M40058 | Carriage Bolt | 4 |
| M40056 | Screw | ||
| XXX | Not Available As Spare Parts | ||
| M33044 | Nut | ||
| 605450372 | FLANGED SLEEVE | ||
| 605450373 | SLEEVE | ||
| 2 | M5347851 | Tube *Tube | 2 |
| M5347852 | Axe *Shaft | ||
| M5447853 | Insert | ||
| M5447848 | SLEEVE | ||
| 2 | 207086044 | HEX. SCREW M8 X 60 | 2 |
| 2 | 207103544 | Hex. Screw M10 X 35 | 2 |
| 4 | 233601416 | Elastic Locking Nut M10 X 1.5 | 4 |
| M46027 | Idler Wheel | ||
| M40088 | Hex. Screw M8 X 70 | ||
| 1 | 207005044 | Hex. Screw M10 X 1.5 X 50 | 1 |
| 1 | 605252505 | EXTENSION WELDELD RH | 1 |
| 605252504 | EXTENSION WELDELD LH | ||
| 60 | M25004 | Spring Plate | 60 |
| 2 | M5447373 | Adjuster Bolt Eye | 2 |
| 2 | M20011 | Washer | 2 |
| 2 | M5343191 | PROTECTOR | 2 |
| 4 | M40064 | Hex. Screw | 4 |
| 6 | 570063600 | Wheel Cap | 6 |
| 4 | 572089000 | LABYRINTH SEAL | 4 |
| 2 | M5346754 | Shock Protector | 2 |
| 1 | 605448429 | Sleeve | 1 |
| 2 | 503190856 | Wheel 165 mm | 2 |
| 4 | 503190796 | WHEEL 139 MM ASS'Y, FULL MOON | 4 |
| 605350536 | CENTER SHOCK Central, Includes 92 to 98 | ||
| 605348909 | Shock Ass'y, Rear Rear, Includes 92 to 99 | ||
| M23204 | Center Shock Central | ||
| M23162 | REAR SHOCK Rear | ||
| M25065 | WHITE SPRING Central | ||
| M25060 | White Spring Rear | ||
| 4 | M31094 | Sleeve | 4 |
| 1 | M230076 | Spring Stopper | 1 |
| M230078 | CAM | ||
| 605348748 | ARM ADJUSTING ASS'Y Rear | ||
| 2 | M5446652 | Sleeve | 2 |
| 4 | 503190798 | Wheel 139 mm Ass'y | 4 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 219700417 | SYNTHETIC GREASE, 400 G | ||
| 1 | 503190795 | Ball Bearing | 1 |
| 371901700 | CIRCLIP |
