Демо
PowerCatalog
Интерактивное демо базы запчастей
Просматривайте запчасти для ATV, мотоциклов, снегоходов, водных моторов и другой техники по марке, году и модели. Каталог доступен для покупки в виде базы данных SQL с изображениями или для аренды.

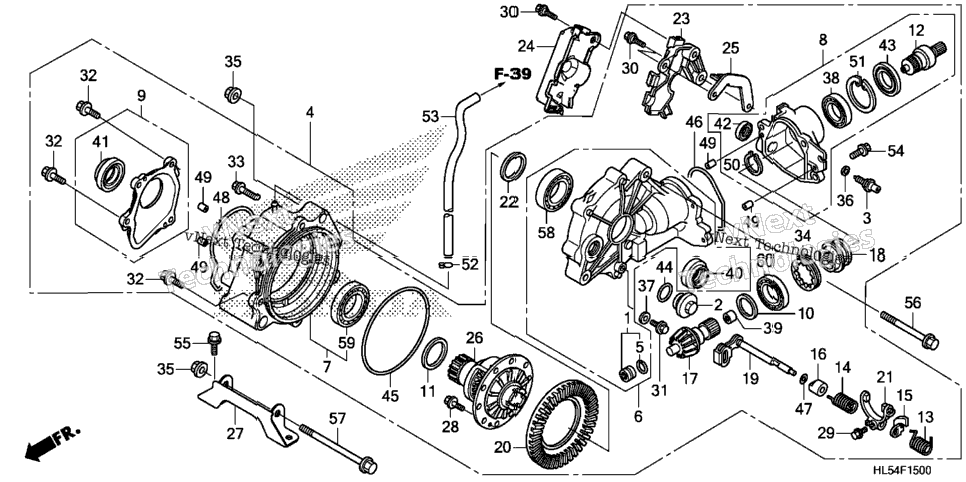

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 06910-HL5-E60 | BEARING SET, NEEDLE | 1 |
| 1 | 12361-035-000 | CAP, TAPPET ADJUSTING HOLE | 1 |
| 12361-300-000 | CAP, VALVE ADJ. | ||
| 12361-371-980 | CAP, VALVE ADJ. | ||
| 1 | 35600-HN7-003 | SWITCH ASSY., NEUTRAL | 1 |
| 1 | 41400-HL5-E60 | GEAR ASSY., FR. FINAL | 1 |
| 1 | 41405-HA7-670 | RING, STOPPER | 1 |
| 1 | 41411-HL5-E60 | CASE SUB-ASSY., FR. FINAL GEAR | 1 |
| 1 | 41412-HL3-600 | COVER SUB-ASSY., FR. FINAL GEAR | 1 |
| 1 | 41413-HL5-A40 | CASE SUB-ASSY., FR. CLUTCH | 1 |
| 1 | 41414-HL5-A00 | COVER SUB-ASSY., R. FR. FINAL GEAR | 1 |
| 1 | 41447-HM8-000 | SHIM A, PINION GEAR (1.64) | 1 |
| 1 | 41448-HM8-000 | SHIM B, PINION GEAR (1.70) | 1 |
| 1 | 41449-HM8-000 | SHIM C, PINION GEAR (1.76) | 1 |
| 1 | 41451-HM8-000 | SHIM D, PINION GEAR (1.82) | 1 |
| 1 | 41452-HM8-000 | SHIM E, PINION GEAR (1.88) | 1 |
| 1 | 41453-HM8-000 | SHIM F, PINION GEAR (1.94) | 1 |
| 1 | 41454-HM8-000 | SHIM G, PINION GEAR (2.00) | 1 |
| 1 | 41455-HM8-000 | SHIM H, PINION GEAR (2.06) | 1 |
| 1 | 41456-HM8-000 | SHIM I, PINION GEAR (2.12) | 1 |
| 1 | 41457-HM8-000 | SHIM J, PINION GEAR (2.18) | 1 |
| 41458-HN0-670 | SHIM K, PINION GEAR (2.24) | ||
| 41459-HN0-670 | SHIM L, PINION GEAR (2.30) | ||
| 41461-HN0-670 | SHIM M, PINION GEAR (2.36) | ||
| 1 | 41462-HN0-670 | SHIM N, PINION GEAR (2.42) | 1 |
| 41463-HN0-670 | SHIM O, PINION GEAR (2.48) | ||
| 1 | 41450-HL1-A00 | SHIM A, RING GEAR (0.64) | 1 |
| 1 | 41451-HL1-A00 | SHIM B, RING GEAR (0.70) | 1 |
| 1 | 41452-HL1-A00 | SHIM C, RING GEAR (0.76) | 1 |
| 1 | 41453-HL1-A00 | SHIM D, RING GEAR (0.82) | 1 |
| 1 | 41454-HL1-A00 | SHIM E, RING GEAR (0.88) | 1 |
| 1 | 41455-HL1-A00 | SHIM F, RING GEAR (0.94) | 1 |
| 1 | 41456-HL1-A00 | SHIM G, RING GEAR (1.00) | 1 |
| 1 | 41457-HL1-A00 | SHIM H, RING GEAR (1.06) | 1 |
| 1 | 41458-HL1-A00 | SHIM I, RING GEAR (1.12) | 1 |
| 1 | 41459-HL1-A00 | SHIM J, RING GEAR (1.18) | 1 |
| 1 | 41460-HL1-A00 | SHIM K, RING GEAR (1.24) | 1 |
| 1 | 41461-HL1-A00 | SHIM L, RING GEAR (1.30) | 1 |
| 1 | 41462-HL1-A00 | SHIM M, RING GEAR (1.36) | 1 |
| 1 | 41463-HL1-A00 | SHIM N, RING GEAR (1.42) | 1 |
| 1 | 41464-HL1-A00 | SHIM O, RING GEAR (1.48) | 1 |
| 1 | 41502-HL5-A40 | JOINT, FR. FINAL CLUTCH | 1 |
| 1 | 41503-HP5-600 | SPRING, FR. FINAL CLUTCH | 1 |
| 1 | 41504-HP5-600 | SPRING, FR. FINAL CLUTCH LOCK | 1 |
| 1 | 41505-HP5-600 | STOPPER, FR. FINAL CLUTCH | 1 |
| 1 | 41506-HL1-A00 | COLLAR, FR. FINAL CLUTCH | 1 |
| 1 | 41521-HL5-A00 | GEAR, FR. PINION (13T) | 1 |
| 1 | 41527-HP5-600 | SLEEVE, FR. FINAL CLUTCH | 1 |
| 1 | 41530-HL1-A00 | SHAFT, FR. FINAL CLUTCH | 1 |
| 1 | 41531-HL5-A00 | GEAR, FR. RING (53T) | 1 |
| 1 | 41550-HP5-600 | FORK, FR. FINAL CLUTCH | 1 |
| 1 | 41580-HL1-A00 | SHIM A, RING GEAR (0.64) | 1 |
| 1 | 41581-HL1-A00 | SHIM B, RING GEAR (0.70) | 1 |
| 1 | 41582-HL1-A00 | SHIM C, RING GEAR (0.76) | 1 |
| 1 | 41583-HL1-A00 | SHIM D, RING GEAR (0.82) | 1 |
| 1 | 41584-HL1-A00 | SHIM E, RING GEAR (0.88) | 1 |
| 1 | 41585-HL1-A00 | SHIM F, RING GEAR (0.94) | 1 |
| 1 | 41586-HL1-A00 | SHIM G, RING GEAR (1.00) | 1 |
| 1 | 41587-HL1-A00 | SHIM H, RING GEAR (1.06) | 1 |
| 1 | 41588-HL1-A00 | SHIM I, RING GEAR (1.12) | 1 |
| 1 | 41589-HL1-A00 | SHIM J, RING GEAR (1.18) | 1 |
| 1 | 41590-HL1-A00 | SHIM K, RING GEAR (1.24) | 1 |
| 1 | 41591-HL1-A00 | SHIM L, RING GEAR (1.30) | 1 |
| 1 | 41592-HL1-A00 | SHIM M, RING GEAR (1.36) | 1 |
| 1 | 41593-HL1-A00 | SHIM N, RING GEAR (1.42) | 1 |
| 1 | 41594-HL1-A00 | SHIM O, RING GEAR (1.48) | 1 |
| 1 | 41595-HL1-A00 | SHIM P, RING GEAR (1.54) | 1 |
| 1 | 41596-HL1-A00 | SHIM Q, RING GEAR (1.60) | 1 |
| 1 | 41711-HL1-A00 | CASE, CLUTCH ARM | 1 |
| 1 | 41712-HL1-A00 | COVER, CLUTCH ARM | 1 |
| 1 | 41715-HL1-A00 | STAY, CLUTCH CABLE | 1 |
| 1 | 42420-HL1-A00 | CASE, FR. DIFFERENTIAL | 1 |
| 1 | 50350-HL5-A00 | BRACKET, FR. FINAL CASE | 1 |
| 10 | 90101-HN2-680 | BOLT, UBS (8X17) | 10 |
| 1 | 90101-HP5-600 | BOLT, SPECIAL (6MM) | 1 |
| 3 | 90106-MM9-000 | BOLT, FR. FENDER FIXING | 3 |
| 1 | 90109-371-000 | BOLT, SEALING (8MM) | 1 |
| 8 | 90133-HP5-600 | BOLT, FLANGE (8X27) | 8 |
| 2 | 90134-HP5-600 | BOLT, FLANGE (10X35) | 2 |
| 1 | 90242-MB0-000 | NUT, LOCK (64MM) | 1 |
| 2 | 90305-HC4-000 | NUT, SELF-LOCK (12MM) | 2 |
| 1 | 90443-KR0-000 | WASHER, NEUTRAL SWITCH | 1 |
| 1 | 90471-580-000 | WASHER (8MM) | 1 |
| 1 | 91059-HL4-A01 | BEARING, RADIAL BALL (60/32) | 1 |
| 1 | 91056-HP5-601 | BEARING, NEEDLE (12X18X12) | 1 |
| 1 | 91252-HL1-A01 | OIL SEAL (35X56X8) | 1 |
| 1 | 91252-HL5-A01 | OIL SEAL (40X61X8) | 1 |
| 1 | 91253-HL1-A01 | OIL SEAL (22X30X5) | 1 |
| 1 | 91254-HR3-A21 | OIL SEAL (42X58X12) | 1 |
| 1 | 91302-001-020 | O-RING (30.8MM) (Honda Code 0001065) | 1 |
| 1 | 91351-HL1-A01 | O-RING (156.5X1.9) | 1 |
| 1 | 91351-HP5-601 | GASKET, FR. FINAL CLUTCH COVER | 1 |
| 1 | 91352-GAZ-930 | O-RING (8.5X1.5) (L. SIDE ONLY) | 1 |
| 1 | 91355-HL1-A01 | GASKET, R. SIDE COVER | 1 |
| 4 | 94301-06100 | PIN A, DOWEL (6X10) (YAMADA) | 4 |
| 1 | 94510-32000 | CIRCLIP (OUTER) (32MM) | 1 |
| 1 | 94520-58000 | CIRCLIP (INNER) (58MM) | 1 |
| 1 | 95002-35000 | CLIP, TUBE (C6.5) | 1 |
| 1 | 95005-35001-30M | BULK HOSE, VACUUM (3.5X1000) (3.5X860) (BULK HOSE: 95005-35001-30M) | 1 |
| 3 | 95701-08025-00 | BOLT, FLANGE (8X25) | 3 |
| 2 | 95701-10020-00 | BOLT, FLANGE (10X20) BOLT, FLANGE (10X16) | 2 |
| 1 | 95801-12110-08 | BOLT, FLANGE (12X110) | 1 |
| 1 | 95801-12150-00 | BOLT, FLANGE (12X150) | 1 |
| 1 | 91057-HL4-A01 | BEARING, RADIAL BALL (6008) | 1 |
| 1 | 91057-HL3-601 | BEARING, RADIAL BALL (6009) | 1 |
| 1 | 96100-62060-00 | BEARING, RADIAL BALL (6206) | 1 |
