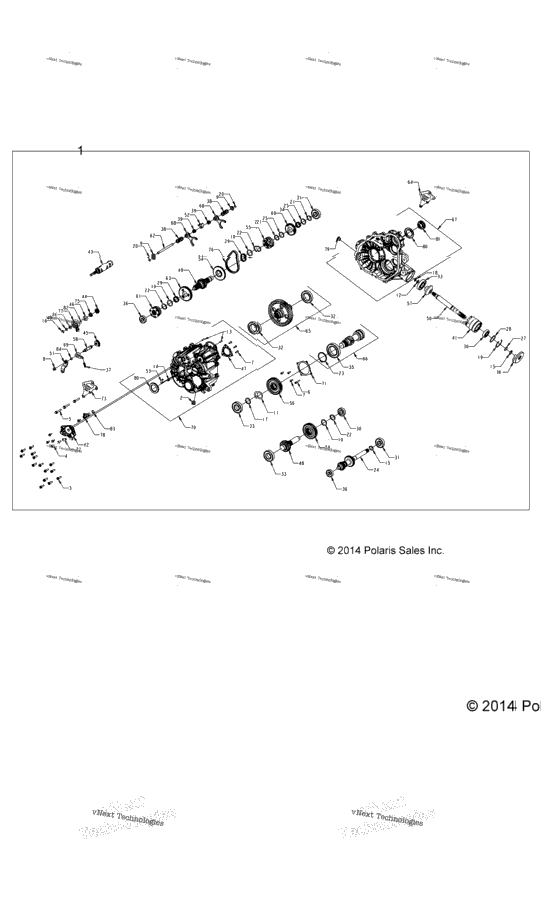

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1333143 | ASM-GEARCASE,COMPLETE | ||
| 1 | 3234756 | SOCKET HEAD W/ MAG PLUG 18 MM X | 1 |
| 14 | 3234898 | HEX HEAD FLANGE SCREW 8MMX1.25M | 14 |
| 6 | 3235206 | SCREW | 6 |
| 3 | 3235207 | SCREW | 3 |
| 1 | 3235208 | SCREW, 6 MM X 1.0 MM 40 MM | 1 |
| 6 | 3235332 | SOCKET HEAD SCREW, 6 MM X 1 MM | 6 |
| 1 | 3235210 | HEXFLANGE NUT, NYLON, 8 MM X 1. | 1 |
| 2 | 3234091 | CUP WASHER | 2 |
| 3 | 3235211 | WASHER | 3 |
| 1 | 3235212 | WASHER | 1 |
| 1 | 3235213 | WASHER | 1 |
| 3234340 | LOCTITE, 2760 RED | ||
| 1 | 7043746 | SPRING-SLOTTED PIN,6MM | 1 |
| 2 | 3233106 | SNAP RING | 2 |
| 1 | 3233834 | RETAINING RING | 1 |
| 1 | 3233364 | RETAINING RING | 1 |
| 1 | 3234318 | EXTERNAL RETAINING RING | 1 |
| 1 | 3234269 | RING,RETAININGBASICINTRNL2.047 | 1 |
| 2 | 3234090 | RETAINING RING | 2 |
| 2 | 3234205 | RETAINING RING | 2 |
| 3 | 3235214 | RETAINING RING | 3 |
| 1 | 3235216 | RETAINING RING | 1 |
| 1 | 3235560 | SHAFT,BOSS LW,INPUT,AVALANCHE | 1 |
| 2 | 3233378 | THRUST WASHER | 2 |
| 1 | 3234642 | THRUST WASHER, .446 X .88 X .02 | 1 |
| 1 | 3234272 | SHIM 1.180 X .995(9) | 1 |
| 1 | 3234273 | SHIM, 2.040 OD X 1.630 ID | 1 |
| 2 | 3233014 | NEEDLE BEARING | 2 |
| 2 | 3233019 | BEARING | 2 |
| 2 | 3233020 | BEARING | 2 |
| 2 | 3233268 | BALL BEARING | 2 |
| 3 | 3234065 | BALL BEARNING | 3 |
| 1 | 3233384 | NEEDLE BEARING | 1 |
| 1 | 3235218 | BALL BEARING | 1 |
| 2 | 3234652 | BALL BEARING | 2 |
| 1 | 3233830 | COMPRESSION SPRING | 1 |
| 2 | 3234078 | COMPRESSION SPRING | 2 |
| 2 | 3234089 | COMPRESSION SPRING | 2 |
| 1 | 3235327 | SPRING WASHER | 1 |
| 1 | 3234278 | SNORKLE TUBE | 1 |
| 1 | 3234188 | GEARCASE COVER | 1 |
| 1 | 3235463 | SHIFT DRUM [INCL. ALL HARDWARE] | 1 |
| 1 | 3233839 | SECTOR GEAR, 16 TOOTH | 1 |
| 1 | 3233832 | SECTOR GEAR, 31 TOOTH CUT TO 11 | 1 |
| 3235453 | Discontinued | ||
| 1 | 3235456 | PARK PLATE | 1 |
| 1 | 3235223 | IDLER SHAFT, 29 TOOTH | 1 |
| 1 | 3235380 | 27T REVERSE SHAFT | 1 |
| 1 | 3235394 | FRONT OUTPUT SHAFT | 1 |
| 1 | 3235532 | BELLCRANK | 1 |
| 1 | 3234073 | SHIFT COLLAR | 1 |
| 1 | 3234230 | TUBE-VENT,90-1/4 HOSE | 1 |
| 1 | 3235231 | SPROCKET, 48 TOOTH, 6 FACE | 1 |
| 1 | 3235233 | 6 FACE ENGAGEMENT DOG | 1 |
| 1 | 3235236 | STAGE 3 GEAR, 46 TOOTH | 1 |
| 1 | 3235237 | OUTPUT GEAR, FRONT, 13 TOOTH | 1 |
| 1 | 3235238 | SHIFT SHAFT | 1 |
| 1 | 3235381 | STAGE 3 GEAR, 46 TOOTH | 1 |
| 1 | 3235396 | GEAR, 49 TOOTH | 1 |
| 1 | 3235457 | PARK/LOW SHIFT DOG | 1 |
| 1 | 3235542 | SHIFT RAIL, SHAFT | 1 |
| 1 | 3235561 | GEAR, 61T | 1 |
| 1 | 3235527 | WELD-BKT,MNT,RR(422042/422100) | 1 |
| 1 | 3235335 | OUTPUT GEAR SUBASSEMBLY | 1 |
| 1 | 3235336 | PINION SHAFT SUBASSEMBLY [INCL. BEARING AND RETAINING RING | 1 |
| 1 | 3235382 | CASE SUBASSEMBLY, LEFT | 1 |
| 2 | 3235454 | SHIFT FORK SUBASSEMBLY | 2 |
| 1 | 3235452 | ROLLER PAWL | 1 |
| 1 | 3235444 | CASE SUBASSEMBLY, RIGHT | 1 |
| 1 | 3235241 | CENTER DRIVE BEARING COVER | 1 |
| 1 | 3235350 | BRKT-MOUNT(430592) | 1 |
| 1 | 3235528 | BRKT-MNT,REAR (422042/422100) | 1 |
| 1 | 3234113 | TRIPLE LIP SEAL, 25 X 80 X 10 | 1 |
| 1 | 3235243 | SPACER | 1 |
| 1 | 3234737 | SILENT CHAIN | 1 |
| 1 | 7661999 | GEAR POSITION SWITCH PIN | 1 |
| 1 | 4013908 | SENSOR,SPEED | 1 |
| 1 | 3234755 | PLUG, M18 X 1.5 | 1 |
| 2 | 3235052 | VITON TRIPLE LIP SEAL, 40 X 70 | 2 |
| 1 | 3234851 | SEAL | 1 |
| 1 | 3233076 | O-RING | 1 |
| 1 | 3234302 | O-RING | 1 |
| 1 | 3233869 | O-RING | 1 |
