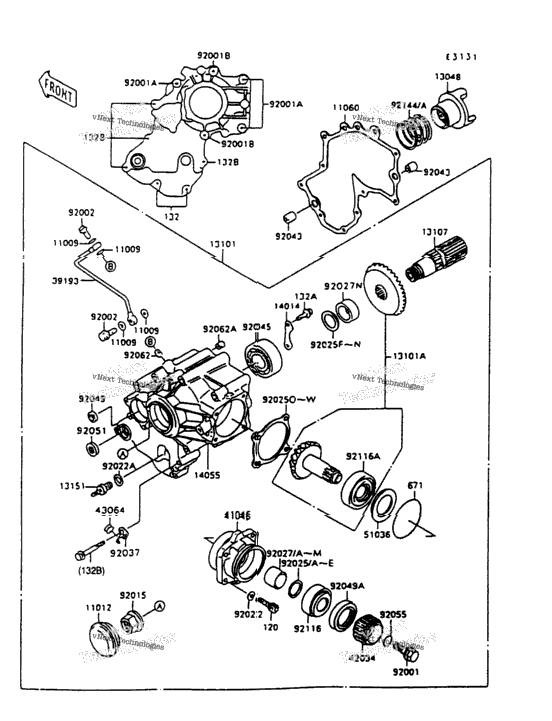

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 4 | 11009-1344 | GASKET,8.2X14X1.0 | 4 |
| 1 | 11012-1071 | CAP | 1 |
| 1 | 11060-1120 | GASKET-GEAR CASE | 1 |
| 1 | 13048-1074 | CAM-DAMPER | 1 |
| 13101-1118 | GEAR-ASSY,BEVEL,FR | ||
| 13101-5065 | GEAR-ASSY,BEVEL,FR | ||
| 13107-1263 | SHAFT,BEVEL,FR | ||
| 1 | 13151-1010 | SWITCH-COMP | 1 |
| 1 | 14014-1084 | PLATE-POSITION | 1 |
| 14055-1074 | CASE-GEAR | ||
| 1 | 39193-1026 | PIPE-OIL | 1 |
| 41046-1085 | HOUSING-BEARING | ||
| 1 | 42034-1091 | COUPLING,FR DRIVEN | 1 |
| 1 | 43064-006 | GROMMET,HOSE CLAMP | 1 |
| 1 | 51036-1002 | CUP | 1 |
| 1 | 92001-1169 | BOLT,FLANGED,12X42 | 1 |
| 92001-1480 | BOLT,8X90 | ||
| 92001-1597 | BOLT,FLANGED,8X110 | ||
| 92002-1429 | BOLT,BANJO,8X20 | ||
| 1 | 92015-1554 | NUT,24MM | 1 |
| 4 | 92022-1028 | WASHER,8.5X13X1 | 4 |
| 1 | 92022-1211 | WASHER | 1 |
| 1 | 92025-1072 | SHIM,25.2X29.8X1.70 | 1 |
| 1 | 92025-1073 | SHIM,25.2X29.8X1.72 | 1 |
| 1 | 92025-1074 | SHIM,25.2X29.8X1.74 | 1 |
| 1 | 92025-1075 | SHIM,25.2X29.8X1.76 | 1 |
| 1 | 92025-1076 | SHIM,25.2X29.8X1.78 | 1 |
| 1 | 92025-1077 | SHIM,25.2X29.8X1.80 | 1 |
| 1 | 92025-1688 | SHIM,25.3X36X0.15 | 1 |
| 1 | 92025-1689 | SHIM,25.3X36X0.50 | 1 |
| 1 | 92025-1690 | SHIM,25.3X36X0.60 | 1 |
| 1 | 92025-1691 | SHIM,25.3X36X0.70 | 1 |
| 1 | 92025-1692 | SHIM,25.3X36X0.80 | 1 |
| 1 | 92025-1693 | SHIM,25.3X36X0.90 | 1 |
| 1 | 92025-1694 | SHIM,25.3X36X1.00 | 1 |
| 1 | 92025-1695 | SHIM,25.3X36X1.10 | 1 |
| 1 | 92025-1696 | SHIM,25.3X36X1.20 | 1 |
| 1 | 92025-1818 | SHIM,T=0.15 | 1 |
| 1 | 92025-1819 | SHIM,T=0.50 | 1 |
| 1 | 92025-1820 | SHIM,T=0.60 | 1 |
| 4 | 120P0830 | BOLT-SOCKET,8X30 | 4 |
| 2 | 132E0630 | BOLT-FLANGED-SMALL,6X30 | 2 |
| 2 | 132G0616 | BOLT-FLANGED-SMALL | 2 |
| 4 | 132G0655 | BOLT-FLANGED-SMALL | 4 |
| 1 | 671B2565 | O RING,65MM | 1 |
| 1 | 92025-1821 | SHIM,T=0.70 | 1 |
| 1 | 92025-1822 | SHIM,T=0.80 | 1 |
| 1 | 92025-1823 | SHIM,T=0.90 | 1 |
| 1 | 92025-1824 | SHIM,T=1.00 | 1 |
| 1 | 92025-1825 | SHIM,T=1.20 | 1 |
| 1 | 92025-1826 | SHIM,T=0.10 | 1 |
| 1 | 92027-1152 | COLLAR,25.2X29.8X22.8 | 1 |
| 92027-1153 | COLLAR,25.2X29.8X22.9 | ||
| 1 | 92027-1154 | COLLAR,25.2X29.8X23 | 1 |
| 1 | 92027-1155 | COLLAR,25.2X29.8X23.1 | 1 |
| 1 | 92027-1156 | COLLAR,25.2X29.8X23.2 | 1 |
| 92027-1157 | COLLAR,25.2X29.8X23.3 | ||
| 1 | 92027-1158 | COLLAR,25.2X29.8X23.4 | 1 |
| 1 | 92027-1159 | COLLAR,25.2X29.8X23.5 | 1 |
| 1 | 92027-1160 | COLLAR,25.2X29.8X23.6 | 1 |
| 1 | 92027-1161 | COLLAR,25.2X29.8X23.7 | 1 |
| 1 | 92027-1162 | COLLAR,25.2X29.8X23.8 | 1 |
| 1 | 92027-1163 | COLLAR,25.2X29.8X23.9 | 1 |
| 1 | 92027-1164 | COLLAR,25.2X29.8X24 | 1 |
| 1 | 92027-1165 | COLLAR,25.2X29.8X24.1 | 1 |
| 92027-1968 | COLLAR,25.3X36X10 | ||
| 92037-1873 | CLAMP | ||
| 2 | 92043-1279 | PIN,11.5X14X14 | 2 |
| 1 | 92045-1165 | BEARING-BALL,6305C2 | 1 |
| 1 | 92049-1017 | SEAL-OIL,SD-8187 | 1 |
| 1 | 92049-1038 | SEAL-OIL,TC35527 | 1 |
| 1 | 92051-005 | SEAL-OIL,TB13225.5 | 1 |
| 1 | 92055-1044 | RING-O,ID=18.64 | 1 |
| 1 | 92062-1078 | NOZZLE,6X8,GREEN | 1 |
| 1 | 92062-1083 | NOZZLE | 1 |
| 1 | 92116-1062 | BEARING-ROLLER,HI-CAP30205 | 1 |
| 1 | 92116-1063 | BEARING-ROLLER,HI-CAP30305 | 1 |
| 92144-1933 | SPRING,CAM DAMPER |
