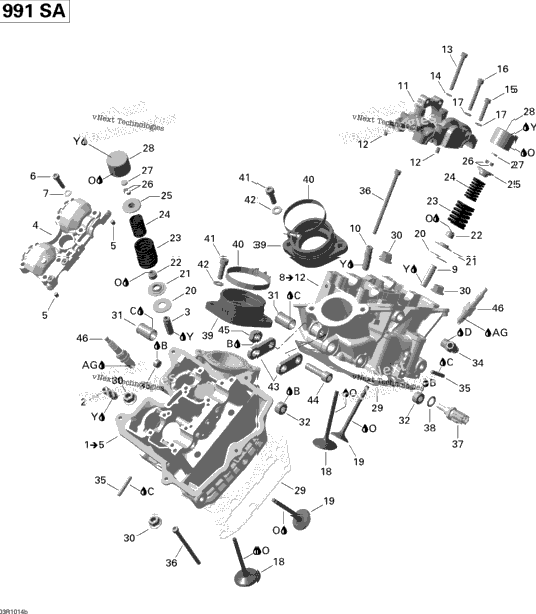

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 420613466 | Front Cylinder Head Ass'y Inludes 1 to 5 | 1 |
| 420253926 | VALVE GUIDE, EXHAUST | ||
| 2 | 420253921 | VALVE GUIDE, INTAKE | 2 |
| XXXX | Not Available As Spare Part - Camshaft Bearing Cap | ||
| 2 | 420232210 | Center Pin | 2 |
| 8 | 205063044 | Socket Head Screw M6 X 30 | 8 |
| 8 | 420927945 | FLAT WASHER | 8 |
| 1 | 420613464 | Rear Cylinder Head Ass'y Inludes 8 to 12 | 1 |
| 2 | 420240331 | Socket Head Screw M6 X 55 | 2 |
| 420927863 | SHIM | ||
| 4 | 205063044 | Socket Head Screw M6 X 30 | 4 |
| 205064544 | SOCKET HEAD SCREW M6 X 45 | ||
| 6 | 420927945 | FLAT WASHER | 6 |
| 4 | 420254027 | Exhaust Valve 31 mm | 4 |
| 4 | 420254295 | Intake Valve, 38 mm | 4 |
| 8 | 420227980 | THRUST WASHER | 8 |
| 8 | 420253965 | Valve Spring Shim | 8 |
| 8 | 420230510 | Seal | 8 |
| 8 | 420238211 | VALVE SPRING, OUTER | 8 |
| 8 | 420238201 | Valve Spring, Inner | 8 |
| 8 | 420253957 | Valve Spring Retainer | 8 |
| 16 | 420253645 | Valve Cotter | 16 |
| 1 | 420253974 | SHIM 2.3 | 1 |
| 1 | 420254030 | SHIM 2.325 | 1 |
| 1 | 420253975 | Shim 2.35 | 1 |
| 1 | 420254031 | SHIM 2.375 | 1 |
| 1 | 420253976 | SHIM 2.4 | 1 |
| 1 | 420254032 | SHIM 2.425 | 1 |
| 1 | 420253977 | SHIM 2.45 | 1 |
| 1 | 420254033 | SHIM 2.475 | 1 |
| 1 | 420253978 | SHIM 2.5 | 1 |
| 1 | 420254034 | SHIM 2.525 | 1 |
| 1 | 420253979 | SHIM 2.55 | 1 |
| 1 | 420254035 | SHIM 2.575 | 1 |
| 1 | 420253980 | SHIM 2.6 | 1 |
| 1 | 420254036 | Shim 2.625 | 1 |
| 1 | 420253981 | SHIM 2.65 | 1 |
| 1 | 420254037 | Shim 2.675 | 1 |
| 1 | 420253982 | SHIM 2.7 | 1 |
| 1 | 420254038 | SHIM 2.725 | 1 |
| 1 | 420253983 | SHIM 2.75 | 1 |
| 1 | 420254039 | SHIM 2.775 | 1 |
| 1 | 420253984 | SHIM 2.8 | 1 |
| 1 | 420254040 | SHIM 2.825 | 1 |
| 1 | 420253985 | SHIM 2.85 | 1 |
| 1 | 420254041 | SHIM 2.875 | 1 |
| 1 | 420253986 | SHIM 2.9 | 1 |
| 1 | 420254042 | SHIM 2.925 | 1 |
| 1 | 420253987 | SHIM 2.95 | 1 |
| 1 | 420254043 | SHIM 2.975 | 1 |
| 1 | 420253988 | SHIM 3.0 | 1 |
| 1 | 420254044 | SHIM 3.025 | 1 |
| 1 | 420253989 | SHIM 3.05 | 1 |
| 8 | 420253990 | Tappet Valve | 8 |
| 2 | 420650210 | Cylinder Head Gasket | 2 |
| 8 | 233101414 | Hex. Flange Nut M10 | 8 |
| 2 | 420224090 | Elbow Fitting | 2 |
| 2 | 420240170 | Plug Screw M18 X 1.5 | 2 |
| 1 | 420840657 | Plug Screw M12 X 1.5 | 1 |
| 1 | 420922242 | Angular Tube | 1 |
| 8 | 420440131 | Stud, M6 X 19/16 | 8 |
| 4 | 420241601 | Socket Head Screw M6 X 100 | 4 |
| 1 | 420274040 | Temperature Sensor | 1 |
| 1 | 420250640 | Copper Washer | 1 |
| 2 | 420267150 | Intake Flange | 2 |
| 2 | 420251830 | Hose Clamp | 2 |
| 4 | 205082544 | Socket Head Screw M8 X 25 | 4 |
| 4 | 420250311 | Flat Washer 8.4 mm | 4 |
| 2 | 420251100 | SUPPORT BRACKET | 2 |
| 2 | 420640581 | SOCKET HEAD SCREW M10 X 40 | 2 |
| 2 | 232006414 | Hex. Nut M10 X 1.5 | 2 |
| 2 | 278002297 | Spark Plug NGK DCPR9E | 2 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 1 | 413711400 | Loctite 648, 10 ml | 1 |
| 219704462 | ADHESIVE LOCTITE 515 50ML | ||
| XXXX | Not Available As Spare Part - Engine Oil | ||
| 1 | 219704464 | Was 420297616 Klueber Grease, 60g | 1 |
| 1 | 420897186 | Heat-Sink Paste P12, 90 ml | 1 |
