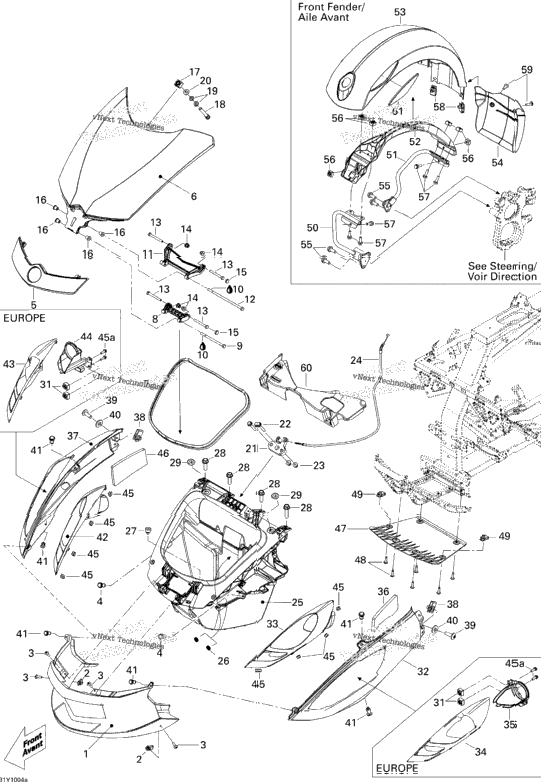

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 705001391 | Bumper Cover | 1 |
| 2 | 250100113 | Panel Nut, M6 X 1.0 | 2 |
| 4 | 250000350 | Torx Truss Screw M6 X 20 | 4 |
| 2 | 293150089 | Tuflok Plastic Rivet | 2 |
| 705002549 | FRONT FASCIA, FULL MOON Full Moon | ||
| 705002550 | FRONT FASCIA, YELLOW Yellow | ||
| 705003188 | FRONT FASCIA, RED Red | ||
| 705003874 | FRONT FASCIA, QUANTUM BLUE Quantum Blue | ||
| 1 | 705003875 | Pearl White Front Fascia Pearl White | 1 |
| 1 | 705004571 | Front Fascia, Metallic Magnesium RS, Magnesium Model | 1 |
| 1 | 705002552 | Hood, Full Moon Full Moon | 1 |
| 1 | 705002553 | Hood, Yellow Yellow | 1 |
| 1 | 705003186 | Hood, Red Red | 1 |
| 1 | 705003878 | Hood, Quantum Blue Quantum Blue | 1 |
| 1 | 705003879 | Hood, Pearl White Pearl White | 1 |
| 705004574 | HOOD, METALLIC MAGNESIUM RS, Magnesium Model | ||
| 1 | 219704371 | Neoprene Seal 3000 mm Long | 1 |
| 1 | 269501482 | FRONT ARM | 1 |
| 230060060 | Hex. Screw M6 X 100 | ||
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 1 | 269501481 | REAR ARM | 1 |
| 1 | 230065060 | Hex. Screw M6 X 150 | 1 |
| 4 | 207065544 | Hex. Screw M6 X 55 | 4 |
| 4 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 4 |
| 2 | 414436900 | BLACK SNAP CAP | 2 |
| 4 | 269500706 | Sleeve | 4 |
| 1 | 269501387 | Nut Housing Ass'y | 1 |
| 1 | 705002223 | Lug | 1 |
| 2 | 232180600 | Hex. Jam Nut M8 | 2 |
| 1 | 234081410 | Flat Washer 8 mm | 1 |
| 1 | 705002224 | Latch | 1 |
| 2 | 207664044 | Hex. Flange Screw M6 X 40 | 2 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 2 |
| 1 | 517303484 | Hood Cable | 1 |
| 1 | 705002287 | Front Storage Compartment | 1 |
| 2 | 293740028 | Dual Lock Velcro Washer 3/4" | 2 |
| 1 | 293830005 | Rubber Bumper | 1 |
| 4 | 210262080 | Hex. Forming Screw M6 X 20 | 4 |
| 2 | 705005156 | Oval Washer | 2 |
| 4 | 269501387 | Nut Housing Ass'y Europe | 4 |
| 705002561 | LH Front Panel, Black | ||
| 705003882 | LH FRONT PANEL, PEARL WHITE Pearl White | ||
| 1 | 705004596 | LH Front Panel, Metallic Magnesium RS, Magnesium Model | 1 |
| 1 | 705001541 | LH Air Duct | 1 |
| 1 | 705001469 | LH HEADLAMP BEZEL Europe | 1 |
| 1 | 705002510 | LH Headlamp Support, Black Europe | 1 |
| 1 | 518325515 | LH FRONT PANEL FOAM | 1 |
| 705002562 | RH FRONT PANEL, BLACK | ||
| 1 | 705003883 | RH Front Panel, Pearl White Pearl White | 1 |
| 1 | 705004597 | RH Front Panel, Metallic Magnesium RS, Magnesium Model | 1 |
| 4 | 250100113 | Panel Nut, M6 X 1.0 | 4 |
| 2 | 250000350 | Torx Truss Screw M6 X 20 | 2 |
| 2 | 705003207 | Plastic Washer | 2 |
| 6 | 293150089 | Tuflok Plastic Rivet | 6 |
| 1 | 705001543 | RH Air Duct | 1 |
| 1 | 705001470 | RH Headlamp Bezel Europe | 1 |
| 1 | 705002511 | RH Headlamp Support, Black Europe | 1 |
| 12 | 414479100 | Clip | 12 |
| 4 | 207682544 | Hex. Flange Screw M8 X 25 Europe | 4 |
| 1 | 518325516 | RH FRONT PANEL FOAM | 1 |
| 1 | 705002388 | Skid Plate | 1 |
| 6 | 250000081 | Torx Screw M6 X 25 | 6 |
| 705002397 | LH FENDER FRONT SUPPORT | ||
| 705002400 | RH FENDER FRONT SUPPORT | ||
| 705003347 | LH FENDER REAR SUPPORT SE5 Electronic | ||
| 705003348 | RH FENDER REAR SUPPORT SE5 Electronic | ||
| 2 | 705002389 | Central Front Fender Support | 2 |
| 1 | 705003415 | FENDER FL B-278 Yellow | 1 |
| 705003417 | LH Front Fender, Full Moon Full Moon | ||
| 705003419 | LH FRONT FENDER, RED Red | ||
| 705003901 | LH FRONT FENDER, QUANTUM BLUE Quantum Blue | ||
| 1 | 705003904 | Pearl White LH Front Fender Pearl White | 1 |
| 1 | 705004613 | LH Front Fender, Metallic Magnesium RS, Magnesium Model | 1 |
| 705003416 | RH FRONT FENDER, YELLOW Yellow | ||
| 705003418 | Full Moon, RH Front Fender - Call Your Local BRP Dealership Full Moon | ||
| 705003420 | RH FRONT FENDER, RED Red | ||
| 705003902 | FENDER FR B-308 Quantum Blue | ||
| 1 | 705003903 | Pearl White RH Front Fender Pearl White | 1 |
| 1 | 705004614 | RH Front Fender, Metallic Magnesium RS, Magnesium Model | 1 |
| 1 | 705001767 | LH Mudguard | 1 |
| 1 | 705001768 | RH Mudguard | 1 |
| 8 | 207582034 | Hex. Flange Screw, Scotch Grip GS Model | 8 |
| 8 | 207582034 | Hex. Flange Screw, Scotch Grip LE Model | 8 |
| 12 | 269500725 | M6 Nut Housing Ass'y | 12 |
| 12 | 207662084 | Hex. Flange Screw M6 X 20 | 12 |
| 705003025 | SERVICE CENTER | ||
| 2 | 705002423 | Amber, Lateral Reflector | 2 |
