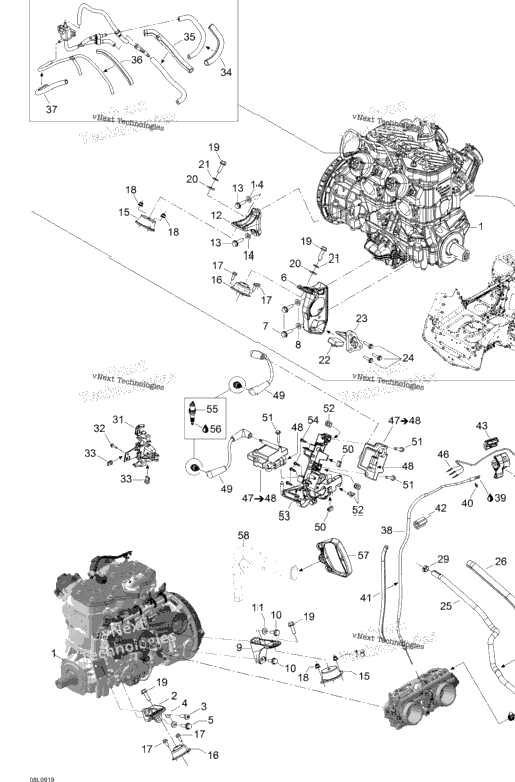

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| XXXX | Not Available As Spare Part - Engine | ||
| 1 | 512060478 | Rear Support, PTO | 1 |
| 1 | 250000248 | Torx Screw M8 X 25, Scotch Grip | 1 |
| 2 | 234281474 | Conical Spring Washer M8 | 2 |
| 1 | 207582586 | Hex. Flange Screw M8 X 25, Scotch Grip | 1 |
| 512060406 | Front PTO Support | ||
| 2 | 207582586 | Hex. Flange Screw M8 X 25, Scotch Grip | 2 |
| 1 | 512060470 | REAR MAG SUPPORT | 1 |
| 2 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip | 2 |
| 1 | 234281474 | Conical Spring Washer M8 | 1 |
| 1 | 512060469 | Front Support, MAG | 1 |
| 2 | 512060457 | Rubber Mount | 2 |
| 2 | 512060387 | Rubber Mount | 2 |
| 4 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip | 4 |
| 4 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 4 |
| 4 | 207583086 | Hex. Flange Screw M8 X 30, Scotch Grip | 4 |
| 2 | 503183200 | Yellow, Washer | 2 |
| 1 | 512060488 | STOPPER | 1 |
| 1 | 512060489 | Stopper Support | 1 |
| 3 | 207562544 | Hex. Flange Screw M6 X 25 | 3 |
| 1 | 509000601 | FORMED HOSE | 1 |
| 1 | 219704408 | Tubing 16 Mm 1000Mm Long | 1 |
| 1 | 293650170 | Tridon Gear Clamp | 1 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 1 | 293650053 | Crimp Clamp | 1 |
| 1 | 512060298 | Solenoid Support | 1 |
| 2 | 207652044 | Hex.Flange Screw M5 X 20 | 2 |
| 2 | 250000079 | Panel Nut M5 X 0.8 | 2 |
| 1 | 219704400 | Was 409901800 Tubing (13 mm) | 1 |
| 1 | 219704399 | Was 409901700 Tubing (9 mm) | 1 |
| 1 | 512060086 | THROTTLE CABLE | 1 |
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 1 | 414274500 | Circlip | 1 |
| 1 | 219704425 | Tubing 6 Mm 3000Mm Long | 1 |
| 1 | 219704407 | Tubing 10 MM 1000MM Long | 1 |
| 512060198 | Upper Housing Ass'y | ||
| 1 | 512060430 | Lower Housing | 1 |
| 1 | 512060468 | Throttle Handle Ass'y | 1 |
| XXXX | Not Available As Spare Part - Male Terminal | ||
| XXXX | Not Available As Spare Part - Ignition Coil Ass'y | ||
| 2 | 710000568 | Housing | 2 |
| 420664302 | SPARK PLUG CABLE, 190 MM | ||
| 2 | 710000992 | Clip | 2 |
| 1 | 250000213 | Hex. Flange Screw M6 X 1.0 X 45 | 1 |
| 1 | 293100003 | Nut Welded, M6 | 1 |
| 1 | 512060279 | COIL SUPPORT | 1 |
| 4 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 | 4 |
| 2 | 512060029 | Spark Plug NGK BR8ECS | 2 |
| 1 | 512060136 | Starter Grip | 1 |
| 1 | 512060451 | Tubing | 1 |
