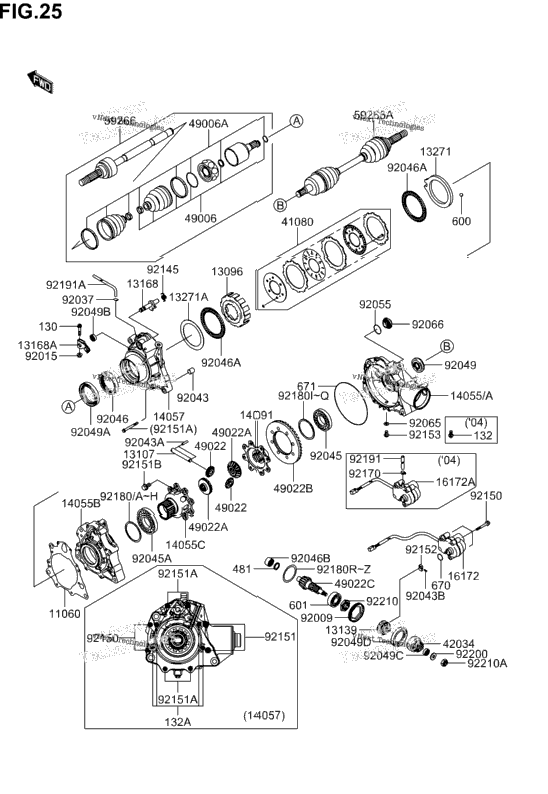

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| K1106-01982 | GASKET,DIFF CASE | ||
| K1309-61163 | HOUSING-CLUTCH,DISC | ||
| K1310-71447 | SHAFT,BEVEL | ||
| K1313-91097 | SHIFTER,DIFFERENTIAL | ||
| K1316-81724 | LEVER,DIFF | ||
| K1316-81725 | LEVER,DIFFERENTIAL | ||
| K1327-11497 | PLATE,CAM | ||
| K1327-11503 | PLATE,DISC | ||
| K1405-50014 | CASE-GEAR K5 | ||
| K1405-51149 | CASE-GEAR,DIFFERENTIAL,RH K4 | ||
| K1405-51155 | CASE-GEAR,CENTER | ||
| K1405-51156 | CASE-GEAR,BEVEL,LH | ||
| K1405-71004 | CASE-COMP-GEAR,DIFF,LH | ||
| K1409-11197 | COVER,BEVEL,RH | ||
| K1617-20004 | ACTUATOR K5 | ||
| K1617-21057 | ACTUATOR,DIFFERENTIAL K4 | ||
| K4108-01512 | DISC ASSY,DIFFERENTIAL LOCK | ||
| K4203-41192 | COUPLING,BEVEL | ||
| K4900-60005 | BOOT,DOJ OPTION | ||
| K4900-60006 | BOOT,BJ OPTION | ||
| K4902-21177 | GEAR-BEVEL,10T | ||
| K4902-21178 | GEAR-BEVEL,16T | ||
| K4902-21190 | GEAR-BEVEL,35T | ||
| K4902-21201 | GEAR-BEVEL,8T | ||
| K5926-61135 | JOINT-BALL,LH | ||
| K5926-61136 | JOINT-BALL,RH | ||
| K9200-91914 | SCREW,64MM | ||
| 1 | K9201-51339 | NUT,LOCK,FLANGED,6MM | 1 |
| K9203-71104 | CLAMP,HOSE | ||
| 2 | K9204-31263 | PIN,6.2X8X14 | 2 |
| K9204-31575 | PIN | ||
| K9204-31649 | PIN,2X9.8 | ||
| K9204-51393 | BEARING-BALL,60/32 | ||
| K9204-51394 | BEARING-BALL,6910 | ||
| K9204-61282 | BEARING-NEEDLE,TA627412ZE02 | ||
| K9204-61286 | BEARING-NEEDLE,AK1116 | ||
| K9204-61297 | BEARING-NEEDLE,AJ501515W | ||
| K9204-91534 | SEAL-OIL,SDD7 22X48X7HS | ||
| K9204-91536 | SEAL-OIL,HTCY 62X81X10.5 | ||
| K9204-91550 | SEAL-OIL,TC 12X22X7 | ||
| K9204-91572 | SEAL-OIL,KB 13X19X13 | ||
| K9204-91573 | SEAL-OIL,TCY 48X65X8 | ||
| K9205-51136 | RING-O,25.7X2.4 | ||
| KK920-65023 | GASKET | ||
| K9206-61303 | PLUG | ||
| K9214-51344 | SPRING,DIFF RETURN | ||
| K9215-01884 | BOLT,6X45 | ||
| K9215-11794 | BOLT,8X50 | ||
| K9215-11795 | BOLT,6X60 | ||
| K9215-11910 | BOLT,10X19.5 | ||
| K9215-21349 | COLLAR | ||
| K9215-30870 | BOLT,8X15 K5 | ||
| K9217-02042 | CLAMP K4 | ||
| K9218-01390 | SHIM,62X71X0.15 | ||
| K9218-01391 | SHIM,62X71X0.20 | ||
| K9218-01392 | SHIM,62X71X0.50 | ||
| K9218-01393 | SHIM,62X71X0.70 | ||
| K9218-01394 | SHIM,62X71X0.80 | ||
| K9218-01395 | SHIM,62X71X0.90 | ||
| K9218-01396 | SHIM,62X71X1.00 | ||
| K9218-01397 | SHIM,62X71X1.10 | ||
| K9218-01398 | SHIM,62X71X1.20 | ||
| K9218-01399 | SHIM,32X42X0.15 | ||
| K9218-01400 | SHIM,32X42X0.20 | ||
| K9218-01401 | SHIM,32X42X0.50 | ||
| K9218-01402 | SHIM,32X42X0.70 | ||
| K9218-01403 | SHIM,32X42X0.80 | ||
| K9218-01404 | SHIM,32X42X0.90 | ||
| K9218-01405 | SHIM,32X42X1.00 | ||
| K9218-01406 | SHIM,32X42X1.10 | ||
| K9218-01407 | SHIM,32X42X1.20 | ||
| K9218-01408 | SHIM,50X61X0.15 | ||
| K9218-01409 | SHIM,50X61X0.20 | ||
| K9218-01410 | SHIM,50X61X0.50 | ||
| K9218-01411 | SHIM,50X61X0.70 | ||
| K9218-01412 | SHIM,50X61X0.80 | ||
| K9218-01413 | SHIM,50X61X0.90 | ||
| K9218-01414 | SHIM,50X61X1.00 | ||
| K9218-01415 | SHIM,50X61X1.10 | ||
| K9218-01416 | SHIM,50X61X1.20 | ||
| K9219-11594 | TUBE,4.7X9.5X800 K4 | ||
| K9219-11638 | TUBE,BREATHER | ||
| K9220-01635 | WASHER,10X24X2.5 | ||
| K9221-01225 | NUT,25MM | ||
| 1 | K9221-01351 | NUT,LOCK,10MM | 1 |
| KK130-G0635 | BOLT-FLANGED,6X35 | ||
| KK132-J0816 | BOLT-FLANGED-SMALL,8X16 K4 | ||
| 4 | KK132-Y0630 | BOLT-FLANGED-SMALL | 4 |
| KK481-J2500 | CIRCLIP-TYPE-C,25MM | ||
| KK600-A1100 | BALL-STEEL,11/32" | ||
| KK601-A6305 | BEARING-BALL,#6305 | ||
| KK670-D3022 | O RING | ||
| K671D-25145 | O RING |
