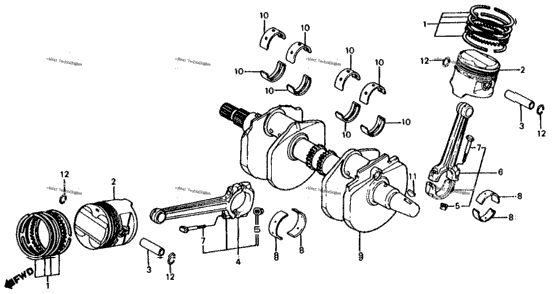

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 13011-MB0-003 | RING SET, PISTON (STD) (NIPPON) | ||
| 13011-MB0-004 | RING SET, PISTON (STD) (TEIKOKU) | ||
| 13011-MB0-014 | RING SET, PISTON (STD) (NIPPON) | ||
| 13021-MB0-003 | RING SET, PISTON (OS 0.25) (NIPPON) (Optional). | ||
| 13021-MB0-004 | RING SET, PISTON (OS 0.25) (TEIKOKU) (Optional). | ||
| 13021-MB0-014 | RING SET, PISTON (OS 0.25) (TEIKOKU) (Optional). | ||
| 13031-MB0-003 | RING SET, PISTON (OS 0.50) (NIPPON) (Optional). | ||
| 13031-MB0-004 | RING SET, PISTON (OS 0.50) (TEIKOKU) (Optional). | ||
| 13031-MB0-014 | RING SET, PISTON (OS 0.50) (TEIKOKU) (Optional). | ||
| 13041-MB0-003 | RING SET, PISTON (0.75) (NIPPON) (Optional). | ||
| 13041-MB0-004 | RING SET, PISTON (0.75) (TEIKOKU) (Optional). | ||
| 13041-MB0-014 | RING SET, PISTON (0.75) (TEIKOKU) (Optional). | ||
| 13051-MB0-003 | RING SET, PISTON (1.00) (NIPPON) (Optional). | ||
| 13051-MB0-004 | RING SET, PISTON (1.00) (TEIKOKU) (Optional). | ||
| 13051-MB0-014 | RING SET, PISTON (1.00) (TEIKOKU) (Optional). | ||
| 13011-MN0-305 | RING SET, PISTON (STD) (NIPPON) | ||
| 13021-MN0-305 | RING SET, PISTON (OS 0.25) (NIPPON) (Optional). | ||
| 13031-MN0-305 | RING SET, PISTON (OS 0.50) (NIPPON) (Optional). | ||
| 13041-MN0-305 | RING SET, PISTON (0.75) (NIPPON) (Optional). | ||
| 13051-MN0-305 | RING SET, PISTON (1.00) (NIPPON) (Optional). | ||
| 13101-MB0-000 | PISTON (STD) | ||
| 13102-MB0-000 | PISTON (OS 0.25) (Optional). | ||
| 13103-MB0-000 | PISTON (OS 0.50) (Optional). | ||
| 13104-MB0-000 | PISTON (0.75) (Optional). | ||
| 13104-MB0-010 | PISTON (0.75) (Optional). | ||
| 13104-MN2-680 | PISTON (0.75) (Optional). | ||
| 13105-MB0-000 | PISTON (1.00) (Optional). | ||
| 13101-MB0-010 | PISTON (STD) | ||
| 13101-MN2-680 | PISTON (STD) | ||
| 13102-MB0-010 | PISTON (OS 0.25) (Optional). | ||
| 13102-MN2-680 | PISTON (OS 0.25) (Optional). | ||
| 13103-MB0-010 | PISTON (OS 0.50) (Optional). | ||
| 4 | 13111-MB0-000 | PIN, PISTON | 4 |
| 4 | 13111-MT3-000 | PIN, PISTON | 4 |
| 13201-MB0-000 | ROD ASSY. A, FR. CONNECTING | ||
| 13202-MB0-000 | ROD ASSY. B, FR. CONNECTING | ||
| 13203-MB0-000 | ROD ASSY. C, FR. CONNECTING | ||
| 13204-MB0-000 | ROD ASSY. D, FR. CONNECTING | ||
| 13205-MB0-000 | ROD ASSY. E, FR. CONNECTING | ||
| 8 | 13205-634-010 | NUT, CONNECTING ROD | 8 |
| 13206-MB0-000 | ROD ASSY. A, RR. CONNECTING | ||
| 13207-MB0-000 | ROD ASSY. B, RR. CONNECTING | ||
| 13208-MB0-000 | ROD ASSY. C, RR. CONNECTING | ||
| 13209-MB0-000 | ROD ASSY. D, RR. CONNECTING | ||
| 13210-MB0-000 | ROD ASSY. E, RR. CONNECTING | ||
| 13207-MB0-010 | ROD ASSY. B, CONNECTING | ||
| 13208-MB0-405 | ROD ASSY. E, CONNECTING | ||
| 13209-MB0-010 | ROD ASSY. D, CONNECTING | ||
| 13210-MB0-010 | ROD ASSY. E, CONNECTING | ||
| 13204-689-004 | BOLT, CONNECTING ROD (TOKAI TRW) | ||
| 13213-422-004 | BOLT, CONNECTING ROD (NAGOYA NEJI) | ||
| 13224-MB0-003 | BEARING A, CONNECTING ROD (BLUE) | ||
| 13224-MB0-305 | BEARING A, CONNECTING ROD (BLUE) | ||
| 13224-MB0-891 | BEARING A, CONNECTING ROD (BLUE) | ||
| 13224-MB0-892 | BEARING A, CONNECTING ROD (BLUE) | ||
| 13225-MB0-003 | BEARING B, CONNECTING ROD (BLACK) | ||
| 13225-MB0-891 | BEARING B, CONNECTING ROD (BLACK) | ||
| 13225-MB0-892 | BEARING B, CONNECTING ROD (BLACK) | ||
| 13226-MB0-003 | BEARING C, CONNECTING ROD (BROWN) | ||
| 13226-MB0-891 | BEARING C, CONNECTING ROD (BROWN) | ||
| 13226-MB0-892 | BEARING C, CONNECTING ROD (BROWN) | ||
| 13227-MB0-003 | BEARING D, CONNECTING ROD (GREEN) | ||
| 13227-MB0-891 | BEARING D, CONNECTING ROD (GREEN) | ||
| 13227-MB0-892 | BEARING D, CONNECTING ROD (GREEN) | ||
| 13228-MB0-003 | BEARING E, CONNECTING ROD (YELLOW) | ||
| 13228-MB0-891 | BEARING E, CONNECTING ROD (YELLOW) | ||
| 13228-MB0-892 | BEARING E, CONNECTING ROD (YELLOW) | ||
| 13300-MB0-000 | CRANKSHAFT | ||
| 13300-MB0-010 | CRANKSHAFT | ||
| 13300-MB2-000 | CRANKSHAFT | ||
| 13300-MB0-020 | CRANKSHAFT | ||
| 13300-MB0-030 | CRANKSHAFT | ||
| 13300-MB0-040 | CRANKSHAFT | ||
| 13314-MB0-003 | BEARING A, CRANKSHAFT (BLUE) | ||
| 13314-MB0-013 | BEARING A, CRANKSHAFT (BLUE) | ||
| 8 | 13315-MB0-003 | BEARING B, CRANKSHAFT (BLACK) | 8 |
| 13315-MB0-013 | BEARING B, CRANKSHAFT (BLACK) | ||
| 13316-MB0-003 | BEARING C, CRANKSHAFT (BROWN) | ||
| 13316-MB0-013 | BEARING C, CRANKSHAFT (BROWN) | ||
| 8 | 13317-MB0-003 | BEARING D, CRANKSHAFT (GREEN) | 8 |
| 8 | 13317-MB0-013 | BEARING D, CRANKSHAFT (GREEN) | 8 |
| 13318-MB0-003 | BEARING E, CRANKSHAFT (YELLOW) | ||
| 13318-MB0-013 | BEARING E, CRANKSHAFT (YELLOW) | ||
| 1 | 90741-413-000 | KEY, WOODRUFF | 1 |
| 8 | 94601-18000 | CLIP, PISTON PIN (18MM) | 8 |
