Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|

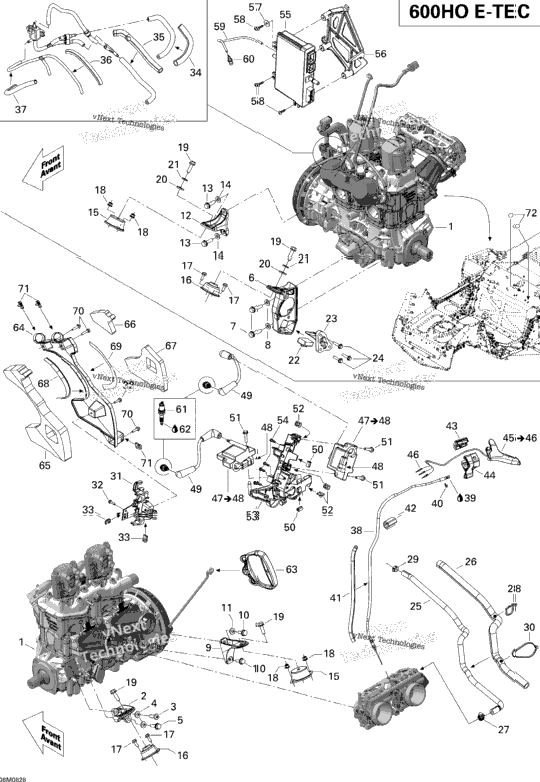

| 400604029 | Engine 593 HOE | ||
| 1 | 512060173 | REAR SUPPORT, PTO | 1 |
| 1 | 250000248 | Torx Screw M8 X 25, Scotch Grip | 1 |
| 2 | 234281474 | Conical Spring Washer M8 | 2 |
| 1 | 207582586 | Hex. Flange Screw M8 X 25, Scotch Grip | 1 |
| 512060203 | Front PTO Support | ||
| 2 | 207582586 | Hex. Flange Screw M8 X 25, Scotch Grip | 2 |
| 1 | 512060114 | Rear MAG Support | 1 |
| 2 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip | 2 |
| 1 | 234281474 | Conical Spring Washer M8 | 1 |
| 512060108 | FRONT SUPPORT, MAG | ||
| 2 | 512060246 | Rubber Mount | 2 |
| 2 | 512060387 | Rubber Mount | 2 |
| 4 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip | 4 |
| 4 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 4 |
| 4 | 207582586 | Hex. Flange Screw M8 X 25, Scotch Grip | 4 |
| 2 | 503183200 | Yellow, Washer | 2 |
| 512060179 | STOPPER | ||
| 1 | 512060180 | Stopper Support | 1 |
| 3 | 207562544 | Hex. Flange Screw M6 X 25 | 3 |
| 1 | 512060349 | Formed Hose, Output | 1 |
| 1 | 219704408 | Tubing 16 Mm 1000Mm Long | 1 |
| 1 | 293650170 | Tridon Gear Clamp | 1 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 1 | 293650025 | Oetiker Gear Clamp | 1 |
| 1 | 512060298 | Solenoid Support | 1 |
| 2 | 207652044 | Hex.Flange Screw M5 X 20 | 2 |
| 2 | 250000079 | Panel Nut M5 X 0.8 | 2 |
| 1 | 219704400 | Was 409901800 Tubing (13 mm) | 1 |
| 1 | 219704399 | Was 409901700 Tubing (9 mm) | 1 |
| 1 | 512060230 | Throttle Cable | 1 |
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 1 | 414274500 | Circlip | 1 |
| 1 | 219704425 | Tubing 6 Mm 3000Mm Long | 1 |
| 1 | 512060313 | Protector | 1 |
| 512060198 | Upper Housing Ass'y | ||
| 1 | 512060197 | LOWER HOUSING | 1 |
| 512060219 | Throttle Handle Ass'y Includes 45 to 46 | ||
| 3 | 515175232 | Male Terminal | 3 |
| 2 | 512060093 | Ignition Coil Includes 47 to 48 | 2 |
| 2 | 710000568 | Housing | 2 |
| 2 | 512060094 | Ignition Cable, 177 mm | 2 |
| 2 | 409014200 | CLIP | 2 |
| 3 | 250000253 | Hex. Flange Screw M6 X 1.0 X 30 | 3 |
| 3 | 293100003 | Nut Welded, M6 | 3 |
| 1 | 512060287 | Support Coils | 1 |
| 4 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 | 4 |
| 512060089 | Calibrated Module | ||
| 1 | 512060297 | Calibrated Module Support | 1 |
| 1 | 250200040 | Flat Washer | 1 |
| 3 | 250000297 | Truss Head Torx Screw K50 X 20 | 3 |
| 1 | 219704409 | Was 415080100 Fuel Line Primer 3,2mm | 1 |
| 1 | 414814100 | Male Connector | 1 |
| 2 | 415129375 | Spark Plug NGK PZFR6F | 2 |
| 1 | 512060136 | Starter Grip | 1 |
| 1 | 512060339 | NOISE SHIELD | 1 |
| 1 | 512060343 | Interior Noise Foam | 1 |
| 1 | 512060344 | Upper Exterior Noise Foam | 1 |
| 512060362 | LOWER EXTERIOR NOISE FOAM | ||
| 1 | 512060358 | Reflective Sheet | 1 |
| 1 | 512060371 | Reflective Sheet | 1 |
| 3 | 207652044 | Hex.Flange Screw M5 X 20 | 3 |
| 3 | 250000079 | Panel Nut M5 X 0.8 | 3 |
| 2 | 518325560 | Adhesive Patch | 2 |
