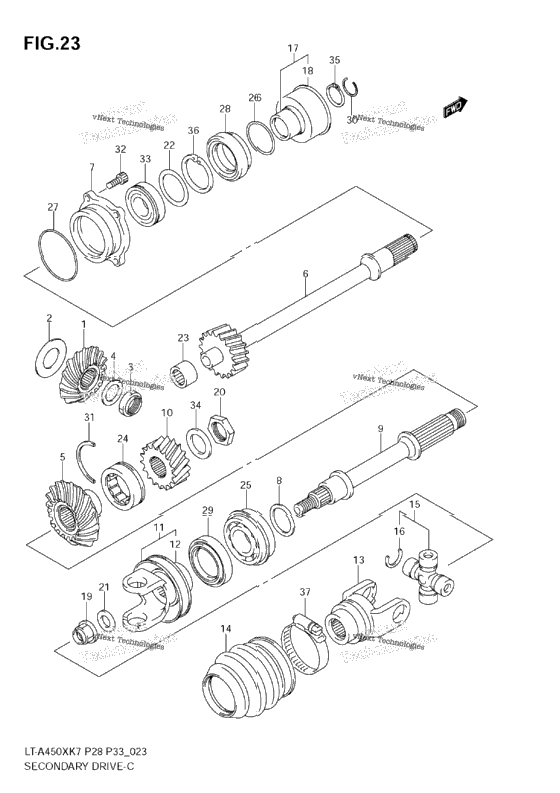

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 09263-30050 | BEARING, SEC DRIVEN GEAR 30X50X17 | 1 |
| 1 | 09267-25014 | BEARING, REAR OUTPUT 25X52X20.6 | 1 |
| 1 | 09280-25005 | O-RING, FR DRIVE OUTPUT D:1.9,ID:24.5 | 1 |
| 1 | 09280-57002 | O-RING, FRONT BRG HOUSING D:3.5,ID:65.2 | 1 |
| 1 | 09283-34008 | SEAL, FRONT OUTPUT SHAFT 34X52X9 | 1 |
| 1 | 09283-34008 | SEAL, REAR OUTPUT SHAFT 34X52X9 | 1 |
| 1 | 09381-21002 | C-RING, SEC DRIVEN OUTPUT | 1 |
| 1 | 09390-50002 | RING, SEC DRIVEN GEAR | 1 |
| 4 | 07130-0620B | BOLT, FRONT BRG HOUSING | 4 |
| 1 | 09262-25003 | BEARING, FRONT OUTPUT, FR 25X52X15 | 1 |
| 1 | 08211-22365 | WASHER, OUTPUT SHAFT GE | 1 |
| 08331-3125A | CIRCLIP, FR DRIVE OUTPUT | ||
| 1 | 08331-4152A | CIRCLIP, FR OUTPUT SHAFT | 1 |
| 1 | 09402-00512 | CLAMP | 1 |
| 24911-11H00 | GEAR, SEC DRIVE BEVEL | ||
| 1 | 24935-03811 | SHIM SET,SEC DRIVE BEVEL T:0.25/0.30/0.35/0.55 0.58/0.60/0.63/0.65 0.68/0.70/0.73/0.75 0.78/0.80/0.83/0.85 0.88/0.90/0.93/0.95 0.98/1.00/1.03/1.05 1.08/1.10/1.13/1.15 1.18/1.20/1.23/1.25 1.28/1.30 | 1 |
| 1 | 09140-20012 | NUT, SEC DRIVE BEVEL | 1 |
| 1 | 09181-20223 | WASHER, SEC DRIVE BEVEL 20X32X1.0 | 1 |
| 24921-11H00 | GEAR, SEC DRIVEN BEVEL | ||
| 24961-11H10 | SHAFT, SEC OUTPUT, FR MODEL K7/K8/K9 | ||
| 1 | 24961-31H00 | SHAFT, SED OUTPUT, FR MODEL L0 | 1 |
| 1 | 24965-31G00 | HOUSING, FR OUTPUT SHAFT | 1 |
| 1 | 24945-03811 | SHIM SET,SEC DRIVEN BEVEL T:0.55/0.58/0.60/0.63 0.65/0.68/0.70/0.73 0.75/0.78/0.80/0.83 0.85/0.88/0.90/0.93 0.95/0.98/1.00/1.03 1.05/1.08/1.10/1.13 1.15/1.18/1.20/1.23 1.25/1.28/1.30/1.33 1.35/1.38/1.40 | 1 |
| 24971-11H00 | SHAFT, SEC OUTPUT, RR | ||
| 1 | 24972-31G20 | GEAR, SEC DRIVEN OUTPUT | 1 |
| 27130-31G10 | YOKE, RR DRIVE OUT | ||
| 27592-31G30 | FLANGE, OUTPUT YOKE | ||
| 27141-31G00 | YOKE, PROP SHAFT | ||
| 1 | 27153-31G00 | BOOT, REAR OUTPUT JOINT | 1 |
| 1 | 27200-73813 | JOINT SET, UNIVERSAL | 1 |
| 4 | 09380-25005 | CIRCLIP, UNIVERSAL JOINT | 4 |
| 1 | 27590-31G00 | COLLAR, FRONT DRIVE | 1 |
| 1 | 27592-31G00 | PLATE, OUTPUT OIL SEAL | 1 |
| 1 | 09159-16003 | NUT, RR DRIVE OUTPUT YOKE | 1 |
| 1 | 09159-22005 | NUT, SEC DRIVEN OUTPUT | 1 |
| 1 | 09160-16026 | WASHER, RR DRIVE OUTPUT 16X30X3.0 | 1 |
| 1 | 09181-40195 | WASHER, FR DRIVE OUTPUT 40X52X1.0 | 1 |
| 1 | 09263-25068 | BEARING, FRONT OUTPUT, RR 25X37X17 | 1 |
