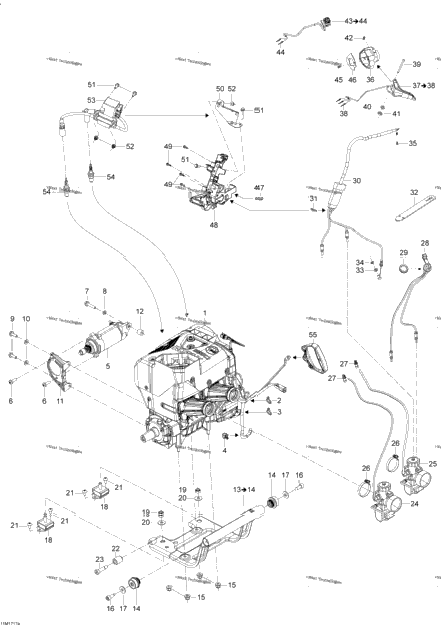

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| XXXX | Not Available As Spare Part - Engine 550 Model WT | ||
| XXXX | Not Available As Spare Part - Engine 550 (LCR) Model SWT | ||
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 1 | 515176795 | Tie Rap Mount (screwable) | 1 |
| 1 | 515178187 | Electric Starter | 1 |
| 2 | 250000752 | Torx Screw M8 X 1.25 X 25, Scotch Grip | 2 |
| 1 | 207584544 | Hex. Flange Screw M8 X 45, Scotch Grip | 1 |
| 1 | 250200008 | Flat Washer With Teflon 8 mm | 1 |
| 2 | 207582586 | Hex. Flange Screw M8 X 25, Scotch Grip | 2 |
| 2 | 234281474 | Conical Spring Washer M8 | 2 |
| 1 | 512060656 | Support | 1 |
| 1 | 515176597 | Spacer | 1 |
| 1 | 512060637 | ENGINE SUPPORT ASS'Y Includes 13 To 14 | 1 |
| 2 | 512059691 | Rubber Mount | 2 |
| 4 | 233201414 | Hex. Flange Elastic Nut M10 | 4 |
| 2 | 250000094 | Screw M10 X 30 | 2 |
| 2 | 250200014 | Flat Washer M10 | 2 |
| 2 | 512060564 | Rubber Mount | 2 |
| 2 | 232500416 | Elastic Stop Nut M10 | 2 |
| 4 | 250000746 | Torx Truss Screw M8 X 16 | 4 |
| 1 | 512060395 | Stopper | 1 |
| 1 | 250000463 | Socket Head Screw, Scotch Grip | 1 |
| 1 | 403138814 | Carburetor VM30-219, PTO | 1 |
| 1 | 403138813 | Carburetor VM30-218, MAG | 1 |
| 2 | 512059834 | Gemi Clamp | 2 |
| 2 | 414814100 | Male Connector | 2 |
| 1 | 512060676 | Choke Cable | 1 |
| 1 | 512060671 | Plastic Nut | 1 |
| 1 | 512060885 | Throttle Cable | 1 |
| 1 | 293850117 | Rubber Strap | 1 |
| 1 | 234081100 | Flat Washer 8 mm, Nylon | 1 |
| 1 | 414753500 | Circlip | 1 |
| 1 | 414274500 | Circlip | 1 |
| 1 | 512060603 | Throttle Housing | 1 |
| 1 | 512060307 | Handle Ass'y Includes 37 To 38 | 1 |
| 3 | 515175232 | Male Terminal | 3 |
| 1 | 414438700 | Lever Pin | 1 |
| 1 | 234051600 | Flat Washer M5, Stainless | 1 |
| 1 | 293370050 | Circlip | 1 |
| 2 | 414440800 | Socket Set Screw M8 X 10 | 2 |
| 1 | 515177362 | Emergency Stop Switch Includes 43 To 44 | 1 |
| 2 | 515175232 | Male Terminal | 2 |
| 1 | 250000756 | Torx Truss Screw M2 X 12 | 1 |
| 1 | 512060390 | Plate | 1 |
| 1 | 293100003 | Nut Welded, M6 | 1 |
| 1 | 512060924 | Coils Support | 1 |
| 4 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 | 4 |
| 1 | 512060460 | Coils Support | 1 |
| 4 | 207662044 | Hex. Flange Screw M6 X 20 | 4 |
| 3 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 3 |
| 1 | 512060324 | Calibrated Module | 1 |
| 2 | 512059552 | Spark Plug NGK BR9ECS-5 | 2 |
| 1 | 512060136 | Starter Grip | 1 |
| 508000884 | Heat Shield Model SWT |
