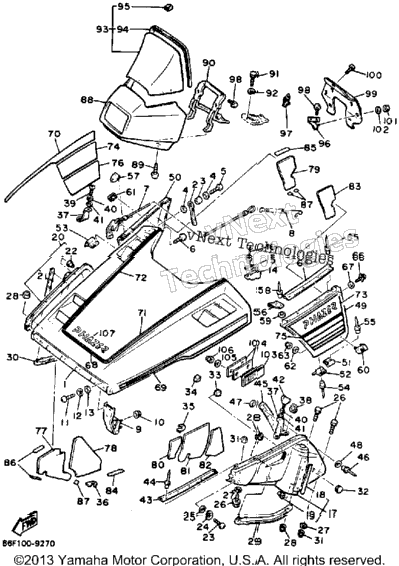

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 86F-W7714-00-00 | Shroud Assembly RASPBERRY RED | ||
| 2 | 8V0-77171-00-00 | Body, Latch 1 | 2 |
| 2 | 90387-06241-00 | Collar | 2 |
| 4 | 90201-06059-00 | Washer, Plate | 4 |
| 2 | 98906-06025-00 | Screw, Bind | 2 |
| 2 | 98906-06012-00 | Screw, Bind | 2 |
| 80L-77118-01-00 | Stopper, Shroud | ||
| 80L-77159-00-00 | Clamp, Rod | ||
| 87F-77140-00-00 | Hinge Assembly | ||
| 4 | 95701-06500-00 | Nut, With Washer | 4 |
| 4 | 98586-05016-00 | Screw, Pan Head | 4 |
| 4 | 92906-05100-00 | Washer, Spring | 4 |
| 4 | 92906-05200-00 | Washer | 4 |
| 8V0-77188-00-00 | Stopper | ||
| 2 | 8V0-77116-00-00 | Washer, Special | 2 |
| 4 | 90267-40029-00 | Rivet, Blind | 4 |
| 81H-21982-00-00 | Hood 1 | ||
| 81H-77141-00-00 | . Emblem 1 | ||
| 4 | 90183-04012-00 | . Nut, Spring | 4 |
| 81H-21983-00-00 | Hood 2 | ||
| 2 | 98586-05016-00 | Screw, Pan Head | 2 |
| 2 | 92906-05100-00 | Washer, Spring | 2 |
| 2 | 90201-05721-00 | Washer, Plate | 2 |
| 6 | 90119-06118-00 | Bolt, With Washer | 6 |
| 5 | 90201-06059-00 | Washer, Plate | 5 |
| 4 | 95706-06300-00 | Nut, Nylon | 4 |
| 8V0-21995-01-00 | Guard, Sub Frameframe Fr 1 | ||
| 8V0-21996-01-00 | Guard, Sub Frameframe Fr 2 | ||
| 90480-40382-00 | Grommet | ||
| 80L-77431-00-00 | Grommet 1 | ||
| 80L-77432-00-00 | Grommet 2 | ||
| 80L-7717E-00-00 | Tape 1 | ||
| 80L-7717F-00-00 | Tape 2 | ||
| 8V0-2196F-00-00 | Bracket 3 | ||
| 4 | 95701-05300-00 | Nut, Nylon | 4 |
| 1 | 98980-06016-00 | Screw, Bind | 1 |
| 2 | 90201-065F3-00 | Washer, Plate | 2 |
| 2 | 90202-06008-00 | Washer, Plate | 2 |
| 1 | 90122-06020-00 | Bolt, Wing | 1 |
| 8V0-77515-01-00 | Bush, Rubber 1 | ||
| 10 | 90269-05039-00 | Rivet | 10 |
| 8V0-2196T-00-00 | Trim 1 | ||
| 8 | 90267-40076-00 | Rivet, Blind | 8 |
| 8 | 90201-044A2-00 | Washer, Plate | 8 |
| 8 | 90201-047A2-00 | Washer, Plate | 8 |
| 80L-2197H-00-00 | Hood 3 | ||
| 80L-2198H-00-00 | Hood 4 | ||
| 8V0-2194X-00-00 | Bracket, 1 | ||
| 8V0-2195X-00-00 | Bracket 2 | ||
| 80L-2195X-00-00 | Bracket 2 | ||
| 8 | 90267-48059-00 | Rivet, Blind (4.8X12.3) | 8 |
| 8 | 90267-48057-00 | .Rivet, Blind | 8 |
| 8V0-77553-00-00 | Protector 3 | ||
| 8V0-77554-00-00 | Protector 4 | ||
| 4 | 90267-48053-00 | Rivet, Blind | 4 |
| 4 | 90201-04325-00 | Washer, Plate | 4 |
| 8V0-77551-00-00 | Protector 1 | ||
| 8V0-77552-00-00 | Protector 2 | ||
| 4 | 90201-05029-00 | Washer, Plate | 4 |
| 8V0-77516-01-00 | Bush, Rubber 2 | ||
| 8 | 90269-05039-00 | Rivet | 8 |
| 2 | 8V0-77175-00-00 | Holder, Latch | 2 |
| 2 | 4U5-2176E-00-00 | Plate | 2 |
| 86F-77281-00-00 | Stripe 1 | ||
| 86F-77282-00-00 | Stripe 2 | ||
| 86F-77283-00-00 | Stripe 3 | ||
| 86F-77284-00-00 | Stripe 4 | ||
| 86F-77285-00-00 | Stripe 5 | ||
| 86F-77353-00-00 | Emblem 3 | ||
| 86F-77354-00-00 | Emblem 4 | ||
| 86F-77355-00-00 | Emblem 5 | ||
| 86F-77356-00-00 | Emblem 6 | ||
| 8V0-77263-00-00 | Lining, Shroud 3 | ||
| 80L-77261-00-00 | Lining, Shroud 1 | ||
| 8V0-77266-00-00 | Lining, Shroud 6 | ||
| 8V0-77272-00-00 | Damper, Noise 12 | ||
| 8V0-77273-00-00 | Damper, Noise 13 | ||
| 8V0-77274-00-00 | Damper, Noise 14 | ||
| 8V0-77275-00-00 | Damper, Noise 15 | ||
| 2 | 8V0-7717E-00-00 | Tape 1 | 2 |
| 8V0-7717F-00-00 | Tape 2 | ||
| 2 | 8V0-7717G-00-00 | Tape 3 | 2 |
| 5 | 82M-7717G-00-00 | .Tape 3 | 5 |
| 86F-77231-00-00 | Fairing 1 | ||
| 2 | 98906-06010-00 | Screw, Bind | 2 |
| 8V0-77241-00-00 | Stay, Fairing | ||
| 3 | 97011-06025-00 | Bolt | 3 |
| 3 | 92995-06100-00 | Washer, Spring | 3 |
| 87F-77210-00-00 | Windshield Comp | ||
| 87S-77213-00-00 | . Trim, Upper | ||
| 80V-77223-00-00 | . Fastener | ||
| 8X9-77218-00-00 | Washer 1 | ||
| 8X9-77219-00-00 | Washer 2 | ||
| 6 | 90154-05023-00 | Screw, Binding | 6 |
| 8X9-77251-00-00 | Cover, Headlight | ||
| 1 | 90154-05005-00 | Screw, Binding | 1 |
| 2 | 90176-05059-00 | Nut, Crown | 2 |
| 2 | 90201-054K4-00 | Washer, Plate | 2 |
| 80E-85110-00-00 | Front Reflector Assembly | ||
| 80E-85115-00-00 | Base, Reflector | ||
| 92901-05600-00 | Washer | ||
| 86F-77142-00-00 | Emblem 2 |
