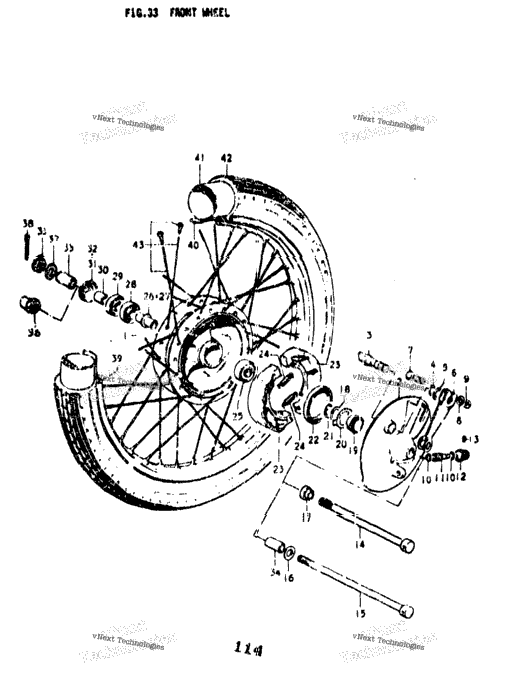

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 54110-28000 | DRUM, FRONT HUB K; TO 54110-28001 | ||
| 54110-28001 | DRUM, FRONT HUB L,M | ||
| 1 | 54110-07001 | DRUM, FRONT HUB A | 1 |
| 54110-16501 | DRUM, FRONT HUB B | ||
| 54210-28000 | PANEL, FRONT HUB K | ||
| 54210-27401 | PANEL, FRONT HUB L,M | ||
| 54210-28400 | PANEL, FRONT HUB A | ||
| 54210-28620 | PANEL, FRONT HUB B | ||
| 54441-28001 | SHAFT, BRAKE CAM K,L,M; FROM 54441-28000 | ||
| 1 | 54441-01002 | SHAFT, BRAKE CAM A,B | 1 |
| 1 | 09280-12001 | DUST SEAL, BRAKE CAM | 1 |
| 1 | 09160-12011 | WASHER (12.5X20X1.0) 12.5x20x1 | 1 |
| 54451-03602 | LEVER, BRAKE CAM K,L; TO 54451-03002 | ||
| 1 | 54451-03002 | LEVER, BRAKE CAM M | 1 |
| 54451-28400 | LEVER, BRAKE CAM A,B | ||
| 1 | 09100-06050 | BOLT 6x30 | 1 |
| 1 | 08322-21068 | WASHER | 1 |
| 1 | 08311-11068 | NUT | 1 |
| 2 | 09160-05001 | WASHER 5.1x9x0.4 | 2 |
| 54621-28000 | GEAR, SPEEDOMETER DRIVE | ||
| 1 | 54632-01001 | BUSHING, DRIVE GEAR OUTER | 1 |
| 1 | 09134-03101 | SCREW | 1 |
| 54711-07611 | AXLE, FRONT K | ||
| 54711-25501 | AXLE, FRONT L | ||
| 1 | 54711-16502 | AXLE, FRONT M | 1 |
| 54711-28303 | AXLE, FRONT A,B | ||
| 1 | 08322-21128 | WASHER M,A,B | 1 |
| 54751-25500 | SPACER, FRONT AXLE L L | ||
| 1 | 09160-18002 | WASHER @ 5x24x1 | 1 |
| 54611-28000 | GEAR, SPEEDOMETER DRIVEN K,L,M,A | ||
| 54611-28001 | GEAR, SPEEDOMETER DRIVEN B | ||
| 1 | 54661-07000 | DRIVER, DRIVEN GEAR | 1 |
| 08331-11189 | CIRCLIP | ||
| 1 | 09285-43001 | OIL SEAL, FRONT HUB PANEL K,L,M | 1 |
| 1 | 09285-48001 | OIL SEAL, FRONT HUB PANEL A,B | 1 |
| 2 | 54410-01004 | SHOE, BRAKE K,L; TO 54410-01005 | 2 |
| 2 | 54410-01005 | SHOE, BRAKE MA,B | 2 |
| 2 | 09443-07001 | SPRING | 2 |
| 1 | 08143-62010 | BEARING K,L,M | 1 |
| 1 | 08143-63010 | BEARING A,B | 1 |
| 1 | 09180-12041 | SPACER, FRONT HUB BEARING K,L,M; 12.6x10x52 | 1 |
| 54730-07000 | SPACER, FRONT HUB BEARING A,B | ||
| 1 | 08113-62010 | BEARING K,L,M | 1 |
| 1 | 08113-63010 | BEARING A,B | 1 |
| 1 | 09284-18002 | OIL SEAL, FRONT HUB K,M | 1 |
| 1 | 09284-18001 | OIL SEAL, FRONT HUB A,B | 1 |
| 1 | 09180-12040 | SPACER, FRONT AXLE K,A,B; 12x18x16.4 | 1 |
| 09180-12052 | SPACER, FRONT AXLE L,M; 12x18x10.4 | ||
| 54892-28000 | COVER, DUST SEAL K; TO 54892-28001 | ||
| 54892-25500 | COVER, DUST SEAL L,M | ||
| 54892-28400 | COVER, DUST SEAL A,B | ||
| 09180-12061 | SPACER, FRONT AXLE RH A,B; 12x20x44 | ||
| 09180-12062 | SPACER, FRONT AXLE M,A,B; 12x20x41 | ||
| 1 | 08314-31128 | NUT K,M,A,B | 1 |
| 54721-25500 | NUT L | ||
| 1 | 04111-30308 | COTTER PIN K,M,A,B | 1 |
| 55311-17021 | RIM, WHEEL K,L,M; 1.40x19 | ||
| 55311-17022 | RIM, WHEEL A,B | ||
| 1 | 55261-29010 | PROTECTOR, INNER TUBE 18x19 | 1 |
| 55200-29010 | TUBE, INNER 2.75-19 | ||
| 55100-25600 | TIRE, FRONT L,M,A,B; 2.75-19, OPT | ||
| 55100-25410 | TIRE, FRONT L; 2.75-19, OPT | ||
| 55300-28806 | SPOKE SET K,L,M | ||
| 55300-28840 | SPOKE SET A,BA,B |
