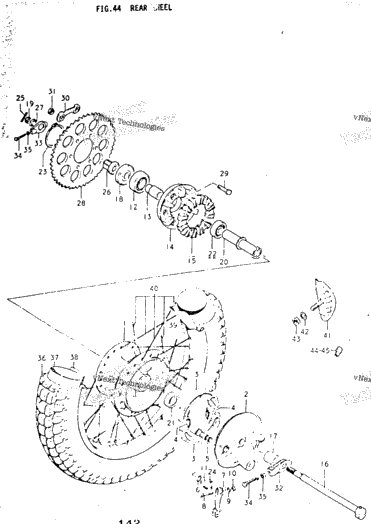

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 64110-28002 | HUB, REAR WHEEL K,L,M | ||
| 64110-28400 | HUB, REAR WHEEL A | ||
| 64110-28610 | HUB, REAR WHEEL B; BLACK | ||
| 64210-28003 | PANEL, HUB K,L,M; FROM 64210-25500 TO 64210-28004 | ||
| 64210-28004 | PANEL, HUB A | ||
| 64210-28305 | PANEL, HUB B; BLACK | ||
| 54410-07001 | SHOE, BRAKE K,L; TO 54410-07002 | ||
| 54410-07002 | SHOE, BRAKE M,A,B | ||
| 2 | 09443-07001 | SPRING, BRAKE SHOE | 2 |
| 54441-20000 | CAM, BRAKE K; TO 54441-28001 | ||
| 54441-07001 | CAM, BRAKE L | ||
| 1 | 54441-01002 | CAM, BRAKE M,A,B | 1 |
| 1 | 09280-12001 | DUST SEAL | 1 |
| 64451-28000 | LEVER, BRAKE CAM K,L,M | ||
| 64451-28600 | LEVER, BRAKE CAM A,B | ||
| 1 | 09100-06050 | BOLT, CAM LEVER | 1 |
| 1 | 08322-21068 | WASHER | 1 |
| 1 | 08311-11068 | NUT | 1 |
| 1 | 09160-12011 | WASHER (12.5X20X1.0) | 1 |
| 1 | 08123-62040 | BEARING A,B | 1 |
| 64733-28400 | RETAINER, DRUM A,B | ||
| 64610-28001 | DRUM, SPROCKET MOUNTING K,L,M | ||
| 64611-28400 | DRUM, SPROCKET MOUNTING A | ||
| 64611-28600 | DRUM, SPROCKET MOUNTING B | ||
| 64650-28001 | ABSORBER, HUB DRUM K,L; TO 64650-28002 | ||
| 64650-28002 | ABSORBER, HUB DRUM M | ||
| 64650-28400 | ABSORBER, HUB DRUM A,B | ||
| 64711-28000 | AXLE, REAR K; TO 64711-28001 | ||
| 64711-28001 | AXLE, REAR L,M,A,B | ||
| 1 | 09180-15010 | SPACER, REAR AXLE RH K,L,M; TO 09180-15038 | 1 |
| 1 | 09180-15038 | SPACER, REAR AXLE RH A,B | 1 |
| 64750-28000 | SPACER, REAR AXLE LH K,L,M | ||
| 64750-28400 | SPACER, REAR AXLE LH A,B | ||
| 1 | 08314-31128 | NUT | 1 |
| 64730-28000 | SPACER, BEARING K,L,M; FROM 64730-38000 | ||
| 09180-15039 | SPACER, BEARING A,B | ||
| 1 | 08143-62020 | BEARING K,L,MA,B | 1 |
| 1 | 08123-63020 | BEARING K,L,M | 1 |
| 1 | 08331-11558 | CIRCLIP K,L,M | 1 |
| 09448-27003 | SPRING, CAM LEVER | ||
| 1 | 04111-30308 | COTTER PIN | 1 |
| 1 | 64791-28001 | SPACER, CHAIN ADJUSTER L,M,A,B; L:27 | 1 |
| 64791-28000 | SPACER, CHAIN ADJUSTER K; L:25 | ||
| 1 | 09140-18001 | NUT, CHAIN ADJUSTER SPACER K,L,M,A | 1 |
| 1 | 09140-18005 | NUT, CHAIN ADJUSTER SPACER B | 1 |
| 64511-29720 | SPROCKET, REAR NT:37 | ||
| 6 | 09105-08001 | BOLT, SPROCKET K,L | 6 |
| 09105-08006 | BOLT, SPROCKET M | ||
| 09105-08007 | BOLT, SPROCKET A,B | ||
| 3 | 09169-08013 | WASHER, REAR SPROCKET | 3 |
| 6 | 08312-11088 | NUT | 6 |
| 1 | 61410-28002 | ADJUSTER, CHAIN RH L,M,A,B; 8SCREW | 1 |
| 61410-28001 | ADJUSTER, CHAIN RH K; 6SCREW | ||
| 1 | 61420-28002 | ADJUSTER, CHAIN LH L,M,A,B; 8SCREW | 1 |
| 61420-28001 | ADJUSTER, CHAIN LH K; 6SCREW | ||
| 2 | 09100-08099 | BOLT, CHAIN ADJUSTER L,M,A,B; 8x40 | 2 |
| 2 | 09100-06065 | BOLT, CHAIN ADJUSTER K; 6x37 | 2 |
| 2 | 08312-11088 | NUT L,M,A,B | 2 |
| 2 | 08311-11068 | NUT K | 2 |
| 65100-28211 | TIRE, REAR K; 3.25-18 KNOBBY | ||
| 65100-28610 | TIRE, REAR L,M,A,B; 3.25-18 | ||
| 1 | 65200-18010 | TUBE, INNER 3.25-18 | 1 |
| 1 | 55261-11010 | PROTECTOR, INNER TUBE K | 1 |
| 65261-28030 | PROTECTOR, INNER TUBE L,M,A | ||
| 1 | 65261-11010 | PROTECTOR, INNER TUBE B | 1 |
| 65311-29601 | RIM, REAR WHEEL K,L; BOLD-TIPPED TYPE | ||
| 65311-29602 | RIM, REAR WHEEL L; STRAIGHT TYPE | ||
| 65311-29022 | RIM, REAR WHEEL M,A,B | ||
| 65300-28807 | SPOKE SET, REAR K,L; BOLD-TIPPED TYPE | ||
| 1 | 65300-28880 | SPOKE SET, REAR L,M,A,B; STRAIGHT TYPE | 1 |
| 1 | 65270-28600 | STOPPER, BEAD K,L | 1 |
| 1 | 08322-11088 | WASHER K,L | 1 |
| 1 | 08312-11088 | NUT K,L | 1 |
| 1 | 55412-11000 | BALANCER, WHEEL K,L; 30G BOLD-TIPPED TYPE | 1 |
| 55412-37000 | BALANCER, WHEEL L; 30G | ||
| 55411-28000 | BALANCER, WHEEL K,L; 50G BOLD-TIPPED TYPE | ||
| 55411-30000 | BALANCER, WHEEL L; 50G STRAIGHT TYPE |
